The Bosch Rexroth DB6DPW7-1X/160V (0811105219) is a direct operated pressure relief valve designed for subplate mounting and is essential for regulating system pressure in hydraulic systems. The valve operates by utilizing a main valve with a spool insert and an adjustable pressure element to maintain desired pressure levels. When the pressure in channel P surpasses the preset value of the spring, the poppet opens, allowing the main spool to move against the spring's resistance. This action permits hydraulic fluid to flow from channel P to T through the control edge, effectively relieving excess pressure. The DB6DPW7-1X/160V model offers three options for adjusting the pressure: a sleeve with an internal hexagon, a lockable rotary knob with a scale, and a non-lockable rotary knob with a scale. These adjustment elements provide flexibility and precision for setting the system's pressure according to specific requirements. The versatility of this Bosch relief valve makes it suitable for various applications where reliable pressure management is critical. Its robust design ensures consistent performance and longevity in maintaining system safety and efficiency.

General

Pressure valves of type DB 6 D are direct operated pressure relief valves.

They are used for limiting the system pressure.

The pressure relief valves basically consist of the main valve (1) with main spool insert (2) and the pressure adjustment element (3).

The pressure applied to channel P acts on the main spool (2).

If the pressure in channel P exceeds the value set at the spring (5), the poppet (4) opens against the spring (5) and the main spool (2) is free to move accordingly against the spring. So hydraulic fluid flows over the control edge (6) out of channel P to T.

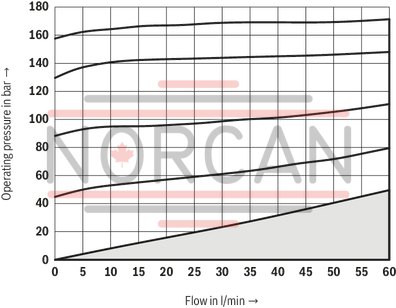

technical illustration-0811105219-For subplate mounting 3 pressure-adjustment elements, optionally:<br>
• Sleeve with internal hexagon<br>
• Rotary knob, lockable, with scale<br>
• Rotary knob with scale

01	02	03	04	05	06		07		08	09	10	11
DB	6	D		W		–	1X	/		V		*

01	Pressure relief valve	DB
02	Size 6	6
03	direct operated	D
04	Pressure limitation in channel P	P
04	Pressure limitation in channel P and B	PB
05	Connection porting pattern according to ISO 6264	W
Adjustment elements
06	Sleeve with internal hexagon	2
	Rotary knob, lockable, with scale 1)	3
	Rotary knob with scale	7
07	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
08	max. adjustable pressure	80
	max. adjustable pressure	160
	max. adjustable pressure	315
09	FPM seals (other seals upon request)	V
09	Observe compatibility of seals with hydraulic fluid used.
10	Adjustment, horizontal	no code
10	Adjustment, vertical	W65
11	Further details in the plain text	*

	1) 2H key is included in the scope of delivery

general

Size			6
Weight	horizontal	kg	1.4
Weight	Vertical	kg	1.1
Installation position			any
Ambient temperature range		°C	-25 … +50
Anschlussart			Plate connection, porting pattern NG6, ISO 6264

hydraulic

Size		6
Maximum operating pressure	bar	315
Maximum set pressure	bar	80 160 315
Maximum flow	l/min	60
Hydraulic fluid		see table
Hydraulic fluid temperature range	°C	-25 … +80
Seals		FPM (Viton® Dupont)
Viscosity range	mm²/s	10 … 500
Maximum admissible degree of contamination of the hydraulic fluid 1)		Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oil		HL, HLP	FKM, NBR	DIN 51524
Bio-degradable	Insoluble in water	HEES (synthetic esters)	FKM	VDMA 24568
	Insoluble in water	HETG (rape seed oil)	FKM, NBR	VDMA 24568
	Soluble in water	HEPG (polyglycols)	FKM	VDMA 24568
Other hydraulic fluids on request
