BOSCH REXROTH
0811402076
$4,104.95 USD
- BOSCH REXROTH
- Material:0811402076
- Model:DBEBE6X-1X/315G24K31A1M
Quantity in stock: 0

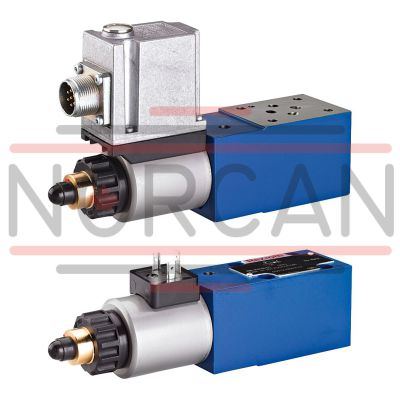

The Bosch Rexroth DBEBE6X-1X/315G24K31A1M (0811402076) is a high-performance industrial hydraulic valve designed for system pressure limitation. This size 6 proportional pressure relief valve is pilot-operated and features integrated electronics, operating on a 24 V DC power supply. The valve is characterized by its ability to provide reliable pressure relief in response to a command value signal. Proportional pressure relief valves like the DBEBE6X-1X/315G24K31A1M are designed with a position-controlled proportional solenoid that ensures precise control over the system's pressure limits. The position feedback functionality and the integrated electronics allow for short actuating times and minimal hysteresis, which is less than 1%. This results in a highly responsive valve that can quickly adjust to changing conditions within the hydraulic system. The pilot-operated design of this valve ensures that it operates on pilot oil internally, with no external pilot oil supply required. It can be adjusted through the positioning of the solenoid armature relative to the compression spring, allowing for maximum customization of pressure settings according to specific application needs. Designed for subplate mounting, this Bosch valve conforms to the porting pattern outlined in ISO 4401 standards, ensuring compatibility with various hydraulic systems and ease of installation. Its robust construction allows it to maintain maximum pressure limitation even in scenarios where electronics may become defective, highlighting its reliability and safety features.
Size 6, P → T, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.
Unpacked Weight: 3.5 kg
Proportional pressure relief valves of type DBEBE6X are pilot control valves used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. Using these valves, short actuating times with low hysteresis can be achieved.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Size 6 |
| Volume flow, max. 40 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → T |
| Max. pressure | 315 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.5 |
| Seals | NBR |
| Connectivity | Analog, command value 0 … 10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
||
|
DBEB |
E |
6 |
X |
– |
1X |
/ |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure relief valve with inductive position transducer at the poppet |
DBEB |
|
02 |
With integrated electronics |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 80 bar |
80 |
|
Up to 180 bar |
180 |
|
|
Up to 315 bar |
315 |
|
|
Supply voltage of the control electronics |
||
|
07 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
08 |
Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order |
K31 |
|
Control electronics interface |
||
|
09 |
Command value input 0 ... +10 V |
A1 |
|
Command value input 4 to 20 mA / actual value output 4 to 20 mA |
F1 |
|
|
10 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
11 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBEBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
3.4 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Port P |
bar |
315 | |
|
Port T |
bar |
250 | |
|
Maximum set pressure |
Pressure rating 25 bar |
bar |
315 |
|
Maximum flow |
l/min |
40 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
preferably |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
|
Type |
DBEBE6X | |
|
Duty cycle |
% |
100 |
|
Power supply |
V |
24 |
|
Supply voltage range |
V |
21 … 40 |
|
Protection class according to DIN EN 60529 |
IP65 | |
