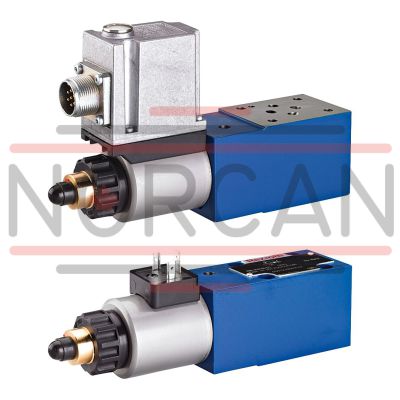

The Bosch Rexroth DBEBE6X-1X/180G24K31A1M (0811402077) is a state-of-the-art industrial hydraulic valve designed for efficient system pressure limitation. This size 6, P → T valve features integrated electronics and operates on a 24 V DC power supply. As a component of the series 1X, it represents the latest in proportional pressure relief valve technology. Proportional pressure relief valves like the DBEBE6X are pilot-operated and utilize a position-controlled proportional solenoid to achieve precise control over system pressures. The integrated electronics ensure that the valve responds accurately to command value signals, providing reliable performance for critical applications. The design of this valve includes position feedback, which contributes to its capability of maintaining minimum hysteresis (less than 1%) and ensures short actuating times. This high level of precision ensures maximum pressure limitation even in scenarios where the electronics might be compromised. Suitable for subplate mounting, this Bosch valve adheres to the porting pattern set by ISO 4401 standards. Its robust construction and advanced control features make it an essential component for applications requiring precise pressure relief and fast response times. The integrated approach combining solenoid actuation with electronic control positions this valve as an ideal solution for modern hydraulic systems seeking both reliability and performance.
Size 6, P → T, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.
Unpacked Weight: 3.50234 kg
Proportional pressure relief valves of type DBEBE6X are pilot control valves used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. Using these valves, short actuating times with low hysteresis can be achieved.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Size 6 |
| Volume flow, max. 40 l/min |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → T |
| Max. pressure | 315 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.50234 |
| Seals | NBR |
| Connectivity | Analog, command value 0 … 10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
||
|
DBEB |
E |
6 |
X |
– |
1X |
/ |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure relief valve with inductive position transducer at the poppet |
DBEB |
|
02 |
With integrated electronics |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 80 bar |
80 |
|
Up to 180 bar |
180 |
|
|
Up to 315 bar |
315 |
|
|
Supply voltage of the control electronics |
||
|
07 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
08 |
Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order |
K31 |
|
Control electronics interface |
||
|
09 |
Command value input 0 ... +10 V |
A1 |
|
Command value input 4 to 20 mA / actual value output 4 to 20 mA |
F1 |
|
|
10 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
11 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBEBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
3.4 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Port P |
bar |
315 | |
|
Port T |
bar |
250 | |
|
Maximum set pressure |
Pressure rating 25 bar |
bar |
315 |
|
Maximum flow |
l/min |
40 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
preferably |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
|
Type |
DBEBE6X | |
|
Duty cycle |
% |
100 |
|
Power supply |
V |
24 |
|
Supply voltage range |
V |
21 … 40 |
|
Protection class according to DIN EN 60529 |
IP65 | |
