BOSCH REXROTH
0811402079
$4,104.95 USD
- BOSCH REXROTH
- Material:0811402079
- Model:DBEBE6X-1X/180G24K31F1M
Quantity in stock: 0

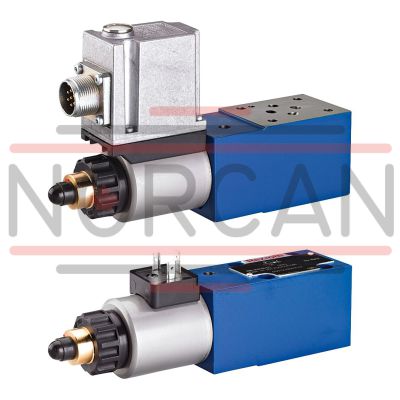

The Bosch Rexroth DBEBE6X-1X/180G24K31F1M (0811402079) is a high-performance industrial hydraulic valve designed for system pressure limitation. This component series 1X valve is pilot-operated and features a position-controlled proportional solenoid with integrated electronics, ensuring precise control over pressure relief operations. The DBEBE6X-1X/180G24K31F1M valve is engineered to provide reliable performance with minimal hysteresis, less than 1%, and rapid actuating times. Specifically tailored for subplate mounting, the valve adheres to the ISO 4401 porting pattern standards. The adjustable nature of the valve comes from the position of the solenoid armature in relation to the compression spring, which allows for fine-tuning of its operation according to specific command value signals. Furthermore, this model ensures maximum pressure limitation capabilities even in scenarios where the electronics may become defective, highlighting its robust safety features. The integrated electronics within the solenoid not only simplify installation but also enhance the valve's responsiveness and accuracy in controlling pilot oil for internal system pressure limitation. This makes the Bosch DBEBE6X-1X/180G24K31F1M an essential component for applications requiring precise control of hydraulic pressures within complex systems.
Size 6, P → T, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.
Unpacked Weight: 3.5 kg
Proportional pressure relief valves of type DBEBE6X are pilot control valves used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. Using these valves, short actuating times with low hysteresis can be achieved.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Size 6 |
| Volume flow, max. 40 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → T |
| Max. pressure | 315 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.5 |
| Seals | NBR |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
||
|
DBEB |
E |
6 |
X |
– |
1X |
/ |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure relief valve with inductive position transducer at the poppet |
DBEB |
|
02 |
With integrated electronics |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 80 bar |
80 |
|
Up to 180 bar |
180 |
|
|
Up to 315 bar |
315 |
|
|
Supply voltage of the control electronics |
||
|
07 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
08 |
Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order |
K31 |
|
Control electronics interface |
||
|
09 |
Command value input 0 ... +10 V |
A1 |
|
Command value input 4 to 20 mA / actual value output 4 to 20 mA |
F1 |
|
|
10 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
11 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBEBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
3.4 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Port P |
bar |
315 | |
|
Port T |
bar |
250 | |
|
Maximum set pressure |
Pressure rating 25 bar |
bar |
315 |
|
Maximum flow |
l/min |
40 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
preferably |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
|
Type |
DBEBE6X | |
|
Duty cycle |
% |
100 |
|
Power supply |
V |
24 |
|
Supply voltage range |
V |
21 … 40 |
|
Protection class according to DIN EN 60529 |
IP65 | |
