BOSCH REXROTH
0811402083
$4,874.26 USD
- BOSCH REXROTH
- Material:0811402083
- Model:DREBE6X-1X/175MG24K31F1M
Quantity in stock: 0

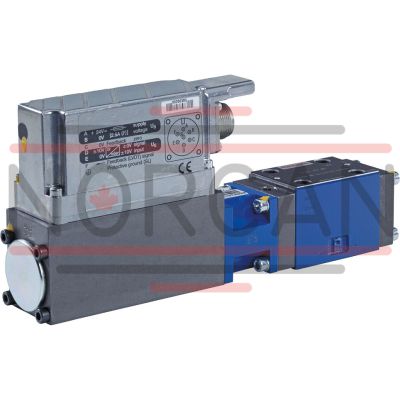

The Bosch Rexroth DREBE6X-1X/175MG24K31F1M (0811402083) is a high-performance industrial hydraulic valve designed for efficient pressure reduction in hydraulic systems. This proportional pressure reducing valve is pilot-operated, with its main stage being a 3-way version, ensuring reliable control over the pressure to the actuator. It features an innovative pilot control valve with a flow-controlled internal pilot oil supply via port P, which is regulated by a position-controlled proportional solenoid boasting integrated electronics. The DREBE6X-1X/175MG24K31F1M allows for seamless adjustment of the actuator's pressure (port A) based on the command value signal, providing stepless pressure reduction capabilities. Due to its position feedback and integrated electronic components, this valve offers precision control with minimal hysteresis of less than 1% and swift actuating times, which are crucial for applications requiring exact pressure modulation. One of the key safety features of this Bosch valve is its maximum pressure limitation which remains effective even in the event of electronic component failure. Engineered for subplate mounting, it adheres to the ISO 4401 porting pattern standard, facilitating easy installation and compatibility within various hydraulic systems. This combination of advanced control technology and robust safety features makes the Bosch DREBE6X-1X/175MG24K31F1M an essential component for sophisticated hydraulic applications demanding precise pressure management.
Size 6, P → A, electrical with integrated electronics, 24 VDC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 3.68 kg
Proportional pressure reducing valves of type DREBE6X are pilot-operated; the main stage is a 3-way version. The pilot control valve (DBV pilot valve) has a flow-controlled internal pilot oil supply via P. It is actuated by a position-controlled proportional solenoid with integrated electronics. Dependent on the command value, the pressure in A (actuator) can be steplessly set and reduced using these valves.
| Spool valve |
| Pilot-operated |
| Size 6 |
| Volume flow, max. 40 l/min |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → A |
| Max. pressure | 315 |
| Electrical connection description | Connector according to DIN 43563-AM6 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 3 |
| Type of actuation | Electrical with integrated electronics |
| Conformity description | CE – according to EMC Directive 2014/30/EU |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.68 |
| Seals | NBR |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Conformity | CE |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
||
|
DREB |
E |
6 |
X |
– |
1X |
/ |
M |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure reducing valve in 3-way version with inductive position transducer, pilot-operated |
DREB |
|
02 |
With integrated electronics (OBE) |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 75 bar |
75 |
|
Up to 175 bar |
175 |
|
|
Up to 310 bar |
310 |
|
|
07 |
Without check valve |
M |
|
Supply voltage of the control electronics |
||
|
08 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
09 |
Connector according to DIN 43563-AM6 |
K31 |
|
Electrical interface |
||
|
10 |
Command value 0 … 10 V |
A1 |
|
Command value 4 to 20 mA |
F1 |
|
|
11 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DREBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Weight |
kg |
3.3 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Type |
DREBE6X | ||
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Maximum operating pressure |
Port P |
bar |
315 |
|
Port T |
bar |
250 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Maximum flow |
l/min |
40 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis 2) |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve 2) |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Of the maximum set pressure |
electrical
|
Type |
DREBE6X | ||
|
Power supply |
Nominal voltage |
V |
24 |
|
Lower limit value |
V |
21 | |
|
Upper limit value |
V |
40 | |
|
Duty cycle |
% |
100 | |
|
Protection class according to DIN EN 60529 |
IP65 | ||
|
Conformity |
CE conformity according to EMC directive 2004/108/EC tested according to EN 61000-6-2 and EN 61000-6-3 | ||
