BOSCH REXROTH
0811402116
$5,057.94 USD
- BOSCH REXROTH
- Material:0811402116
- Model:DBEBE10Z-1X/180XYG24K31A1M
Quantity in stock: 0

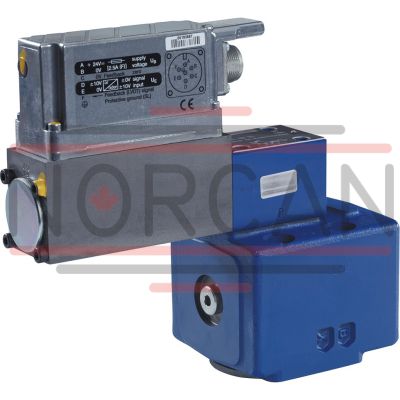

The Bosch Rexroth DBEBE10Z-1X/315XYG24K31A1M (0811402116) is a high-performance industrial hydraulic valve designed for precise system pressure limitation. This size 10 valve features integrated electronics and operates on a 24 V DC power supply. It is a pilot-operated proportional pressure relief valve that incorporates a position-controlled proportional solenoid to regulate pressure effectively. The DBEBE10Z-1X/315XYG24K31A1M valve is equipped with a logic element in the form of a seat valve in its "normally closed" version, ensuring reliable operation when the system requires pressure relief to the command value signal. The pilot-operated design includes a poppet seat version which enhances the valve's responsiveness and stability. One of the key capabilities of this Bosch valve is its position feedback mechanism, which allows for adjustable control via the solenoid armature's position relative to the compression spring. This feature ensures minimum hysteresis, less than 1%, and short actuating times, which are critical for applications requiring rapid response and precise pressure control. Designed for maximum safety, this model maintains pressure limitation even in the event of electronic failures. It's suitable for subplate mounting and follows the porting pattern according to ISO 5781-AG-06-2-A standards, allowing for easy integration into various hydraulic systems without compatibility issues. In summary, the Bosch DBEBE10Z-1X/315XYG24K31A1M offers robust performance and reliable pressure management in industrial settings where precision and safety are paramount. Its advanced features like integrated electronics, minimal hysteresis, and compliance with international standards make it an ideal choice for sophisticated hydraulic applications.
Size 10, A → B, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.
Unpacked Weight: 7.72 kg
Proportional pressure relief valves of type DBEBE10Z are pilot-operated pressure relief valves and are used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. A logic element (seat valve) is located in the valve housing in the “normally closed” version, pilot-operated in poppet seat version.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Size 10 |
| Operating pressure, max. 315 bar |
| Volume flow, max. 120 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A → B |
| Max. pressure | 315 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with integrated electronics |
| Size | 10 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 120 |
| Type of connection | Subplate mounting |
| Connection diagram | ISO 5781-AG-06-2-A |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 7.72 |
| Seals | NBR |
| Connectivity | Analog, command value 0 … 10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
||
|
DBEB |
E |
10 |
Z |
– |
1X |
/ |
XY |
G24 |
K31 |
A1 |
M |
* |
|
01 |
Proportional pressure relief valve with inductive position transducer at the poppet |
DBEB |
|
02 |
With integrated electronics |
E |
|
03 |
Size |
10 |
|
04 |
Porting pattern according to ISO 5781-AG-06-2-A |
Z |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 180 bar |
180 |
|
Up to 315 bar |
315 |
|
|
07 |
Bleed port X, pilot oil port Y |
XY |
|
Supply voltage of the control electronics |
||
|
08 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
09 |
Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order |
K31 |
|
Control electronics interface |
||
|
10 |
Command value input 0 ... +10 V |
A1 |
|
11 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBEBE10Z | |
|
Size |
10 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
7.8 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
10 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Port X 1) |
bar |
315 | |
|
Port Y 2) |
bar |
2 | |
|
Maximum set pressure |
Pressure rating 25 bar |
bar |
315 |
|
Maximum flow |
l/min |
120 | |
|
Pilot flow |
l/min |
≤ 0.8 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
preferably |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing |
% |
< ± 5 | |
| 1) | Bleed port |
| 2) | Pilot oil return, external |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
|
Type |
DBEBE10Z | |
|
Duty cycle |
% |
100 |
|
Power supply |
V |
24 |
|
Supply voltage range |
V |
21 … 40 |
|
Protection class according to DIN EN 60529 |
IP65 | |
(measured with HLP46, ϑOil = 40 ±5 °C)
|
Size |
10 |
