BOSCH REXROTH
0811404765

BOSCH REXROTH
Material:0811404765
Model:4WRPEH10CB50L-2X/G24K0/F1M

Due to extremely high demand, please call 877-366-7226 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRPEH10CB50L-2X/G24K0/F1M (0811404765) is a high-response directional valve characterized by its precision and reliability in electro-hydraulic control systems. This direct operated valve features a control spool and sleeve of servo quality, ensuring smooth and accurate operation. Designed with integrated electronics, the valve is capable of comparing the command value with the actual position value to correct any control deviations by activating the stroke solenoid. This action proportionally adjusts the control spool against the spring based on the command value received. The valve's switch-off behavior is designed for safety; it moves into a fail-safe position when electronics are turned off, passing through P–B/A–T positions that could lead to movements in the controlled component—a critical design consideration for system integration. This model includes an electric position feedback mechanism and factory-calibrated integrated electronics (OBE), which enhances its performance consistency. The electrical connection is a 6P+PE type, and it accepts signal input through either an "A1" ±10 V interface or an "F1" 4…20 mA interface with a resistance of 200 Ω. Bosch's 4WRPEH10CB50L-2X/G24K0/F1M valve is particularly suitable for use in production and test systems where precise electro-hydraulic controls are essential. Its one-sided operation and 4/4 fail-safe position ensure that it maintains functionality even in switched-off conditions, making it a robust component for various applications requiring meticulous hydraulic management.

General information

In the integrated electronics, the specified command value is compared with the position actual value. In case of control deviations, the stroke solenoid will be activated which - due to the changed magnetic force - adjusts the control spool against the spring.

Stroke/control cross-section is controlled proportionally to the command value. In case of a command value presetting of 0 V, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the valve is in fail-safe position.

Switch-off behavior

With switched-off electronics, the valve will immediately move into the relevant secured basic position (fail-safe). In this connection, it moves through the position P–B/A–T which may result in movements at the controlled component. This has to be considered in the system design.

technical illustration-0811404765-High-response directional valve, direct operated, with control spool and sleeve in servo quality Operated on one side, 4/4 fail-safe position in switched-off condition Electric position feedback and integrated electronics (OBE), calibrated in the factory Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω) Use for electro-hydraulic controls in production and test systems

1	Control solenoid with position transducer
2	Valve body
3	Mating connector

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03	With integrated electronics	E
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

For applications outside these parameters, please consult us!

general

Type		4WRPEH
Size		10
Component series		2X
Design		Directional spool valve, direct operated, with steel sleeve
Type of actuation		Proportional solenoid with position control, OBE
Type of connection		Plate connection, porting pattern according to ISO 4401
Installation position		Any
Weight	kg	7.1
Ambient temperature range	°C	-20 … +50
Maximum vibration resistance	g	25

hydraulic

Type			4WRPEH
Size			10
Maximum operating pressure		bar	315
Maximum operating pressure	Port P	bar	315
	Port A	bar	315
	Port B	bar	315
	Port T	bar	250
Nominal flow		l/min	50 100
Hydraulic fluid temperature range		°C	-20 … +70
Viscosity range	Maximum admissible	mm²/s	10 … 800
Viscosity range	Recommended	mm²/s	20 … 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 18/16/13 according to ISO 4406 (c)
Hysteresis		%	≤ 0.2
Manufacturing tolerance		%	< 10
Actuating time	Signal step 0 … 100%	ms	25
Temperature drift		%	< 1

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

hydraulic

Nominal flow 1)		l/min	50	100	50	100
Limitation of use	Symbols C, C3, C5	bar	315	160	315	160
Limitation of use	Symbols C1, C4	bar	250	100	250	100
Zero flow	Linear characteristic curve “L”	l/min	< 1.2	< 1.5	< 1.2	< 1
Zero flow	Inflected characteristic curve "P"	l/min	< 0.05	< 0.1	< 0.05	< 0.1

1)	With Δp = 35 bar/control edge

Hydraulic fluid	Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons	HL, HLP	NBR / FKM	DIN 51524
For more information and data on the use of other hydraulic fluids please contact us.

electrical

Type			4WRPEH
Size			10
Power supply	Nominal voltage	V	24
	Lower limit value	V	21
	Upper limit value	V	40
Duty cycle		%	100
Required fuse protection			2.5 AF
Maximum power consumption		VA	60
Protection class according to DIN EN 60529			IP65 (with mating connector mounted and locked)
EMC (electro-magnetic compatibility)			CE conformity according to EMC directive 2004/108/EC tested according to EN 61000-6-2 and EN 61000-6-3

Fail-safe position

Fail-safe position
C Flow at Δp = 35 bar per edge	l/min	50	50	100	100
C3, C5	cm3/min	50 P-A
Zero flow at 100 bar	cm3/min	70 P-B
C3, C5	l/min	10 ... 100 A-T
Flow at Δp = 35 bar per edge	l/min	10 ... 25 B-T
C4, C1	cm3/min	50 P-A
Zero flow at 100 bar	cm3/min	70 P-B
	cm3/min	70 A-T
	cm3/min	50 B-T
Achievement of the fail-safe position	0 bar	12 ms
	100 bar	16 ms

(measured with HLP46, ϑÖl = 40 ±5 °C)

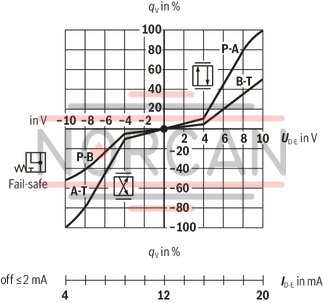

Flow characteristics L: Linear 1:1

Flow characteristics L: Linear 2:1

Flow characteristics P: (Inflection 40%) 1:1

Flow characteristics P: (Inflection 40%) 2:1

Pressure amplification

Frequency response

Symbols

With control symbol C1 and C5, the following applies:
P → A: qvmax	B → T: qv/2
P → B: qv/2	A → T: qvmax

Installation side of the inductive position transducer

Version A1: Standard

Version F1: mA signal

1	Control system
2	On the customer side
3	Mating connector
4	Valve
5	Connection surface
6	On the Rexroth side

Version	Multi-wire cable
	Litz wire structure, finely stranded according to VDE 0295, class 6
	Protective earthing conductor, green-yellow
	Cu shielding braid
Type	e.g. oilflex-FD 855 CP (Lappkabel)
Number of wires	Is determined by valve type, connector type and signal assignment
Line diameter	0,75 mm2 ... 20 m length 1 mm2 ... 40 m length
External diameter	9,4 ... 11,8 mm - Pg11 12,7 ... 13,5 mm - Pg16

Notice:

Supply voltage 24 VDCnom, if 18 VDC are undershot, there will be an internal fast shut-down, comparable to “Enable OFF”.

Additionally with version “F1”:

ID – E ≥ 3 mA – Valve is active

ID – E ≤ 2 mA – Valve is deactivated.

Electrical signals provided via control electronics (e. g. actual value) must not be used to switch off safety-relevant machine functions. (See also the European standard "Safety requirements for fluid-powered systems and their components - Hydraulics", EN 982!)

Block diagram / pin assignment version A1

Pin assignment 6P+PE; version "A1"

Block diagram / pin assignment version F1

Pin assignment 6P+PE; version "F1"

Dimensions in mm

1	Valve housing
2	Integrated electronics (OBE)
3	Identical seal rings for ports A, B, P and T (T1)
4	Mating connector, separate order
5	Control solenoid with position transducer
6	Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05 Deviating from the standard: - Ports P, A, B, T and T1 with Ø10.5 mm
Subplates must be ordered separately

Valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-N67F82170

Tightening torque MA = 11 + 3 Nm , material no. 2910151209

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9
