BOSCH REXROTH
0811405060
$1,439.99 USD
- BOSCH REXROTH
- Material:0811405060
- Model:VT-VRRA1-527-20/V0
Quantity in stock: 0

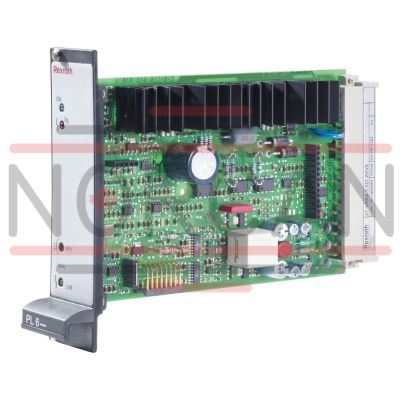

The Bosch Rexroth VT-VRRA 1-527-20/V0 (0811405060) is a valve amplifier designed for precise control of Bosch's type 4WRPH6…L-2x proportional control valves. This component, which belongs to the series 2X, is tailored for applications requiring quick installation and efficient operation. It features a command value input ranging from 0 to 10 V, enabling seamless integration into various control systems. The unit boasts a controlled output stage with closed-loop position control incorporating PID characteristics, ensuring accurate and responsive valve actuation. This capability is further enhanced by the amplifier's fast energization and deletion functions, which contribute to short actuating times critical in dynamic systems. Safety and reliability are also core aspects of the VT-VRRA 1-527-20/V0's design. It includes an enable input for controlled operation, as well as short-circuit-proof outputs that protect against electrical malfunctions. Additionally, the zero point can be adjusted according to system requirements, offering flexibility during setup or maintenance procedures. Moreover, the device incorporates cable break detection specifically for the actual value cable, which adds an extra layer of monitoring to maintain system integrity. This feature helps in early identification of potential issues that could compromise performance or lead to downtime. Overall, the Bosch VT-VRRA 1-527-20/V0 valve amplifier is a robust and versatile component engineered to facilitate precise control of solenoid-operated valves with position feedback in demanding applications where rapid response and high reliability are paramount.
Valve amplifier for high-response valves with 1 solenoid
Adjusted to valves. Short commissioning time.
Unpacked Weight: 0.35233 kg
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Electrical connection description | for card holder or 19" racks |
| Productgroup ID | 9,10,11,12,13,14 |
| Electrical connector | 32-pin connector plug, form F |
| Supply voltage | 24 VDC |
| Design | Printed circuit board |
| Weight | 0.35233 |
| Connectivity | Analog, command value 0 … 10 V |
|
01 |
Valve amplifier for high-response valves with one solenoid, analog, euro-card format |
VT-VRRA1 |
|
02 |
For valves: 4WRPH 6…L-2X |
527 |
|
03 |
Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) |
1X |
|
04 |
Version: standard |
V0 |
|
01 |
02 |
03 |
04 |
|||
|
VT-VRRA1 |
‒ |
527 |
‒ |
2X |
/ |
V0 |
General
|
Component series |
2X | ||
|
Material number |
Data sheet |
1819929035 | |
|
Type of electronics |
Analog | ||
|
Design |
Euro-card | ||
Voltage supply
|
Operating voltage |
nominal |
U |
V |
24 |
|
Lower limit value |
UB(t)min |
V |
21 | |
|
Upper limit value |
UB(t)max |
V |
40 | |
|
Ripple 1) |
% |
< 10 | ||
|
Power consumption |
P |
VA |
37 | |
|
Current consumption |
max. |
Imax |
A |
1.7 |
| 1) | In case of ripple > 10 %, an upstream smoothing capacitor is required (recommendation: capacitor module VT 11110) |
Analog inputs
|
Command value source |
Potentiometer 10 kΩ supplied with 10 V internal reference voltage, external signal source | ||||
|
Command value |
Voltage |
Differential input |
U |
V |
0 ... ±10 |
|
Input resistance |
R |
kΩ |
≥ 100 | ||
|
position value 1) |
Voltage |
U |
V |
0 … ±10 | |
| 1) | RE = 20 kΩ |
Digital inputs
|
Enable 1) |
On (active) |
U |
V |
8.5 ... 40 |
| 1) | RE = 100 kΩ |
Digital outputs
|
Cable break error message |
No error 1) |
UB |
V |
24 |
|
Error |
UB |
V |
0 |
| 1) | Imax = 100 mA |
Solenoid outputs
|
Solenoid current |
max. |
Imax |
A |
2.7 |
|
Solenoid output |
other properties |
Clocked current controller | ||
|
Cable length |
for 1.5 mm2 |
L |
m |
20 |
|
for 2.5 mm2 |
L |
m |
60 |
Position transducer
|
Line cross-section |
Position transducer line |
A |
4 x 0.5 mm2 (shielded) | |
|
Position transducer supply |
U |
V |
±15 | |
Adjustment options
|
Zero point calibration setting range |
% |
± 5 |

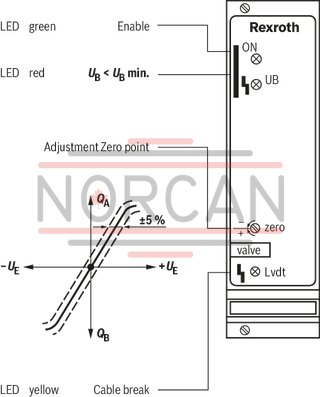

Displays
|
LED display |
Green 1 |
Enable | |
|
Yellow 1 |
Cable break actual value | ||
|
Red |
UB too low |
Other information
|
Special features |
Short-circuit-proof outputs, cable break detection for actual value line, position control with PID behavior, fast energization and fast deletion for short actuating times | ||
|
Anschlussart |
32-pin male connector, DIN 41612, form F | ||
|
Ambient temperature range |
ϑ |
°C |
0 … 70 |
|
Storage temperature range |
ϑ |
°C |
-20 … 70 |
|

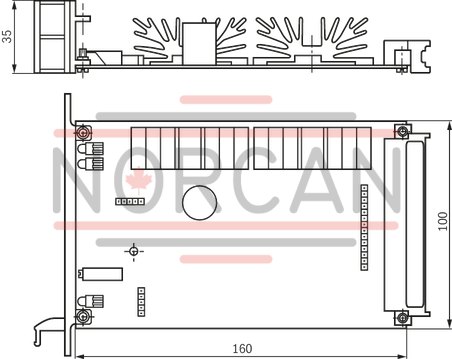

Weight |
m |
kg |
0.37 |
For applications outside these parameters, please consult us!
The amplifier card may only be unplugged and plugged when de-energized.
The distance to aerial lines, radios, and radar systems has to be at least 1 m.
Do not lay solenoid and signal lines near power cables.
For signal lines and solenoid conductors, we recommend using shielded cables.
The cable shield must be connected to the control cabinet extensively and as short as possible.
The valve solenoid must not be connected to free-wheeling diodes or other protection circuits.
The cable lengths and cross-sections specified in the technical data must be complied with.

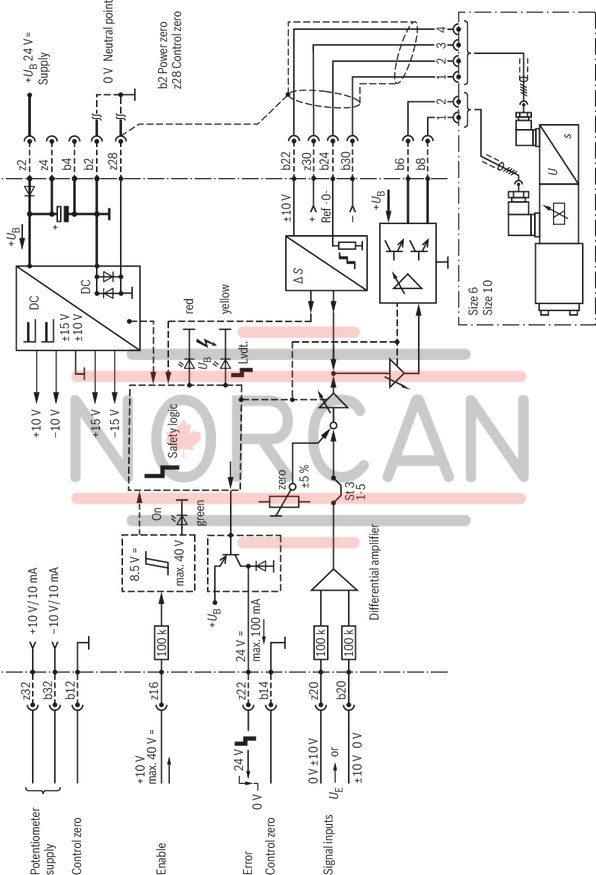

Wiring information
Power zero b2 and control zero b12 or b14 or z28 must be separately led to the central ground (neutral point).
