Material:0811405147
Model:VT-VACAF-500-10/V0

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth VT-VACAF-500-10/V0 Force Control (0811405147) is an advanced analog amplifier designed to manage high-response valves with precision and efficiency. This device boasts a robust set of features, including a pressure differential controller with PID behavior, ensuring responsive and stable operation in various applications. It is equipped with short-circuit-proof outputs and additional electronics via a daughter card, enhancing its functionality and reliability. The amplifier is suitable for installation in standard 19" racks, adhering to the common European format for ease of integration into existing systems. It offers external shut-off capabilities for the pressure controller, adding an extra layer of safety and control. Users will appreciate the separate acceleration and braking ramps that can be adjusted independently or switched off entirely, providing flexibility in controlling the motion profiles. With an adjustable area adjustment specifically designed for cylinder applications, this device caters to precise force control requirements. Its compatibility with pressure sensors (ranging from 0...10 V to 4...20 mA as detailed in data sheet 30271) further extends its versatility. The unit also includes supply provisions for these pressure sensors as well as cable break detection features to ensure continuous monitoring and immediate response to any sensor issues. Overall, the Bosch VT-VACAF-500-10/V0 Force Control offers a comprehensive solution for controlling valve operations with precision, making it a valuable component in a wide range of industrial settings where accurate force application is critical.

Force control

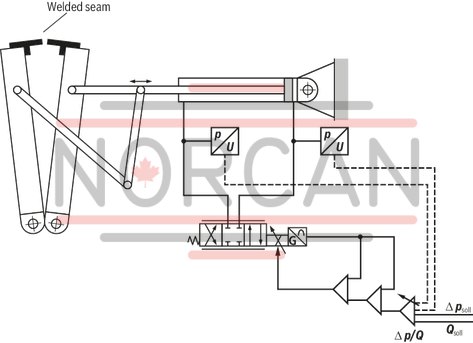

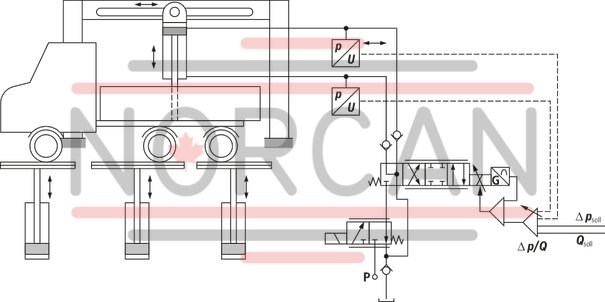

technical illustration-0811405147-Suitable for controlling high-response valves Amplifier with additional electronics (daughter card) Analog amplifiers in Europe format for installation in 19" racks Pressure differential controller (force controller) with PID behavior Short-circuit-proof outputs External shut-off for pressure controller External shut-off for pressure controller Separate acceleration and braking ramp Ramps can be separately adjusted and switched off Adjustable area adjustment for cylinder Suitable for pressure sensors (0...10 V, 4...20 mA), see data sheet 30271 Supply for pressure sensors Cable break detection for pressure sensor

Qcommand	Direction	pdiff. command	Direction	Track traveling	Force control
+5,0 V		+3,5 V		with 50 % vmax.	after track traveling to 35 % of pdiff. max.
+7,5 V		-2,0 V		with 75 % vmax.	not possible
-3,3 V		-4,8 V		with 33 % vmax.	after track traveling to 48 % of pdiff. max.
-10,0 V		+8,0 V		with vmax.	not possible
A command value of at least ±0.3 V must be specified!
The numerical values listed in the table are examples, the signs of the values are decisive.

01		02	03	04	05	06		07		08		09
VT	–	V	A	C	A	F	–	500	–	10	/	V0

01		VT
02		V
Hydraulic component (control)
03	Axis control	A
Valve type
04	High-response valve	C
Control
05	Analog	A
Function
06	Δp/Q control	F
Serial number for types
07	Standard variant without valve amplifier function	500
08	Component series 10 ... 19 (10 ... 19: unchanged technical data and pin assignment)	1X
Customer version
09	Catalog version	V0

General

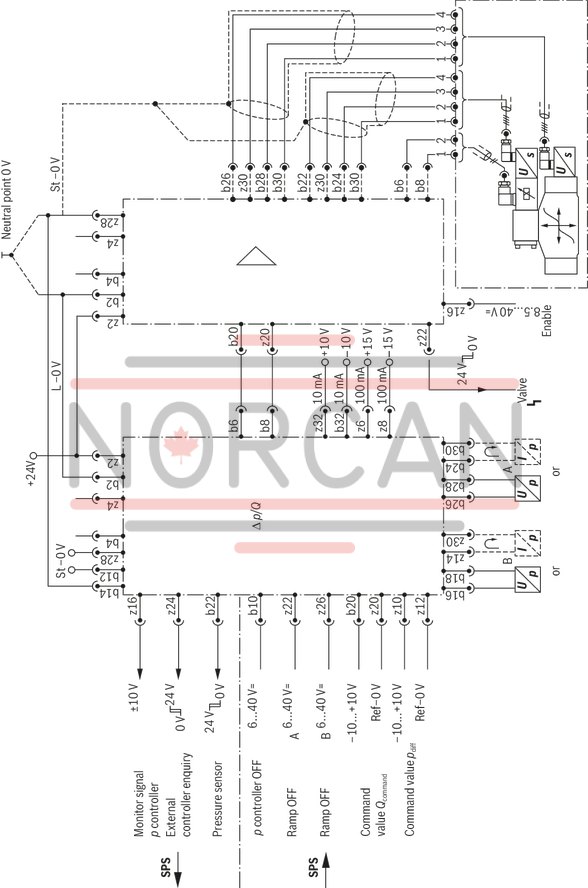

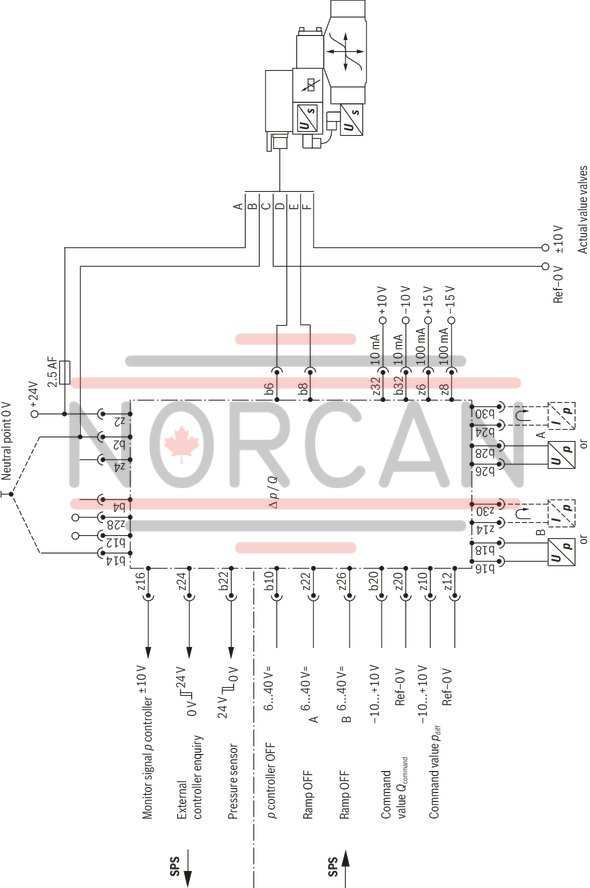

Supply voltage UB at z2 ‒ b2				nominal 24 V= battery voltage 21...40 V, rectified alternating voltage Ueff = 21...28 V (single-phase, full-wave rectifier)
Smoothing capacitor, separately at z2 – b2				Recommendation: Capacitor module VT 11110 (see data sheet 30750) (only necessary if the ripple of UB >10 %)
Current consumption, max.			mA	250
Command value Q				b20: 0...±10 V – differential amplifier z20: 0...±10 V – differential amplifier (Ri= 100 kΩ)
Command value pdiff				z10: 0...+10 V – differential amplifier z12: 0 V – differential amplifier
Actual value from the pressure sensor	A			b26: 0...±10 V – differential amplifier b28: 0 V – differential amplifier z24: z30: 4...20 mA
Actual value from the pressure sensor	B			b16: 0...±10 V – differential amplifier b18: 0 V – differential amplifier z14: z30: 4...20 mA
Pressure sensor supply				z6: +15 V, max. 100 mA z8: -15 V, max. 100 mA
Pressure controller OFF				b10: 6...40 V=
External controller enquiry		V=		z24: 24 V/0.1 A max., if controller is not active
Signal source				Supply ±10 V from b32, z32 (10 mA) or external signal source
Monitor signal Factual				z16: ±10 V
Error pressure sensor (cable break, signal lines)				b22: no error: +UB; max. 100 mA error: 0 V : LED "Ramp OFF A" and "Ramp OFF B" flash
Ramp times				min. 350 ms (1), max. 5.6 s (16) 16 stages, 350 ms/stage
Ramp OFF	A			z22: 8...40 V =
Ramp OFF	B			z26: 8...40 V =
Area adjustment cylinder				min. 1:1 (1), max. 1:4 (16) 16 stages
LED displays	red			Error UB
	red			Ramp OFF A
	red			Ramp OFF B
	green			Controller active
	yellow			Controller not active
	off			Controller OFF
Plug-in connection				Plug to DIN 41612-F32
Operating temperature			°C	0 … +70
Storage temperature range			°C	-20 … +70
Weight		m	kg	0.44

Power zero b2 and control zero b12 or b14 or z28 must be separately led to the central ground (neutral point).

For applications outside these parameters, please consult us!

a	Ideal development (only a square is shown)
b	Problem: P share too small Solution: ➝ Rotate Kp against 16 (fine adjustment) → P gain > see table 2, DIL 11–13
c	Problem: P share too large Solution: → Rotate Kp against 1 (fine adjustment) → Use DIL 11–13 to reduce the P gain according to table 2
d	Problem: P share correct, control deviation too large Solution: → Increase the I gain share according to table 3 → Rotate KI against 16
e	Problem: Time constant of the I share too low Solution: ➝ Rotate KI against 16 until control deviation and vibration are perfect → if KI = 16 is not sufficient, the P share must also be reduced, see table 2

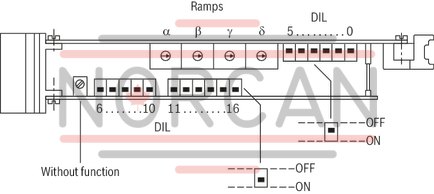

f	Problem: D share too low Solution: ➝ Rotate KD against 16 → D share >, see table 1 (DIL 6–10)
