BOSCH REXROTH
0811405158
$2,105.96 USD
- BOSCH REXROTH
- Material:0811405158
- Model:VT-VACAP-500-20/V0/2CH GO2
Quantity in stock: 0
The Bosch Rexroth VT-VACAP-500-20/V0/2CH (0811405158) is an advanced amplifier unit designed to control high-response valves equipped with integrated electronics. This model features an additional electronics module, often referred to as a daughter card, which enhances its functionality and performance. The amplifier is formatted to fit seamlessly into European standard 19" racks, making it suitable for a variety of industrial applications where space and integration with existing systems are considerations. This unit provides precise valve position control with PID behavior, ensuring responsive and accurate adjustments in flow or pressure regulation tasks. The outputs of the Bosch VT-VACAP-500-20/V0/2CH are short-circuit-proof, enhancing the safety and reliability of the system it is integrated into. An external shut-off feature is available for the pressure controller, adding another layer of control for operators. The amplifier is compatible with a range of pressure sensors, supporting inputs such as 1...6 V, 0...10 V, and 4...20 mA. For detailed compatibility and installation information, one can refer to data sheet 30271. Additionally, this model provides power supply for these pressure sensors and includes cable break detection functionality that alerts users to any discontinuities in the sensor's connection. Overall, the Bosch VT-VACAP-500-20/V0/2CH is a robust solution for managing high-response valves in complex systems requiring precise control and reliable operation. Its design takes into account both performance needs and ease of integration into existing setups within various application contexts.
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
|||||
|
VT |
– |
V |
A |
C |
A |
P |
– |
500 |
– |
2X |
/ |
V0 |
/ |
|
01 |
VT |
|
|
02 |
V |
|
|
Hydraulic component (control) |
||
|
03 |
Axis control |
A |
|
Valve type |
||
|
04 |
High-response valve |
C |
|
Control |
||
|
05 |
Analog |
A |
|
Function |
||
|
06 |
p/Q control |
P |
|
Serial number for types |
||
|
07 |
Standard variant without valve amplifier function |
500 |
|
08 |
Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) |
2X |
|
Customer version |
||
|
09 |
Catalog version |
V0 |
|
Option |
||
|
10 |
1 channel |
no code |
|
2 channels |
2CH |
|
General
|
Type / version |
VT-VACAP-500-20/V0 | VT-VACAP-500-20/V0/2CH | ||
|
Supply voltage |
nominal 24 V= battery voltage 21...40 V, rectified alternating voltage Ueff = 21...28 V (single-phase, full-wave rectifier) |
|||
|
Smoothing capacitor, separately |
Recommendation: Capacitor module VT 11110 (see data sheet 30750) (only necessary if the ripple of UB >10 %) |
|||
|
Current consumption, max. |
0811405157 |
mA |
160 | |
|
0811405158 |
mA |
220 | ||
| Basic card | Daughter card | |||
|
Pressure sensor (1…6 V/0…10 V) |
b26 – ref. b28 | b16 – ref. b18 | ||
|
Pressure sensor (4…20 mA) |
b24 – ref. b28 | z14 – ref. b18 | ||
|
Pressure sensor supply ‒ V |
z6 (+15 V)/b8 (0 V) | |||
|
Pressure command value (0…10 V) |
b12/b14 (0 V) | z12/z10 (0 V) | ||
|
External controller shut-off |
z28: 6...40 V= | b10: 6...40 V= | ||
|
External controller enquiry |
z26: 24 V=, max. 20 mA | z24: 24 V=, max. 20 mA | ||
|
Monitor signal pactual |
z16: 0...10 V= | z18: 0...10 V= | ||
|
External channel change mode |
z30: 6...40 V= | |||
|
Flow command value |
z22: 0...±10 V= b22: 0 V |
z20: 0...±10 V= b22: 0 V |
||
|
Potentiometer supply |
z32: +10 V, max. 10 mA | |||
|
Outlet |
UAI; b4/b8 (0 V): 0...±10 V Last RL > 1 kΩ |
UAII; b6/b8 (0 V): 0...±10 V Last RL > 1 kΩ |
||
|
Cable |
Pressure sensor |
4 x 0.5 mm2 (shielded) | ||
|
Valve |
5 x 0,5 mm2 | |||
|
PLC signals |
0.5 mm2 (shielded) | |||
|
LED displays/channel |
Pressure controller OFF Controller working Pressure sensor cable break (both LEDs are flashing) |
|||
|
Special features |
Cable break monitoring for pressure sensors Test points for important characteristics External pressure controller shut-off External channel change mode Different pressure sensors possible |
|||
|
Plug-in connection |
Plug to DIN 41612-F32 | |||
|
Operating temperature |
°C |
0 … +70 | ||
|
Storage temperature range |
°C |
-20 … +70 | ||
|
Weight |
m |
kg |
0.35 | |
For applications outside these parameters, please consult us!
a
|
||
b
|
Problem: P share too small Solution: → Rotate Kp against F (fine adjustment) → P gain > |
|
|
DIL 14 |
ON |
|
|
DIL 15 |
OFF |
|
|
DIL 16 |
ON |
|
c
|
Problem: P share too large Solution: → Rotate Kp against 0 (fine adjustment) → Use DIL 14–16 to reduce the P gain according to the table |
|
d
|
Problem: P share correct Control deviation too large Solution: ➝ Increase the I gain share DIL 11 ON = I share = 0 DIL 12 ON = I share connected → Rotate Ki against F |
|
e
|
Problem: Time constant of the I share too low Solution: → Rotate Ki against F until control deviation and vibration are perfect → If Ki = F is not sufficient, the P share must also be reduced |
|
f
|
Problem: D share too low Solution: → Rotate KD against F → D share > |
|
|
DIL 8 |
ON |
|
|
DIL 9 |
OFF |
|
|
DIL 10 |
OFF |
|
Front plate

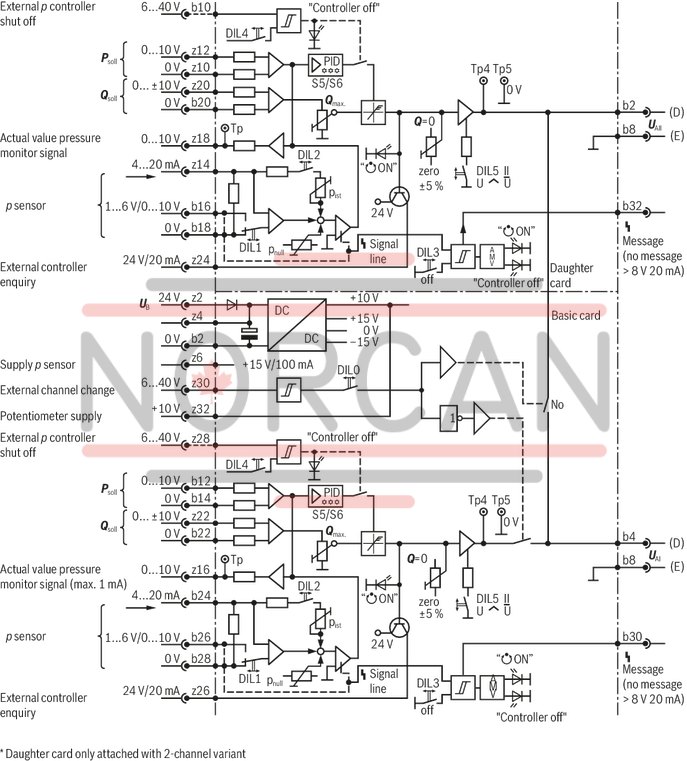

Block diagram with pin assignment
Amplifier – Valve
Pressure sensor connection: Example channel II
Principle of the channel selection
Adjustment table
DIL switch
HEXCODE switch
Example 2
Channel mode "separate outputs"
Example 1
Channel mode "joint output"
Dimensions in mm
