BOSCH REXROTH
0811405162
$743.76 USD
- BOSCH REXROTH
- Material:0811405162
- Model:VT-SSPA1-508-20/V0/I
Quantity in stock: 0

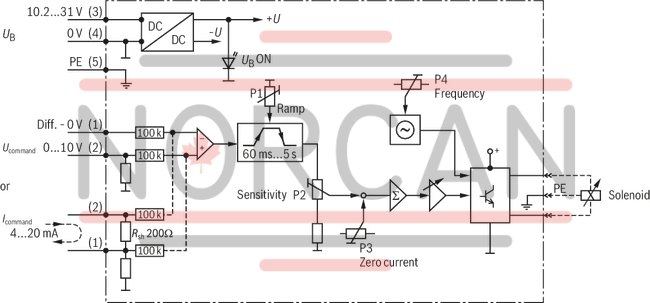

The Bosch Rexroth VT-SSPA1-508-2X/V0/I (0811405162) is an advanced amplifier designed for precision control of proportional valves without electrical position feedback. This device is engineered to be connected directly to the solenoid plug of the valve, streamlining installation and setup. Its design includes a cable gland through which the control side connection cable for supply voltage (UB) and command value is securely led and connected. Featuring an intuitive LED indicator, this amplifier provides immediate visual confirmation of the supply voltage's presence, ensuring operational readiness. Users can tailor the command value to specific application needs thanks to its adjustable settings for zero point and sensitivity. The amplifier accommodates both voltage (0...10 V) and current (4...20 mA) command value presettings, with a differential input available for voltage presetting scenarios. Additionally, this model boasts an adjustable ramp function that allows for smooth transitions in valve positioning, which can be critical in applications requiring precise flow or pressure adjustments. The variable dither amplitude feature offers further customization, enhancing valve performance in specialized applications; however, it's pre-set to an optimal value at delivery, simplifying the process for standard operations. The Bosch Rexroth VT-SSPA1-508-2X/V0/I operates on a 24V power supply and is designed with flexibility in mind, allowing users to fine-tune ramp time, sensitivity, zero point, and dither frequency to meet diverse operational requirements. This combination of features makes it a versatile solution for managing proportional valves across various applications without necessitating additional positional feedback mechanisms.
The amplifier is used to control proportional valves without electrical position control.
It is connected directly to the solenoid plug of the valve. The connection cable on the control side (UB, command value) is lead through a cable gland and connected.
An LED signals the available supply voltage. Depending on the type of the amplifier, the command value presetting is a voltage 0...10 V or a current 4...20 mA.
The command value can be adjusted with regard to zero point and sensitivity. With voltage presetting, a differential input is available.
In addition, the command value can be led over a ramp.
To allow for adjustment to special applications, the dither amplitude was designed variably.
Upon delivery, the dither amplitude has already been set to a perfect value so that another adjustment is only necessary in the above-mentioned special cases.
|
01 |
02 |
03 |
04 |
05 |
||||
|
VT-SSPA1 |
‒ |
508 |
‒ |
2X |
/ |
V0 |
/ |
|
01 |
Valve amplifiers for proportional valves without electrical position feedback, Analog, Connector design |
VT-SSPA1 |
|
02 |
For valves: |
525 |
|
03 |
Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) |
2X |
|
04 |
Version: standard |
V0 |
|
05 |
Voltage input 0...10 V |
0 |
|
Current input 4...20 mA |
I |
General
|
Component series |
2X | ||
|
Material number |
Data sheet |
1819929093 | |
|
Type of electronics |
Analog | ||
|
Design |
Plug-in connector |
Voltage supply
|
Operating voltage |
nominal |
U |
V |
24 |
|
Lower limit value |
UB(t)min |
V |
21 | |
|
Upper limit value |
UB(t)max |
V |
31 | |
|
Residual ripple |
uSS |
V |
< 2 | |
|
Power consumption |
max. |
Smax |
VA |
55 |
Analog inputs
|
Command value |
Voltage (differential input) |
U |
V |
0 ... 10 |
|
Current |
I |
mA |
4 … 20 |
Solenoid outputs
|
Solenoid current |
max. |
Imax |
A |
0.8 |
|
Setting range |
Dither frequency |
f |
95 ... 340 | |
|
Solenoid output |
other properties |
Rectangular voltage, pulse-modulated, short-circuit-proof |
Adjustment options
|
Zero point calibration information |
See characteristic curves | ||
|
Range sensitivity adjustment |
See characteristic curves | ||
|
Ramp time up/down |
t |
s |
0.06 … 5 |
Displays
|
LED display |
Green |
Operating voltage |
Supplementary information
|
Special features |
Fast energization for short actuating time, adjustments via potentiometer | |||
|
Standard connection |
of solenoid |
DIN 43650 | ||
|
Connection cross-section |
A |
5 x 0.75 mm2, shielded | ||
|
Anschlussart |
Cable gland and screw terminals | |||
|
Type of protection according to EN 60529 1) |
Extra für FN |
IP65 | ||
|
Electro-magnetic compatibility |
tested according to |
EN 61000-6-2: 2002-08, EN 61000-6-3: 2002-08 | ||
|
Ambient temperature range |
ϑ |
°C |
-20 … 70 | |
|
Storage temperature range |
ϑ |
°C |
-25 … 85 | |
|
Weight |
m |
kg |
0.23 | |
| 1) | In plugged condition |
For applications outside these parameters, please consult us!
|
P1 |
Ramp time |
|
P2 |
Sensitivity |
|
P3 |
Zero point |
|
P4 |
Dither frequency |
|
St1 |
Connection terminals |
|
LED |
Operating voltage display |
Dimensions in mm
The plug-in amplifier may only be unplugged and plugged when de-energized. The distance to aerial lines, radios and radar systems must be sufficient (> 1 m). Do not lay solenoid and signal lines near power cables. For signal lines and solenoid conductors, we recommend using shielded cables. The cable shield must be connected to the control cabinet extensively and as short as possible.
Preparation of the connection cable (“Preparation of the connection cable” graphic) Lead the cable through the cable gland and connect it to terminal St 1. Applying the supply voltage → LED (green) is illuminated. Zero point adjustment → poti P3 with minimum command value presetting (“Zero point and sensitivity” graphic) Sensitivity adjustment → poti P2 with maximum command value presetting (“Zero point and sensitivity” graphic) Dither frequency adjustment → poti P4 (“Dither frequency” graphic)
The dither frequency is already correctly adjusted when supplied. For special applications, a correction may be necessary. In this case, please contact DC-IA/PRM12. Ramp time adjustment → poti P1 (“Ramp time” graphic)
Ramp time

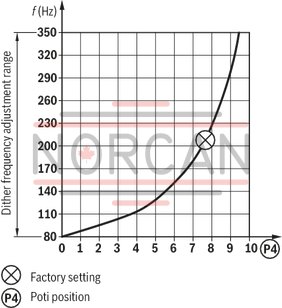

Dither frequency
Zero point and sensitivity
