BOSCH REXROTH
9511290015

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

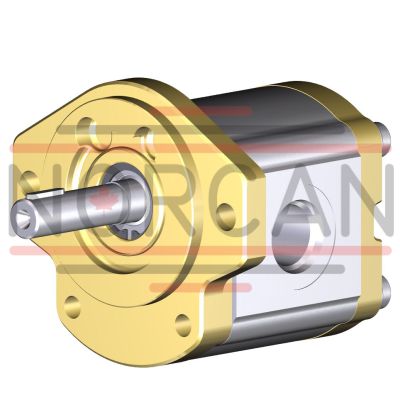

The Bosch Rexroth AZMF-12-014UQR12ML-S0022 (9511290015) is an external gear motor designed to efficiently convert hydraulic energy into mechanical torque and rotational speed. This birotational unit is capable of operating in both directions, allowing for versatility in its application. The motor features a straight shaft compliant with SAE J 500 short standards and is mounted using an SAE J 518 A bolt flange. It incorporates UNB thread line connections with SAE O-ring sealing, ensuring secure and leak-free hydraulic connections. The gear motor boasts a wide speed range, making it suitable for various operational demands. It has been engineered with slide bearings that are capable of handling high loads, contributing to the reliability and durability of the motor. The unit's high efficiency is attributed to pressure-dependent gap sealing and high-precision manufacturing technology which also minimizes heat loss during operation. Constructed with an aluminum housing material, the AZMF-12-014UQR12ML-S0022 is designed for long service life, with an estimated lifespan of approximately 10 million actuations. This longevity is further supported by its corrosion-resistant design and NBR sealing material. The front cover conforms to SAE J 518 standards while the rear cover features an axial drain port. With a geometric displacement size of 14 cm³/rev, this external gear motor can handle a maximum constant pressure effectively. Its bearing diameter measures at 22 mm, and it has a standard noise level which ensures quiet operation within its general applications. The model has a weight of 5.9 kg and can accommodate a maximum flow rate of 40 l/min, making it a robust choice for various hydraulic systems requiring dependable performance from their external gear units.
