BOSCH REXROTH
R900223890
$153.69 USD
- BOSCH REXROTH
- Material:R900223890
Quantity in stock: 0
The Bosch Rexroth PLUG-IN CONNECTOR 7P Z31 BF6-3PG11MSPEZ (R900223890) is a high-quality OEM accessory designed to provide secure and reliable electrical connections for industrial valves. This plug-in connector is specifically tailored for valves that feature a round connector conforming to DIN EN standards, ensuring compatibility and ease of integration within existing systems. The model is suitable for applications that require a 7-pole PE (Protective Earth) connection as well as those that accommodate the 3-pole configuration, making it versatile for various industrial requirements. The unit's electrical connection description indicates that it adheres to DIN EN specifications, which underscores its compliance with established safety and performance standards. With a supply voltage specification of VDC, this Bosch Rexroth plug-in connector is equipped to handle the electrical demands typical in industrial environments. The product's weight is carefully calibrated to maintain the balance between durability and ease of installation. This plug-in connector also comes with a mating connector, further simplifying the process of integrating it with compatible valve systems. Its robust design ensures that it can withstand the rigors of industrial use while maintaining consistent performance. Overall, the Bosch Rexroth PLUG-IN CONNECTOR 7P Z31 BF6-3PG11MSPEZ (R900223890) represents a reliable solution for establishing electrical connections in industrial valve applications where adherence to DIN EN standards is required. Its compatibility with both 7-pole PE and 3-pole configurations offers flexibility for system integrators and maintenance personnel working with specialized valve equipment.
Mating connector, connector 7-pole (6 + PE) EN 175301-804
For valves with round connector. OEM accessories. Industrial use.
Unpacked Weight: 0.088 kg
| For valves with round connector according to EN 175201-804, 6-pole + PE and 6-pole, compatible with VG 95328 |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Conformity description | DIN 43563 |
| Electrical connector | Round connector 7+PE |
| Supply voltage | 24 VDC |
| Weight | 0.088 |
| Conformity | DIN 43563 |
|
Mating connector |
Short designation |
7PZ31...K | 7PZ31...M | |||
|
Design |
no code (see unit dimensions) | |||||
|
Ambient temperature |
°C |
-40 … +100 | ||||
|
Protection class according to DIN EN 60529 |
IP 67 with mating connector mounted and fitted | IP65 with mating connector mounted and fitted | ||||
|
Number of poles |
6 + PE | |||||
|
Terminal area for line diameter |
mm |
6.5 … 11 | 9 … 12.5 | |||
|
Wire cross-section, max. |
0.5 ... 1.5 mm2 | |||||
|
Anschlussart |
Soldered joint | |||||
|
Standard |
EN 175201-804 | |||||
| DIN 43563 | ||||||
|
Certification/conformity |
DIN 43563 | |||||
|
Derating |
max. |
6 A with 0.5 mm2 |
°C |
70 | - | |
|
9 A with 1.5 mm2 |
°C |
70 | - | |||
For applications outside these parameters, please consult us!
6-pole + PE, plastic version
6-pole + PE, metal version

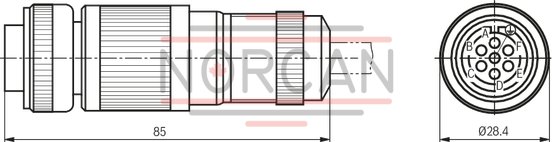

6-pole + PE, plastic version, 7PZ31...K
Dimensions in mm
6-pole + PE, metal version, 7PZ31...M
Dimensions in mm
|
1 |
Coupling nut; tightening torque MA = 1 … 1.5 Nm |
