Material:R900542846
Model:CLEVIS CCKB 32 KPL.

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CLEVIS CCKB 32 KPL. (R900542846) is a high-quality component designed for use in hydraulic cylinder applications. This clevis is specifically engineered to facilitate the attachment of Bosch Rexroth's cylinders to mechanical linkages, ensuring a secure and precise connection that is critical for the effective transmission of forces within a system. The model code CCKB 32 KPL. indicates that this clevis is part of the comprehensive range of accessories offered by Bosch Rexroth for their hydraulic products. Constructed with robust materials, the clevis is designed to withstand the rigors of demanding operational conditions, maintaining its integrity and functionality over time. Its compatibility with specific cylinders allows for a seamless integration into existing systems or new installations, making it a versatile choice for engineers and technicians looking to maintain or enhance their hydraulic equipment. This particular clevis offers reliability in applications where pivotal movement between two parts is necessary, such as in industrial machinery, automotive systems, and various other mechanical setups that rely on hydraulics for motion control. The precision manufacturing ensures that the clevis provides consistent performance and contributes to the overall efficiency and safety of the system it is integrated with. In summary, the Bosch Rexroth CLEVIS CCKB 32 KPL. (R900542846) represents a critical component in hydraulic systems requiring durable and reliable linkage elements. Its design and construction are indicative of Bosch Rexroth's commitment to quality in providing essential parts for complex machinery where performance cannot be compromised.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

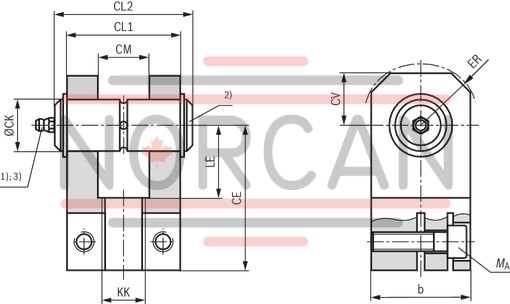

Dimensions: Fork clevis CCKB (clampable)

ISO 8132

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Related bolt Ø m6 (bolt and bolt lock are included in the scope of delivery and are not mounted upon delivery)
3)	Without lubrication bore

Dimensions: Fork clevis CCKB (clampable)

ØAL	ØMM	Type	Suitable for series	Nominal force	b	CE		ØCK		CL1		CL2	CM		ER	KK	LE	CV	Clamping screw	MA 2)	m 3)
					max.							max.			max.		min.	max.	ISO 4762-10.9
mm				kN	mm	mm		mm		mm		mm	mm		mm		mm	mm		Nm	kg
25	14 mm / -	CCKB 12 1)	CDM1 CGM1 CSM1 - - - -	8	25	38	js13	12	H9	28	h16	49	12	A13	16	M12 x 1.25	18	16	M4 x 16	2.9	0.2
25	18 mm / -	CCKB 12 1)	CDM1 CGM1 CSM1 - - - -	8	25	38	js13	12	H9	28	h16	49	12	A13	16	M12 x 1.25	18	16	M4 x 16	2.9	0.2
25	18 mm / -	CCKB 16	CDM1 CGM1 CSM1 - - - -	12.5	30	44	js13	16	H9	36	h16	57	16	A13	20	M14 x 1,5	22	20	M6 x 30	10	0.35
32	18 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	30	44	js13	16	H9	36	h16	57	16	A13	20	M14 x 1,5	22	20	M6 x 30	10	0.35
32	22 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	30	44	js13	16	H9	36	h16	57	16	A13	20	M14 x 1,5	22	20	M6 x 30	10	0.35
32	22 mm / -	CCKB 20	CDM1 CGM1 CSM1 - - - -	20	40	52	js13	20	H9	45	h16	72	20	A13	25	M16 x 1.5	27	25	M8 x 30	25	0.7
40	22 mm / -		CDM1 CGM1 CSM1 - - - -	20	40	52	js13	20	H9	45	h16	72	20	A13	25	M16 x 1.5	27	25	M8 x 30	25	0.7
40	28 mm / -		CDM1 CGM1 CSM1 - - - -	20	40	52	js13	20	H9	45	h16	72	20	A13	25	M16 x 1.5	27	25	M8 x 30	25	0.7
40	25 mm / -	CCKB 25	CDH2 CGH2 CSH2 - - - -	32	50	65	js13	25	H9	56	h16	84	25	A13	32	M20 x 1.5	34	32	M10 x 35	49	1.4
40	28 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	32	50	65	js13	25	H9	56	h16	84	25	A13	32	M20 x 1.5	34	32	M10 x 35	49	1.4
50	28 mm / -		CDM1 CGM1 CSM1 - - - -	32	50	65	js13	25	H9	56	h16	84	25	A13	32	M20 x 1.5	34	32	M10 x 35	49	1.4
50	36 mm / -		CDM1 CGM1 CSM1 - - - -	32	50	65	js13	25	H9	56	h16	84	25	A13	32	M20 x 1.5	34	32	M10 x 35	49	1.4
50	32 mm / -	CCKB 32	CDH2 CGH2 CSH2 - - - -	50	65	80	js13	32	H9	70	h16	105	32	A13	40	M27 x 2	41	40	M12 x 40	85	2.8
50	36 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	50	65	80	js13	32	H9	70	h16	105	32	A13	40	M27 x 2	41	40	M12 x 40	85	2.8
63	36 mm / -		CDM1 CGM1 CSM1 - - - -	50	65	80	js13	32	H9	70	h16	105	32	A13	40	M27 x 2	41	40	M12 x 40	85	2.8
63	45 mm / -		CDM1 CGM1 CSM1 - - - -	50	65	80	js13	32	H9	70	h16	105	32	A13	40	M27 x 2	41	40	M12 x 40	85	2.8
63	40 mm / -	CCKB 40	CDH2 CGH2 CSH2 - - - -	80	80	97	js13	40	H9	90	h16	133	40	A13	50	M33 x 2	51	50	M16 x 50	210	5.2
63	45 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	80	80	97	js13	40	H9	90	h16	133	40	A13	50	M33 x 2	51	50	M16 x 50	210	5.2
80	45 mm / -		CDM1 CGM1 CSM1 - - - -	80	80	97	js13	40	H9	90	h16	133	40	A13	50	M33 x 2	51	50	M16 x 50	210	5.2
80	56 mm / -		CDM1 CGM1 CSM1 - - - -	80	80	97	js13	40	H9	90	h16	133	40	A13	50	M33 x 2	51	50	M16 x 50	210	5.2
80	50 mm / -	CCKB 50	CDH2 CGH2 CSH2 - - - -	125	100	120	js13	50	H9	110	h16	165	50	A13	63	M42 x 2	63	63	M20 x 60	425	9.5
80	56 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	125	100	120	js13	50	H9	110	h16	165	50	A13	63	M42 x 2	63	63	M20 x 60	425	9.5
100	56 mm / -		CDM1 CGM1 CSM1 - - - -	125	100	120	js13	50	H9	110	h16	165	50	A13	63	M42 x 2	63	63	M20 x 60	425	9.5
100	70 mm / -		CDM1 CGM1 CSM1 - - - -	125	100	120	js13	50	H9	110	h16	165	50	A13	63	M42 x 2	63	63	M20 x 60	425	9.5
100	63 mm / -	CCKB 63	CDH2 CGH2 CSH2 - - - -	200	140	140	js13	63	H9	140	h16	185	63	A13	71	M48 x 2	75	71	M24 x 80	730	21.5
100	70 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	200	140	140	js13	63	H9	140	h16	185	63	A13	71	M48 x 2	75	71	M24 x 80	730	21.5
125	70 mm / -		CDM1 CGM1 CSM1 - - - -	200	140	140	js13	63	H9	140	h16	185	63	A13	71	M48 x 2	75	71	M24 x 80	730	21.5
125	90 mm / -		CDM1 CGM1 CSM1 - - - -	200	140	140	js13	63	H9	140	h16	185	63	A13	71	M48 x 2	75	71	M24 x 80	730	21.5
125	80 mm / -	CCKB 80	CDH2 CGH2 CSH2 - - - -	320	180	180	js13	80	H9	170	h16	225	80	A13	90	M64 x 3	94	90	M30 x 100	1450	38.2
125	90 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	320	180	180	js13	80	H9	170	h16	225	80	A13	90	M64 x 3	94	90	M30 x 100	1450	38.2
160	90 mm / -		CDM1 CGM1 CSM1 - - - -	320	180	180	js13	80	H9	170	h16	225	80	A13	90	M64 x 3	94	90	M30 x 100	1450	38.2
160	110 mm / -		CDM1 CGM1 CSM1 - - - -	320	180	180	js13	80	H9	170	h16	225	80	A13	90	M64 x 3	94	90	M30 x 100	1450	38.2
140	90 mm / -	CCKB 90	CDH2 CGH2 CSH2 - - - -	400	200	195	js13	90	H9	190	h16	-	90	A13	100	M72 x 3	108	100	M36 x 120	2480	-
140	100 mm / -	CCKB 90	CDH2 CGH2 CSH2 - - - -	400	200	195	js13	90	H9	190	h16	-	90	A13	100	M72 x 3	108	100	M36 x 120	2480	-
160	100 mm / -	CCKB 100	CDH2 CGH2 CSH2 - - - -	500	220	210	js13	100	H9	210	h16	-	100	A13	110	M80 x 3	114	110	M36 x 130	2480	-
160	110 mm / -		CDM1 CGM1 CSM1 CDH2 CGH2 CSH2 -	500	220	210	js13	100	H9	210	h16	-	100	A13	110	M80 x 3	114	110	M36 x 130	2480	-
200	110 mm / -		CDM1 CGM1 CSM1 - - - -	500	220	210	js13	100	H9	210	h16	-	100	A13	110	M80 x 3	114	110	M36 x 130	2480	-
200	140 mm / -		CDM1 CGM1 CSM1 - - - -	500	220	210	js13	100	H9	210	h16	-	100	A13	110	M80 x 3	114	110	M36 x 130	2480	-

1)	Without lubrication bore
2)	MA = tightening torqueThe fork clevis must always be screwed against the shoulder of the piston rod. Afterwards, the clamping screws must be tightened with the specified tightening torque.
3)	m = weight of fork clevis

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
