Material:R900001330
Model:SWIVEL HEAD CGK 25 KPL.

Due to extremely high demand, please call 877-366-7226 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SWIVEL HEAD CGK 25 KPL. (R900001330) is a meticulously designed component that plays a crucial role in facilitating precise and flexible movement within mechanical systems. This swivel head is an integral part of a larger assembly where multidirectional movement is required, making it suitable for applications that demand high degrees of orientation and positioning accuracy. The CGK 25 model code indicates specific design characteristics and dimensions that ensure compatibility with corresponding machinery. Engineered for durability and consistent performance, the Bosch Rexroth swivel head boasts robust construction suited for various operational environments. Its precise engineering reflects the high-quality standards associated with Bosch Rexroth components, ensuring reliability and longevity in service. This particular part is commonly utilized in systems where there is a need for a pivoting connection between two parts, such as in articulated arms or adjustable fixtures. The model's capabilities include smooth rotation and secure locking mechanisms, which are essential for maintaining the desired position under dynamic loads or during repetitive movements. The use of high-grade materials in its construction allows it to withstand the stresses associated with industrial operations while maintaining precise functionality. Overall, the Bosch Rexroth SWIVEL HEAD CGK 25 KPL. (R900001330) exemplifies the manufacturer's commitment to providing innovative solutions that enhance motion control in complex systems. Its specialized design ensures it meets the exacting requirements of applications where flexibility and precision are paramount.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

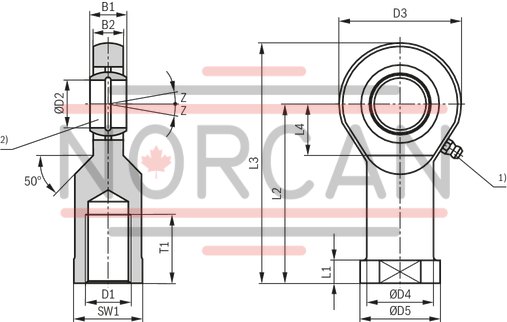

Dimensions: Swivel head CGK

ISO 12240-4

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Related bolt Ø m6

Dimensions: Swivel head CGK

ØAL	ØMM	Type	Suitable for series	B1		B2	D1	ØD2		D3	ØD4	ØD5	L1	L2	L3	L4	T1	SW1 3)	Z 3)	m 4)	C0 5)	Fadm 6)
										max.	max.	max.			max.	min.	min.
mm				mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm		°	kg	kN	kN
25	- / -	CGK 10 1)	CD70 CG70 - - - - -	9	0 - 0.12	7	M10	10	h5	30	16	20	6.5	43	60	13	15	15 / 16 mm	12 ... 15	0.07	17.6	5.8
32	- / -	CGK 12 1)	CD70 CG70 - - - - -	10	0 - 0.12	8	M12	12	h5	35	19	23	7	50	69	17	18	19 mm / -	10 ... 11	0.1	24.5	8.1
40	16 mm / -	CGK 15 2)	CD70 CG70 CD210 CG210 - - -	12	0 - 0.12	10	M14	15	h5	41	22	27	8	61	83	19	21	22 mm / -	8 ... 12	0.16	36	11.9
40	18 mm / -	CGK 15 2)	CD70 CG70 CD210 CG210 - - -	12	0 - 0.12	10	M14	15	h5	41	22	27	8	61	83	19	21	22 mm / -	8 ... 12	0.16	36	11.9
40	25 mm / -	CGK 20 2)	CD210 CG210 - - - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	22 mm / -		CD70 CG70 CD210 CG210 - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	25 mm / -		CD70 CG70 CD210 CG210 - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	36 mm / -	CGK 25	CD210 CG210 - - - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	25 mm / -		CD70 CG70 CD210 CG210 - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	28 mm / -		CD70 CG70 CD210 CG210 - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	36 mm / -	CGK 30	CD70 CG70 CD210 CG210 - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
63	45 mm / -		CD210 CG210 - - - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	36 mm / -		CD70 CG70 CD210 CG210 - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	45 mm / -		CD70 CG70 - - - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	45 mm / -	CGK 35	CD210 CG210 - - - - -	25	0 - 0.12	21	M36 x 3	35	h5	84	47	60	15	125	169	40	60	50 mm / -	6	1.4	146	48.2
80	56 mm / -	CGK 40	CD210 CG210 - - - - -	28	0 - 0.12	23	M39 x 3	40	h5	94	52	67	18	142	191	46	65	55 mm / -	7	2	180	59.4
100	56 mm / -	CGK 40	CD70 CG70 - - - - -	28	0 - 0.12	23	M39 x 3	40	h5	94	52	67	18	142	191	46	65	55 mm / -	7	2	180	59.4
100	45 mm / -	CGK 45	CD210 CG210 - - - - -	32	0 - 0.12	27	M42 x 3	45	h5	104	58	72	20	145	199	50	65	60 / 65 mm	7	2.7	240	79.2
125	45 mm / -	CGK 45	CD70 CG70 - - - - -	32	0 - 0.12	27	M42 x 3	45	h5	104	58	72	20	145	199	50	65	60 / 65 mm	7	2.7	240	79.2
100	50 mm / -	CGK 50	CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
100	70 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	50 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	56 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	50 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	56 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	70 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	38	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	63 mm / -	CGK 60	CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
125	90 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	70 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	90 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	63 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	70 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	90 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	47	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	80 mm / -	CGK 80	CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5
150	100 mm / -		CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5
180	80 mm / -		CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5

1)	Cannot be re-lubricated
2)	Can be re-lubricated via lubricating hole in housing
3)	Dimensions may differ depending on the manufacturer
4)	m = weight of swivel head
5)	C0 = static load rating of the swivel head
6)	Fadm = max. admissible load of the swivel head for increasing or alternating loads

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
