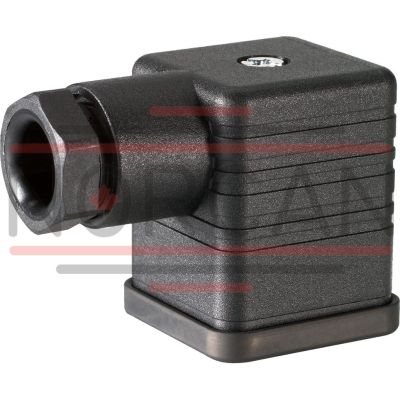

PLUG-IN CONNECTOR 3P Z45 B GDM201 BG&
R900011039


$7.23
  • BOSCH REXROTH
  • Material:R900011039
  • Model:PLUG-IN CONNECTOR 3P Z45 B GDM201 BG&

Due to extremely high demand, please call 877-366-7226 for availability



Mating connector

For valves with connector K4. OEM accessories. Industrial use.

Unpacked Weight: 0.04 kg
For valves with connector "K4" according to EN 175301-803 and ISO 4400, 2-pole + PE, "large cubic connector"
Mating connectors for valves with one or two solenoids (individual connection)
Electrical connection descriptionConnector 3-pole (2 + PE) according to EN 175301-803
Productgroup ID9,10,11,12,13,14
Electrical connectorConnector 3-pole (2 + PE)
Supply voltage24 VDC
Weight0.04

For applications outside these parameters, please consult us!

Mating connector

Short designation

Z45

Design

A

Ambient temperature

Standard

°C

-30 … +90 -30 … +125

Protection class according to DIN EN 60529

IP65 with mating connector mounted and fitted

Number of poles

2 + PE

Terminal area for lines with external diameter

mm

5 … 10

Wire cross-section, max. 1)

mm²

1.5

Anschlussart

Screw connection

Standard

EN 175301-803

Certification/conformity

VDE, SEV, UL, CSA, RoHS

Derating, max.

16 A

°C

40

9,5 A

°C

60
1) 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5)

Without circuitry, standard

technical illustration-PLUG-IN CONNECTOR  3P Z45 B GDM201   BG&-Mating connector

Dimensions in mm

technical illustration-PLUG-IN CONNECTOR  3P Z45 B GDM201   BG&-Mating connector

Dimensions in mm

technical illustration-PLUG-IN CONNECTOR  3P Z45 B GDM201   BG&-Mating connector

1

Mounting screw M3, tightening torque MA = 0.5 Nm

2

Fitting NPT 1/2″
