BOSCH REXROTH
PLUG-IN CONNECTOR 4P Z24 WINKEL SPEZ
R900082899
$45.62
- BOSCH REXROTH
- Material:R900082899
- Model:PLUG-IN CONNECTOR 4P Z24 WINKEL SPEZ
Quantity in stock: 32
Mating connector, connector 3-pole (2 + PE) EN 175301-803
For sensors and valves with connector K24, K35 and K72. OEM accessories. Industrial use.
Unpacked Weight: 0.026001 kg
| For sensors and valves with connector “K24”, “K35” and “K72” |
| Mating connectors M12, 4-pole, line cross-section 0.75 mm2 |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Electrical connection description | Connector, 4-pole, M12 x 1 according to EN 61076-2-101, with LED and interference protection circuit |
| Productgroup ID | 9,10,11,12,13,14 |
| Conformity description | UL, CSA |
| Supply voltage | 250 V AC/DC |
| Weight | 0.026001 |
| Conformity | UL,CSA |
| Conformity | UL,CSA |
|
Mating connector |
Short designation |
4PZ24 GS PG7 | 4PZ24 GS PG9 | 4PZ24 AS PG7 | 4PZ24 AS PG9 | |
|
Design |
M12, coding A | |||||
|
Ambient temperature |
°C |
-25 … +85 | ||||
|
Protection class according to DIN EN 60529 |
IP 67 with mating connector mounted and fitted | |||||
|
Number of poles |
4 | |||||
|
Terminal area for line diameter |
mm |
4 … 6 | 6 … 8 | 4 … 6 | 6 … 8 | |
|
Wire cross-section, max. |
4 x 0.75 mm2 | |||||
|
Anschlussart |
Screw connection | |||||
|
Standard |
- | |||||
|
Certification/conformity |
UL, CSA | - | ||||
|
Derating |
- | |||||
For applications outside these parameters, please consult us!
M12 x 1, straight
M12 x 1, angled
3/2 directional seat valve – version "CK"
Dimensions in mm

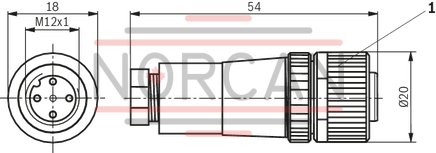

M12 x 1, straight, 4PZ24
Dimensions in mm

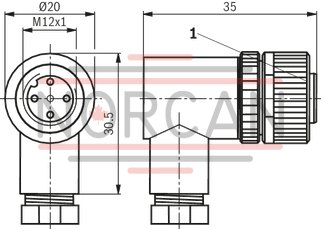

M12 x 1, angled, 4PZ24
Dimensions in mm
4/2 directional seat valve – version “D”
Dimensions in mm
Dimensions in mm
Dimensions in mm
