BOSCH REXROTH
R900225234
$1,105.84 USD
- BOSCH REXROTH
- Material:R900225234
- Model:2FRM6A36-3X/02QRV
Quantity in stock: 0

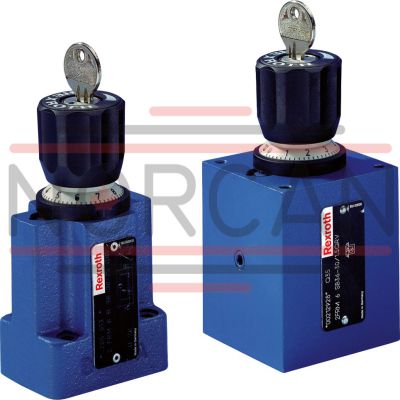

The Bosch Rexroth 2FRM6A36-3X/02QRV (R900225234) is a high-performance industrial hydraulic valve designed for reliable control of fluid flow to a set value. This mechanically actuated valve features direct actuation and includes a pressure compensator that can be closed, as well as a lockable rotary knob with scale for precise adjustments. Additionally, it incorporates a check valve for unidirectional flow control. The 2FRM6A36-3X/02QRV valve is characterized by its spool symbol A ➔ B, B ➔ A and is suitable for maintaining constant flow regardless of pressure and temperature changes. The robust construction consists of a housing, rotary knob, orifice bush, and pressure compensator. An optional check valve can be included depending on the specific application requirements. This model offers an external closing of the pressure compensator via channel P, which enables the user to avoid startup jumps by holding the compensator closed against the compression spring through external pressure. This feature is particularly useful for supply control applications. Designed with subplate mounting and conforming to ISO connection diagrams, this valve ensures ease of integration into various hydraulic systems. The size specifications, maximum operating pressure, maximum flow rates, number of ports, type of actuation (mechanical), types of connections (subplate mounting), switching positions, weight specifications, and compatible seal materials (FKM) are all tailored to meet demanding industrial requirements. The hydraulic fluids compatible with this valve include HL, HLP, HLPD HVLP HVLPD HETG HEES HEPG HFDU HFDR. Flow control valves like the 2FRM6A36-3X/02QRV are essential components in hydraulic systems where precise flow regulation is necessary to ensure optimal performance and efficiency in various mechanical processes.
Size 6, A → B, B → A, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable control of the flow to setting value.
Unpacked Weight: 1 kg
General information
The flow control valve type 2 FRM is a 2-way flow control valve.
It is used for maintaining a constant flow, independent of pressure and temperature.
The valve basically consists of housing (1), rotary knob (2), orifice bush (3), pressure compensator (4) and an optional check valve (8).
Flow control valve type 2FRM 6 A…RV
(with external closing, with check valve)
In principle, the function of this valve is the same as that of valve type 2FRM 6 B…MV.
However, the flow control valve is provided with the possibility of an external closing of the pressure compensator (4) via channel P (9). The external pressure acting in channel P (9) via orifice (10), holds the pressure compensator (4) in closed position against the compression spring (6). When the connected directional valve (11) is switched over to permit flow from P to B, control is achieved as with type 2FRM 6 B. Thus, a start-up jump is avoided.
The version with pressure compensator closing can only be used for supply control.
The free return flow from channel B to channel A is directed via the check valve (8).
Attention!
The pressure loss of port P upstream of the directional valve to port A upstream of the flow control valve makes itself felt by a reduced flow.
Type 2FRM 6 A76-3X/..RV
| Direct actuated |
| With closing of the pressure compensator |
| Lockable rotary knob with scale |
| With check valve |
| Maximum operating pressure 315 bar |
| Size 6 |
| Maximum flow 32 l/min |
| Component series 3X |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A → B, B → A |
| Max. pressure | 315 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | with mechanical actuation |
| Size | 6 |
| Max. flow | 0.2 |
| Type of connection | Subplate mounting |
| Connection diagram | ISO 6263-03-02-*-13 |
| Number of switching positions | 2 |
| Weight | 1 |
| Seals | FKM |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
||
|
2FRM |
6 |
6 |
– |
3X |
/ |
V |
* |
|
01 |
2-way flow control valve |
2FRM |
|
02 |
Size 6 |
6 |
|
03 |
with closing of the pressure compensator (suppression of the start-up jump) |
A |
|
Adjustment type |
||
|
04 |
Lockable rotary knob with scale 1) |
3 |
|
Rotary knob with scale |
7 |
|
|
05 |
Zero position of the marking at port P |
6 |
|
06 |
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) |
3X |
|
Flow (A → B) |
||
|
07 |
up to 0.2 l/min |
0,2Q |
|
up to 0.6 l/min |
0,6Q |
|
|
up to 1.5 l/min |
1,5Q |
|
|
up to 3.0 l/min |
3Q |
|
|
up to 6.0 l/min |
6Q |
|
|
up to 10 l/min |
10Q |
|
|
up to 16 l/min |
16Q |
|
|
up to 25.0 l/min |
25Q |
|
|
up to 32.0 l/min |
32Q |
|
|
08 |
With check valve |
R |
|
Without check valve |
M |
|
|
Seal material |
||
|
09 |
FKM seals (other seals upon request) |
V |
|
Observe compatibility of seals with hydraulic fluid used. |
||
|
10 |
Further details in the plain text |
* |
| 1) Key with material no. R900008158 is included in the scope of delivery. |
Preferred types and standard units are contained in the EPS (standard price list).
general
|
Size |
6 | |
|
Weight (approx.) |
kg |
1.3 |
|
Installation position |
any | |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
6 | ||||||||||
|
Maximum operating pressure 1) |
Anschluss A |
bar |
315 | ||||||||
|
Pressure differential Δp with free return flow B → A |
See characteristic curves | ||||||||||
|
Minimum pressure differential |
bar |
6 … 14 | |||||||||
|
Pressure stable (qV max) to Δp = 315 bar |
% |
± 2 | |||||||||
|
Maximum flow |
l/min |
0.2 | 0.6 | 1.5 | 3 | 6 | 10 | 16 | 25 | 32 | |
|
Minimum flow |
up to 100 bar |
l/min |
0.01 | 0.03 | 0.05 | 0.07 | 0.1 | 0.25 | |||
|
up to 315 bar |
l/min |
0.03 | 0.05 | 0.07 | 0.1 | 0.05 | |||||
|
Hydraulic fluid |
Mineral oil (HL, HLP) according to DIN 51524, other hydraulic fluids on request | ||||||||||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | |||||||||
|
Viscosity range |
mm²/s |
10 … 800 | |||||||||
|
Maximum admissible degree of contamination of the hydraulic fluid 2) |
Class 20/18/15 according to ISO 4406 (c) | ||||||||||
| 1) | In applications with rectifier sandwich plate up to 210 bar |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 ±5 °C)
Flow dependent on the scale setting (flow control A → B)
Δp-qV characteristic curve via check valve (B → A) orifice closed
pE-qV characteristic curve
Temperature dependency at Δp = 20 bar
|
simplified |
Detailed |
|
|
without check valve; with external closing Type 2FRM 6 A…MV |
|
|
|
with check valve; with external closing Type 2FRM 6 A…RV |
|
|
Subplate mounting – version “A” and “B”
Dimensions in mm
|
1 |
Adjustment type "3" (lockable rotary knob with scale) |
|
2 |
Adjustment type "7" (rotary knob with scale) |
|
3 |
Identical seal rings for ports A, B, P, and T |
|
4 |
Space required to remove the key |
|
5 |
Bore Ø3 mm at version "B" not bored (without external closing) |
|
6 |
Name plate |
|
7 |
Position of the marking at port P |
|
8 |
Porting pattern according to DIN 24340 form A |
Subplate mounting:
Valve mounting screws (separate order)
without rectifier sandwich plate4 hexagon socket head cap screws
ISO 4762 - M5 x 30 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 7 Nm ± 10 %,
Material no. R913000316
with rectifier sandwich plate4 hexagon socket head cap screws
ISO 4762 - M5 x 70 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 7 Nm ± 10 %,
Material no. R913000325
Subplates (separate order)
Type G 341/01 (G1/4)
Type G 342/01 (G3/8)
Type G 502/01 (G1/2)
