BOSCH REXROTH
R900246971

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

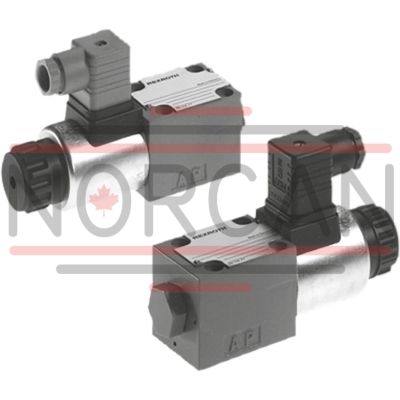

The Bosch Rexroth M-4SED6D1X/350CG96N9K4/P (R900246971) is a high-performance industrial hydraulic valve designed for efficient control of oil flow direction in hydraulic systems. This direct-actuated seat valve is equipped with a check valve insert in channel P, ensuring reliable operation. The model features a spool with symbol D, which indicates its specific flow pattern and functionality as per standard hydraulic symbols. This valve is notable for its concealed manual override and auxiliary actuation, providing additional control flexibility in various operational scenarios. It belongs to component series X, indicating the latest technological advancements and design optimizations from Bosch Rexroth. The M-4SED6D1X/350CG96N9K4/P valve can withstand a maximum pressure and has an electrical connection that conforms to EN standards. It includes a Connector pole PE for secure electrical connections. The product group ID highlights its categorization within Bosch Rexroth's extensive product offerings. Designed for subplate mounting, the valve adheres to NFPA T3.5.1 R2 D03 size standards, as well as CETOP D03 and ISO connection diagram specifications, ensuring compatibility with common industry practices. The supply voltage required for the solenoid actuation is 24 VDC, which is standard for many industrial applications. With four ports available for fluid transfer and two switching positions, this valve offers versatility in controlling fluid dynamics within a system. Its design incorporates NBR seals suitable for various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. The M-4SED6D1X/350CG96N9K4/P also meets CE conformity and adheres to the Low Voltage Directive of the EU as well as CSA approval according to CSA C22.2 No., ensuring compliance with international safety standards. With its robust construction and reliable performance characteristics, this Bosch Rexroth hydraulic valve is an essential component for sophisticated hydraulic systems requiring precise control of fluid flow direction.
