- Model:SWIVELHEADCGKA50KPL. Cylinder
Quantity in stock: 0
The Bosch Rexroth SWIVEL HEAD CGKA 50 KPL. (R900327368) is a high-quality industrial component designed for precision and durability. This swivel head is part of Bosch Rexroth's extensive range of hydraulic products, known for their robustness and reliability in demanding applications. The CGKA 50 KPL model is engineered to facilitate smooth pivotal movements in machinery, ensuring efficient transfer and control of forces within hydraulic systems. The product features a compact design that allows for integration into various machine configurations without requiring excessive space. It is manufactured with materials that are resistant to wear and corrosion, contributing to the swivel head's longevity and consistent performance over time. The model's precise engineering ensures minimal maintenance requirements, making it a cost-effective solution for continuous industrial operations. This particular swivel head is suitable for use in applications where there is a need for controlled, rotational movement between two parts of a machine, such as articulated arms or adjustable components. Its capability to withstand high-pressure conditions makes it an ideal choice for sectors that utilize hydraulic systems extensively, including manufacturing, automation, and construction equipment. Bosch Rexroth's commitment to quality is evident in the SWIVEL HEAD CGKA 50 KPL., which adheres to stringent industry standards to meet the expectations of various operational environments. This specific model enhances the functionality of machinery by providing reliable swiveling action essential for tasks requiring precision alignment and movement.
For applications outside these parameters, please consult us!

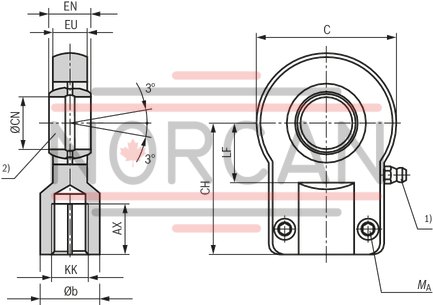

Dimensions: Swivel head CGKA - AP 6 (clampable)
ISO 8133
| 1) | Lubricating nipple, cone head form A according to DIN 71412 |
| 2) | Related bolt Ø h6 |
Dimensions: Swivel head CGKA - AP 6 (clampable)
|
Type |
Suitable for series |
KK |
AX |
Øb |
C |
CH |
ØCN |
EN |
EU |
LF |
MA 5) |
m 6) |
C0 7) |
Fadm 8) |
|||
|
|
|
|
min. |
|
max. |
|
|
3) |
|
|
|
max. |
min. |
|
|
(head) |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Nm |
kg |
kN |
kN |
||||
| CGKA 12 1) |
CDT3 CGT3 CST3 - - - - |
M10 x 1.25 | 15 | 17 | 40 | 42 |
js13 |
12 |
0 - 0.008 |
10 |
0 - 0.12 |
8 | 16 | 9.5 | 0.15 | 17 | 6.3 |
| CGKA 16 2) |
CDT3 CGT3 CST3 - - - - |
M12 x 1.25 | 17 | 21 | 45 | 48 |
js13 |
16 |
0 - 0.008 |
14 |
0 - 0.12 |
11 | 20 | 9.5 | 0.25 | 28.5 | 10.5 |
| CGKA 20 2) |
CDT3 CGT3 CST3 - - - - |
M14 x 1,5 | 19 | 25 | 55 | 58 |
js13 |
20 |
0 - 0.012 |
16 |
0 - 0.12 |
13 | 25 | 23 | 0.43 | 42.5 | 15.7 |
| CGKA 25 |
CDT3 CGT3 CST3 - - - - |
M16 x 1.5 | 23 | 30 | 65 | 68 |
js13 |
25 |
0 - 0.012 |
20 |
0 - 0.12 |
17 | 30 | 23 | 0.73 | 67 | 24.7 |
| CGKA 30 |
CDT3 CGT3 CST3 - - - - |
M20 x 1.5 | 29 | 36 | 80 | 85 |
js13 |
30 |
0 - 0.012 |
22 |
0 - 0.12 |
19 | 35 | 46 | 1.3 | 108 | 39.9 |
| CGKA 40 |
CDT3 CGT3 CST3 - - - - |
M27 x 2 | 37 | 45 | 100 | 105 |
js13 |
40 |
0 - 0.012 |
28 |
0 - 0.12 |
23 | 45 | 46 | 2.3 | 156 | 57.6 |
| CGKA 50 |
CDT3 CGT3 CST3 - - - - |
M33 x 2 | 46 | 55 | 125 | 130 |
js13 |
50 |
0 - 0.012 |
35 |
0 - 0.12 |
30 | 58 | 80 | 4.4 | 245 | 90.4 |
| CGKA 60 |
CDT3 CGT3 CST3 - - - - |
M42 x 2 | 57 | 68 | 160 | 150 |
js13 |
60 |
0 - 0.012 |
44 |
0 - 0.12 |
38 | 68 | 195 | 8.4 | 380 | 140.2 |
| CGKA 802 |
CDT3 CGT3 CST3 - - - - |
M48 x 2 | 64 | 90 | 205 | 185 |
js13 |
80 |
0 - 0.015 |
55 |
0 - 0.15 |
47 | 82 4) | 385 | 15.6 | 585 | 215.9 |
| CGKA 100 |
CDT3 CGT3 CST3 - - - - |
M64 x 3 | 86 | 110 | 240 | 240 |
js13 |
100 |
0 - 0.02 |
70 |
0 - 0.2 |
57 | 116 | 660 | 28 | 865 | 319.2 |
| 1) | Cannot be re-lubricated |
| 2) | Can be re-lubricated via lubricating hole |
| 3) | Related bolt Ø h6 |
| 4) | Dimensions may differ from the standard depending on the manufacturer |
| 5) | MA = tightening torqueThe swivel head must always be screwed against the shoulder of the piston rod. Afterwards, the clamping screws must be tightened with the specified tightening torque. |
| 6) | m = weight of swivel head |
| 7) | C0 = static load rating of the swivel head |
| 8) | Fadm = max. admissible load of the swivel head for increasing or alternating loads |
Notice:
Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
