BOSCH REXROTH
R900333704
$15,011.52 USD
- BOSCH REXROTH
- Material:R900333704
- Model:DBGT-1X/315P2
Quantity in stock: 0

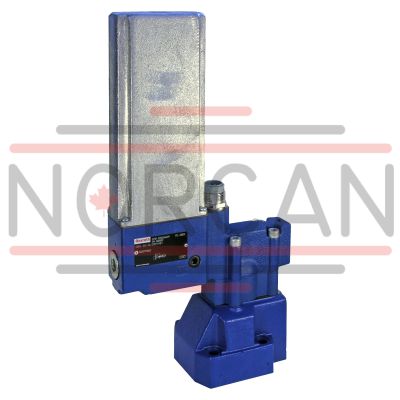

The Bosch Rexroth DBGT-1X/315P2 (R900333704) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in accordance with the set command value signal. This pilot-operated pressure relief valve is characterized by its spool symbol X Y and has a maximum pressure rating of 315 bar. It features an electrical actuation with external electronics and is equipped with a mating connector pole PE according to DIN standards. The DBGT-1X/315P2 valve is intended for subplate mounting and utilizes a DC motor with speed reduction transmission to adjust the system pressure. This adjustment is achieved by turning a cam that tensions a spring, leading to changes in pressure levels. The unit's main spool insert works in conjunction with the pilot control valve, which includes an electric motor as the pressure adjustment element. This model comes with either an actual value potentiometer or limit switch options for feedback on the cam position, allowing for precise control over the minimum and maximum pressures. The integrated VTVRM amplifier enables program control, further enhancing its capabilities. Additionally, it can accommodate up to two additional pressure switches to limit both the minimum and maximum pressures securely. The DBGT-1X/315P2 also boasts self-locking properties in case of power failure, ensuring that the adjusted pressure remains unchanged. With a flow capacity of up to 315 liters per minute and designed for use with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC, this valve meets diverse application requirements while providing robust performance. With its NBR seals and compatibility with standard supply voltages of 24 VDC, the DBGT-1X/315P2 promises reliable operation across numerous applications where precise pressure control is critical. It represents Bosch Rexroth's commitment to engineering excellence and innovation in hydraulic system components.
Size , X → Y, electrical with external amplifier,
Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Unpacked Weight: 5.42 kg
Pressure valves of type DBG are pilot-operated pressure relief valves. They are used for system pressure limitation. The pressure relief valves from this series mainly consist of a pilot control valve with electric motor as pressure adjustment element and main valve with main spool insert. The system pressure is set by means of a DC motor (16) with speed reduction transmission (17). The output shaft of the speed reduction transmission (17) turns the cam (14) that tensions the spring (8) via the spring plate (15) and thereby causes a pressure change. The pressure applied to channel A acts on the main spool (1.1). Simultaneously, pressure is applied to the spring-loaded side of the main spool (1.1) and to the pilot poppet (6) in the pilot control valve (7) via the control lines (4) and (5) which are equipped with nozzles (2.1, 2.2) and (3). If the system pressure exceeds the value set at the spring (8), the pilot poppet (6) opens. The signal for this is provided internally - with type DBG..–1X/.. via the control lines (12) and (4) from channel A; or externally – with type DBG..–1X/..X (XY) via the connection (13) and the control line (4). The pilot oil now flows via nozzle (2.1), control line (4), nozzle (2.2) and pilot poppet (6) into the spring chamber. From here, it is fed into the tank, either internally – with type DBG..–1X/.. via control line (10), or externally – with type DBG..–1X/..Y (XY) via control line (11). The compression spring (1.2) acts on the main spool (1.1) in closing direction, i. e. there is a pressure drop between side “A” and the spring-loaded side of the main spool (1.1). The flowing pilot oil volume is determined by the cross-section of the nozzles (2.1, 2.2) and by the pressure drop at the main spool (1.1). When the pressure in “A” has increased by the pressure drop at the main spool (1.1) in relation to the cracking pressure at the pilot poppet (6), the main spool (1.1) opens from “A” to “B”. The oil now flows from channel “A” to channel “B”, whilst the set operating pressure is maintained. The cam position (14) is reported back by the actual value potentiometer (18). Optionally, electric end switches can be installed instead of the actual value potentiometer (18) to limit the min. and max. pressure. For the version with limit switch, the min. adjustment time is 12 seconds for the pressure range pmin to pmax. The adjustment time of 12 seconds facilitates a sensitive start-up of the desired pressure in jog mode. For the version with actual value potentiometer, the min. adjustment time is 0.65 seconds for the pressure range pmin to pmax. The integrated amplifier type VT-VRM1-1 enables program control. With 2 additional pressure switches, the min. and max. pressure can be limited. If the energy supply is interrupted (cable break, fuse defect, short-circuit, etc.), the pressure adjusted at the valve remains unchanged for the version with limit switch.
| DC motor actuation |
| Pilot-operated |
| Pressure rating 315 bar |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | X → Y |
| Max. pressure | 315 |
| Electrical connection description | Mating connector 6-pole (5 + PE) according to DIN 43651 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with external electronics |
| Electrical connector | Mating connector 6-pole (5 + PE) |
| Max. flow | 600 |
| Type of connection | Subplate mounting |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 5.42 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
DBG |
T |
‒ |
1X |
/ |
* |
|
01 |
Pressure relief valve with DC motor actuation |
DBG |
|
02 |
separate pilot control valve asremote control valve (do not enter valve size) |
T |
|
03 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Pressure rating |
||
|
04 |
Set pressure up to 50 bar |
50 |
|
Set pressure up to 100 bar |
100 |
|
|
Set pressure up to 200 bar |
200 |
|
|
Set pressure up to 315 bar |
315 |
|
|
Set pressure up to 400 bar |
400 |
|
|
Pilot flow |
||
|
05 |
Pilot oil supply internal, pilot oil return internal |
no code |
|
External pilot oil supply, internal pilot oil return |
X |
|
|
Internal pilot oil supply, external pilot oil return |
Y |
|
|
External pilot oil supply, external pilot oil return |
XY |
|
|
Seal material |
||
|
06 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
07 |
Limit switch |
E1 |
|
Actual value potentiometer |
P2 |
|
|
08 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBGT | |
|
Size |
||
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
5.1 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Maximum operating pressure |
bar |
315 | |
|
Port A |
bar |
315 | |
|
Port B (internal pilot oil return) |
bar |
10 | |
|
Port B (external pilot oil return) |
bar |
315 | |
|
Port X |
bar |
315 | |
|
Port Y |
bar |
10 | |
|
Maximum set pressure |
Pressure rating 50 bar |
bar |
50 |
|
Pressure rating 100 bar |
bar |
100 | |
|
Pressure rating 200 bar |
bar |
200 | |
|
Pressure rating 315 bar |
bar |
315 | |
|
Pressure rating 400 bar |
bar |
400 | |
|
Minimum set pressure |
qv dependent (see characteristic curves) | ||
|
Maximum flow |
l/min |
12 | |
|
Pilot flow |
l/min |
1 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
2.8 … 380 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP |
NBR / FKM |
DIN 51524 |
|
Bio-degradable - insoluble in water |
HEES
|
FKM
|
VDMA24568
|
|
HETG
|
NBR / FKM |
||
|
HEPG
|
FKM
|
||
|
Important information on hydraulic fluids! Further information and information on the use of other hydraulic fluids on request! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.Bio-degradable: When using bio-degradable hydraulic fluids that are zinc-solving, zinc may accumulate in the fluid (700mg zinc per pole tube) |
|||
electrical
|
Type |
DBGT | |
|
Voltage type |
Direct voltage | |
|
Power supply |
V |
24 |
|
Nominal power with limit switch |
W |
18 |
|
Nominal power with actual value potentiometer |
W |
24 |
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | |
Control in jog mode with limit switch: Ordering code “E1”
|
Adjustment time, pmin ... pmax |
s |
12 |
|||||
|
Limit switch version: |
Microswitch |
30 V; 2 A DC |
|||||
|
electric load |
250 V; 5 A AC |
||||||
|
Pressure overrun: |
Pressure rating |
bar |
50 |
100 |
200 |
315 |
400 |
|
without short-circuit bridge |
bar |
1 |
2,5 |
5 |
7,5 |
10 |
|
|
with short-circuit bridge |
bar |
0,5 |
1 |
1,5 |
2 |
2,5 |
|
Adjustment with actual value potentiometer for cam position feedback: Ordering code “P2”
|
Adjustment time, pmin ... pmax |
s |
0,65 |
|||||
|
Potentiometer |
Resistance |
kΩ |
5 |
||||
|
Power |
W |
1,75 |
|||||
|
Adjustment hysteresis: breakout pressure - variation > 10 bar from nominal pressure |
|||||||
|
Pressure rating |
bar |
50 |
100 |
200 |
315 |
400 |
|
|
Hysteresis |
bar |
< 0,5 |
< 1 |
< 2,5 |
< 4 |
< 5 |
|
|
Adjustment hysteresis: breakout pressure - variation > 20 bar from nominal pressure |
|||||||
|
Pressure rating |
bar |
50 |
100 |
200 |
315 |
400 |
|
|
Hysteresis |
bar |
< 0,3 |
< 0,5 |
< 1 |
< 1,5 |
< 2 |
|
|
Repetition accuracy |
bar |
< 0,5 |
< 1 |
< 1,3 |
< 1,7 |
< 2 |
|
|
Valve amplifiers |
|||||||
|
Electric amplifier |
VT-VRM1-1-1X |
||||||
(measured at ν = 36 mm²/s and ϑOil = 50 °C)
Inlet pressure dependent on the flow; NG10
Size 10
Minimum set pressure dependent on the flow; NG 10
Size 10
Inlet pressure dependent on the flow; NG25
NG25
Minimum set pressure dependent on the flow; NG 25
NG25
Inlet pressure dependent on the flow; NG32
Size 32
Minimum set pressure dependent on the flow; NG 32
Size 32
Set pressure dependent on the flow; pressure rating 400 bar
Minimum set pressure dependent on the flow; pressure rating 400 bar
DBGC-1X/.. DBGT-1X/..
Connector connection at the DBG / DRG valve with actual value potentiometer
Connector connection at the DBG / DRG valve with end switch
Switching example: DBG / DRG valve with end switch
|
1 |
Pilot control valve |
|
2 |
DC motor |
|
3 |
“Y” port for “external” pilot oil return |
|
5 |
Name plate |
|
6 |
Mating connector |
|
9 |
Space required to remove the mating connector |
|
10 |
Valve mounting bores |
|
16 |
O-ring 9.25 x 1.78 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L
Tightening torque MA = 31 Nm ± 10%; material no. R913000543
