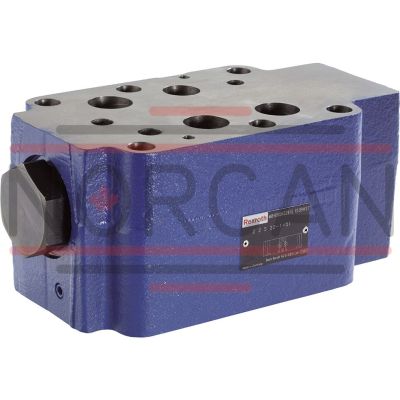

The Bosch Rexroth Z2S22A1-5X (R900433032) is a high-performance, mechanically actuated industrial hydraulic valve designed for reliable blocking of oil flow at selected ports. This seat valve is directly actuated with a spool symbol A A and can handle a maximum pressure with an electrical connection description as per its product group ID. It features a number of ports and mechanical actuation, with specifications including size A, max flow, and type of connection for interim assembly. The Z2S22A1-5X valve is equipped with an NFPA T.. R D SizeCETOP D Connection diagram and an ISO Connection diagram, indicating its compatibility with standard porting patterns. The device has multiple switching positions and comes in a specific weight. Its seals are made from NBR to ensure durability and resistance against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. This isolator valve type ZS functions as a releasable check valve in sandwich plate design which is essential for the leakage-free blocking of one or two actuator ports even during prolonged periods of inactivity. The free flow is allowed from direction A to A or B to B while blocking the opposite direction. The control spool mechanism facilitates movement between ball seat valves to allow fluid passage when necessary. Additionally, the Z2S22A1-5X boasts preopening features that help dampen decompression of pressurized liquid thus avoiding potential switching shocks. Its two-stage setup ensures secure unloading even at low pilot pressures. This sandwich plate valve is ideal for vertical stackings and offers various cracking pressures with preopening as standard. Check valve installation sets are available individually for this model, and special versions can be requested according to specific needs.


Size 25, A1 → A2, mechanically actuated

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Unpacked Weight: 12.72 kg

The isolator valve type Z2S is a releasable check valve in sandwich plate design.

It is used for the leakage-free blocking of one or two actuator ports, also in case of longer standstill times.

In direction A① to A② or B① to B②, there is a free flow; in the opposite direction, the flow is blocked.

If, for example, there is a flow through the valve in direction A① to A②, the control spool (1) is moved in the direction of the B side, opens the ball seat valve (2) and then pushes the poppet (3) off its seat. Hydraulic fluid can now flow from B➁ to B➀.

In order to allow the ball seat valve (2) to be safely closed, the control spool (1) must be hydraulically unloaded (see circuit example).



Pre-opening

Due to the pre-opening, there is a damped decompression of the pressurized liquid. Thus, possible switching shocks are avoided. The two-stage set-up with an increased control open ratio means even low pilot pressure can be unloaded securely.

Type Z2S 22 ‒…

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Type Z2S 22 A…

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Type Z2S 22 ‒…SO40

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Type Z2S 22 A…SO60

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Circuit example, schematic

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

1

Control spool, area A2

2

Ball, area A3

3

Poppet, area A1

4

Stop

5

Control spool, area A4

component side

plate side

Seat valve
Direct actuated
Size 25
Maximum flow 450 l/min
Component series 5X
Maximum operating pressure 315 bar
Spool symbolA1 → A2
Max. pressure315
Electrical connection description0
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationwith mechanical actuation
Size25
Max. flow450
Type of connectionInterim assembly
Connection diagram NFPANFPA T3.5.1 R2-2002 D08
Size_CETOPD08
Connection diagramISO 4401-08-08-0-05
Number of switching positions2
Weight12.72
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC

01

02

03

04

05

06

07

08

09

Z2S

22

5X

/

*

01

Check valve, Sandwich plate design

Z2S

02

Size 25

22

Leakage-free blocking

03

Channel A and B

Channel A

A

Channel B

B

Cracking pressure

04

3 bar

1

5 bar

2

7,5 bar

3

10 bar

4

05

Component series 50 ... 59 (50 ... 59: unchanged technical data and pin assignment)

5X

06

Surface without corrosion resistance

1)

no code

Seal material

07

NBR seals

no code

FKM seals

V

Observe compatibility of seals with hydraulic fluid used.

Special version

08

Without

no code

Control open by external port G1/4 (only version "A" and "B")

SO40

Control spool unloaded to port T

SO60

09

Further details in the plain text

*

1) Corrosion-resistant surface on request: e.g. "J50" thick film passivated (DIN 50979 Fe//Zn8//Cn//To)

general

Size

25

Weight

kg

12

Installation position

any

Ambient temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

hydraulic

Size

25

Maximum operating pressure

bar

315

Cracking pressure (in free direction)

3 / 5 / 7.5 / 10 bar

Maximum flow

l/min

450

Direction of flow

see symbols

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 500

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 20/18/15

Area ratio

With pre-opening

A3/A2 ~ 1/12.5 (see sectional drawing)

Version "SO60"

A1/A4 ~ 1/9 (see sectional drawing)
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HETG

NBR, FKM

ISO 15380

90221

HEES

FKM

Soluble in water

HEPG

FKM

ISO 15380

Flame-resistant

Water-free

HFDU

FKM

ISO 12922

90222

HFDR

FKM

Containing water

HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)

NBR

ISO 12922

90223

Important information on hydraulic fluids:

For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant - containing water: Maximum pressure differential per control edge 50 bar Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 … 100%. Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Δp-qV characteristic curves

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

component side

plate side

Examples

Version "A"

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Version "-"

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Version "B"

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Version "A…SO40"

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Version "A…SO60"

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Dimensions in mm

technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated
technical illustration-R900433032-Size 25, A1 → A2, mechanically actuated

Required surface quality of the valve contact surface

component side

plate side

1

Name plate

2

Through holes for valve mounting

3

Identical seal rings for ports A, B, P, and T

4

Identical seal rings for ports X, Y, L

5

Locking pins

6

Locating holes

7

Porting pattern according to ISO 4401-08-08-0-05

8

Plug screw SW46, tightening torque MA = 70 Nm

Type

Cracking pressure

Leakage-free blocking in channel

L1 in mm

L2 in mm

"no code"

1 + 2

"–"

14

14

3 + 4

"–"

44

44

1 + 2

A, B

14

14

3 + 4

A

44

14

B

14

44

"SO40"

1 + 2

A, B

14

14

3 + 4

A

44

14

B

14

44

"SO60"

1 + 2

A

14

14

3 + 4

A

44

14

B

14

44

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25

6

ISO 4762 - M12 10.9

-

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
