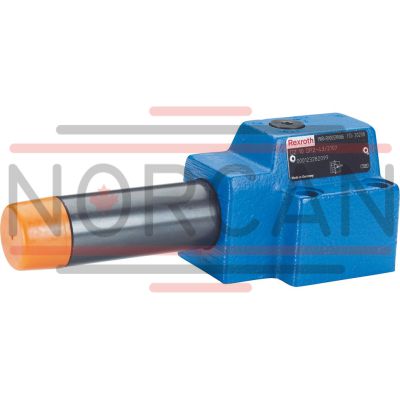

The Bosch Rexroth DZ10DP2-4X/210M (R900525300) is a high-performance industrial hydraulic valve designed for reliable pressure sequencing and control. This mechanically actuated spool valve is direct operated, with a spool symbol A B, ensuring precise operation for a variety of applications. It is capable of handling a maximum pressure as defined by the product's specifications, and it features multiple ports for versatile connectivity. The DZ10DP2-4X/210M valve operates by utilizing a compression spring that maintains the control spool in its initial blocked position. When pressure in channel A reaches the set value, the control spool shifts to enable flow from A to B without causing pressure drop in channel A. The sequencing pressure can be adjusted through various means including a rotary knob or threaded pin with hexagon and protective cap. This model offers flexibility with internal or external control signal options and leakage oil discharge that can be managed externally via port Y or internally via B. The potential increase in set cracking pressure due to internal leakage oil discharge is something users should be aware of when configuring their system. Optional features include a check valve for free return flow from channel B to A and a pressure gauge connection for monitoring sequencing pressure directly at the valve. Designed for subplate mounting, it adheres to ISO porting patterns and comes with different adjustment types to cater to user preferences. The Bosch Rexroth DZ10DP2-4X/210M valve is suitable for use with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC as indicated by its NBR seals. With its robust construction and precise operational capabilities, this valve stands out as an essential component in advanced hydraulic systems requiring dependable performance under varying conditions.
Size 10, A → B, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable pressure sequencing to setting.
Unpacked Weight: 3.16 kg
Valve type DZ 10 DP is a direct operated pressure sequence valve. It is applied for pressure-dependent connection of a second system. The sequencing pressure is set via the adjustment type (1).
The compression spring (2) holds the control spool (3) in initial position, the valve is blocked. The pressure in channel A is applied via the control line (4) at the spool face of the control spool (3) opposite the compression spring (2).
If the pressure in channel A reaches the set value of the compression spring (2), the control spool (3) is moved to the right and the connection from A to B is opened. The system connected to channel B is connected without a pressure drop in channel A.
The control signal is received internally via the control line (4) from channel A or externally via port X.
Depending on the use of the valve, leakage oil discharge is realized externally via port Y or internally via B.
Attention!
With internal leakage oil discharge, the set cracking pressure is increased by the pressure in channel B.
A check valve (5) can be optionally installed for free hydraulic fluid return flow from channel B to channel A.
A pressure gauge connection (6) enables control of the sequencing pressure at the valve.
Type DZ 10 DP1-4X/.XY..
| Spool valve |
| Direct actuated |
| Component series 4X |
| Size 10 |
| Maximum flow 80 l/min |
| Maximum operating pressure 210 bar |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A → B |
| Max. pressure | 210 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | with mechanical actuation |
| Size | 10 |
| Max. flow | 80 |
| Type of connection | Subplate mounting |
| Connection diagram | ISO 5781-06-07-0-16 |
| Number of switching positions | 2 |
| Weight | 3.16 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
DZ 10 DP |
– |
4X |
/ |
* |
|
01 |
Pressure sequence valve, direct operated Size 10 |
DZ 10 DP |
|
Adjustment type |
||
|
02 |
Rotary knob |
1 |
|
Grub screw with hexagon and protective cap |
2 |
|
|
Lockable rotary knob with scale |
3 1) |
|
|
Rotary knob with scale |
7 |
|
|
03 |
Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) |
4X |
|
Maximum sequencing pressure |
||
|
04 |
25 bar |
25 |
|
75 bar |
75 |
|
|
150 bar |
150 |
|
|
210 bar |
210 |
|
|
05 |
Internal pilot oil supply, internal leakage oil discharge |
no code |
|
External pilot oil supply, internal leakage oil discharge |
X |
|
|
Internal pilot oil supply, external leakage oil discharge |
Y |
|
|
External pilot oil supply, external leakage oil discharge |
XY |
|
|
06 |
With check valve |
no code |
|
Without check valve |
M |
|
|
Seal material |
||
|
07 |
NBR seals |
no code |
|
FKM seals (other seals upon request) |
V |
|
|
Observe compatibility of seals with hydraulic fluid used. |
||
|
08 |
Further details in the plain text |
* |
| 1) H-key with material no. R900008158 is included in the scope of delivery. |
Preferred types and standard units are specified in the EPS (standard price list).
general
|
Size |
10 | ||
|
Weight (approx.) |
kg |
3 | |
|
Installation position |
any | ||
|
Ambient temperature range |
NBR seals |
°C |
-30 … +80 |
|
FKM seals |
°C |
-20 … +80 | |
hydraulic
|
Size |
10 | ||
|
Maximum operating pressure |
Anschluss A |
bar |
210 |
|
Port X |
bar |
210 | |
|
Port Y |
bar |
160 | |
|
Maximum sequencing pressure |
adjustable |
bar |
25 75 150 210 |
|
Maximum flow |
l/min |
80 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range |
NBR seals |
°C |
-30 … +80 |
|
FKM seals |
°C |
-20 … +80 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
Maximum admissible degree of contamination of the hydraulic fluid 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Mineral oils and related hydrocarbons |
HL, HLP, HLPD |
NBR, FKM |
DIN 51524 |
|
|
Environmentally compatible |
Insoluble in water |
HETG |
NBR, FKM |
ISO 15380 |
|
HEES |
FKM |
|||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
|
|
Containing water |
Water-free |
HFDU, HFDR |
FKM |
ISO 12922 |
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
|
|
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)!Flame-resistant – containing water: Maximum operating pressure 210 bar Maximum hydraulic fluid temperature 60 °C Expected life cycle as compared to HLP hydraulic oil 30 % to 100 % |
||||
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 ±5 °C)
p-qV characteristic curves
Δp-qV characteristic curves
The characteristic curves apply to the pressure at the valve outlet p = 0 bar across the entire flow range.
Version "no code"
Version “X"
Version “Y”
Version “XY"
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A and B Identical seal rings for ports X and Y |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 Tightening torque MA = 20 Nm ± 10 % |
|
12 |
Locking pin |
|
13 |
Porting pattern according to ISO 5781-06-07-0-00 |
Subplates (separate order)
G 460/01 (G3/8)
G 461/01 (G1/2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws
ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
Friction coefficient µtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ±10 %,
material no. R913000116
