BOSCH REXROTH
R900542864

$441.05 USD

BOSCH REXROTH
Material:R900542864
Model:BEARING PEDESTAL CLCA 25 GABEL

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

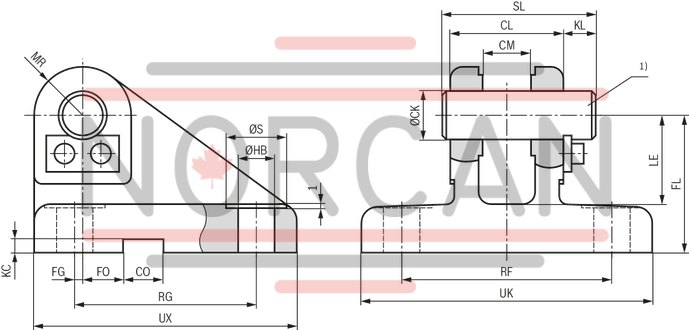

Dimensions: Clevis bracket CLCA (clampable)

ISO 8132, Form B

1)	Related bolt Ø m6 (bolt and bolt lock are included in the scope of delivery and are not mounted upon delivery)

Dimensions: Clevis bracket CLCA (clampable)

ØAL	ØMM	Type	Suitable for series	Nominal force	ØCK		CL		CM		CO		FG		FL		FO		ØHB		KC		KL	LE	MR	RF		RG		ØS	SL	UK	UX	m 4)
					3)																			min.	max.							max.	max.
mm				kN	mm		mm		mm		mm		mm		mm		mm		mm		mm	mm	mm	mm	mm	mm		mm		mm	mm	mm	mm	kg
25	14 mm / -	CLCA 10 1)	CDL2 - - - - - -	5	10	H9	24	h16	10	A12	8	N9	2	js14	32	js12	10	js14	6.6	H13	3.3	+ 0.3 0	8	22	10	39	js14	44	js14	11	34	56	60	0.33
25	14 mm / -	CLCA 12 2)	CDM1 CGM1 CSM1 - - - -	8	12	H9	28	h16	12	A12	10	N9	2	js14	34	js12	10	js14	9	H13	3.3	+ 0.3 0	8	22	12	52	js14	45	js14	15	38	72	65	0.45
25	18 mm / -		CDM1 CGM1 CSM1 - - - -	8	12	H9	28	h16	12	A12	10	N9	2	js14	34	js12	10	js14	9	H13	3.3	+ 0.3 0	8	22	12	52	js14	45	js14	15	38	72	65	0.45
32	18 mm / -		CDL2 - - - - - -	8	12	H9	28	h16	12	A12	10	N9	2	js14	34	js12	10	js14	9	H13	3.3	+ 0.3 0	8	22	12	52	js14	45	js14	15	38	72	65	0.45
25	18 mm / -	CLCA 16 2)	CDM1 CGM1 CSM1 - - - -	12.5	16	- -	36	h16	16	A12	16	N9	3.5	js14	40	js12	10	js14	11	H13	4.3	+ 0.3 0	8	27	16	65	js14	55	js14	18	46	90	80	1
32	18 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	16	- -	36	h16	16	A12	16	N9	3.5	js14	40	js12	10	js14	11	H13	4.3	+ 0.3 0	8	27	16	65	js14	55	js14	18	46	90	80	1
32	22 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	16	- -	36	h16	16	A12	16	N9	3.5	js14	40	js12	10	js14	11	H13	4.3	+ 0.3 0	8	27	16	65	js14	55	js14	18	46	90	80	1
32	22 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	16	- -	36	h16	16	A12	16	N9	3.5	js14	40	js12	10	js14	11	H13	4.3	+ 0.3 0	8	27	16	65	js14	55	js14	18	46	90	80	1
40	22 mm / -	CLCA 20	CDL2 CDM1 CGM1 CSM1 - - -	20	20	H9	45	h16	20	A12	16	N9	7.5	js14	45	js12	10	js14	11	H13	4.3	+ 0.3 0	10	30	20	75	js14	70	js14	18	58	100	95	1.5
40	28 mm / -	CLCA 20	CDM1 CGM1 CSM1 - - - -	20	20	H9	45	h16	20	A12	16	N9	7.5	js14	45	js12	10	js14	11	H13	4.3	+ 0.3 0	10	30	20	75	js14	70	js14	18	58	100	95	1.5
40	25 mm / -	CLCA 25	CDL2 CDH2 CGH2 CSH2 - - -	32	25	H9	56	h16	25	A12	25	N9	10	js14	55	js12	10	js14	13.5	H13	5.4	+ 0.3 0	10	37	25	90	js14	85	js14	20	69	120	115	3
40	28 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	32	25	H9	56	h16	25	A12	25	N9	10	js14	55	js12	10	js14	13.5	H13	5.4	+ 0.3 0	10	37	25	90	js14	85	js14	20	69	120	115	3
50	28 mm / -		CDL2 CDM1 CGM1 CSM1 - - -	32	25	H9	56	h16	25	A12	25	N9	10	js14	55	js12	10	js14	13.5	H13	5.4	+ 0.3 0	10	37	25	90	js14	85	js14	20	69	120	115	3
50	36 mm / -		CDM1 CGM1 CSM1 - - - -	32	25	H9	56	h16	25	A12	25	N9	10	js14	55	js12	10	js14	13.5	H13	5.4	+ 0.3 0	10	37	25	90	js14	85	js14	20	69	120	115	3
50	32 mm / -	CLCA 32	CDL2 CDH2 CGH2 CSH2 - - -	50	32	H9	70	h16	32	A12	25	N9	14.5	js14	65	js12	6	js14	17.5	H13	5.4	+ 0.3 0	13	43	32	110	js14	110	js14	26	87	145	145	4.5
50	36 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	50	32	H9	70	h16	32	A12	25	N9	14.5	js14	65	js12	6	js14	17.5	H13	5.4	+ 0.3 0	13	43	32	110	js14	110	js14	26	87	145	145	4.5
63	36 mm / -		CDL2 CDM1 CGM1 CSM1 - - -	50	32	H9	70	h16	32	A12	25	N9	14.5	js14	65	js12	6	js14	17.5	H13	5.4	+ 0.3 0	13	43	32	110	js14	110	js14	26	87	145	145	4.5
63	45 mm / -		CDM1 CGM1 CSM1 - - - -	50	32	H9	70	h16	32	A12	25	N9	14.5	js14	65	js12	6	js14	17.5	H13	5.4	+ 0.3 0	13	43	32	110	js14	110	js14	26	87	145	145	4.5
63	40 mm / -	CLCA 40	CDL2 CDH2 CGH2 CSH2 - - -	80	40	H9	90	h16	40	A12	36	N9	17.5	js14	76	js12	6	js14	22	H13	8.4	+ 0.3 0	16	52	40	140	js14	125	js14	33	110	185	170	8.5
63	45 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	80	40	H9	90	h16	40	A12	36	N9	17.5	js14	76	js12	6	js14	22	H13	8.4	+ 0.3 0	16	52	40	140	js14	125	js14	33	110	185	170	8.5
80	45 mm / -		CDL2 CDM1 CGM1 CSM1 - - -	80	40	H9	90	h16	40	A12	36	N9	17.5	js14	76	js12	6	js14	22	H13	8.4	+ 0.3 0	16	52	40	140	js14	125	js14	33	110	185	170	8.5
80	56 mm / -		CDM1 CGM1 CSM1 - - - -	80	40	H9	90	h16	40	A12	36	N9	17.5	js14	76	js12	6	js14	22	H13	8.4	+ 0.3 0	16	52	40	140	js14	125	js14	33	110	185	170	8.5
80	50 mm / -	CLCA 50	CDL2 CDH2 CGH2 CSH2 - - -	125	50	H9	110	h16	50	A12	36	N9	25	js14	95	js12	0	js14	26	H13	8.4	+ 0.3 0	19	65	50	165	js14	150	js14	40	133	215	200	13.5
80	56 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	125	50	H9	110	h16	50	A12	36	N9	25	js14	95	js12	0	js14	26	H13	8.4	+ 0.3 0	19	65	50	165	js14	150	js14	40	133	215	200	13.5
100	56 mm / -		CDL2 CDM1 CGM1 CSM1 - - -	125	50	H9	110	h16	50	A12	36	N9	25	js14	95	js12	0	js14	26	H13	8.4	+ 0.3 0	19	65	50	165	js14	150	js14	40	133	215	200	13.5
100	70 mm / -		CDM1 CGM1 CSM1 - - - -	125	50	H9	110	h16	50	A12	36	N9	25	js14	95	js12	0	js14	26	H13	8.4	+ 0.3 0	19	65	50	165	js14	150	js14	40	133	215	200	13.5
100	63 mm / -	CLCA 63	CDL2 CDH2 CGH2 CSH2 - - -	200	63	H9	140	h16	63	A12	50	N9	33	js14	112	js12	0	js14	33	H13	11.4	+ 0.3 0	20	75	63	210	js14	170	js14	48	164	270	230	23.4
100	70 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	200	63	H9	140	h16	63	A12	50	N9	33	js14	112	js12	0	js14	33	H13	11.4	+ 0.3 0	20	75	63	210	js14	170	js14	48	164	270	230	23.4
125	70 mm / -		CDL2 CDM1 CGM1 CSM1 - - -	200	63	H9	140	h16	63	A12	50	N9	33	js14	112	js12	0	js14	33	H13	11.4	+ 0.3 0	20	75	63	210	js14	170	js14	48	164	270	230	23.4
125	90 mm / -		CDM1 CGM1 CSM1 - - - -	200	63	H9	140	h16	63	A12	50	N9	33	js14	112	js12	0	js14	33	H13	11.4	+ 0.3 0	20	75	63	210	js14	170	js14	48	164	270	230	23.4
125	80 mm / -	CLCA 80	CDL2 CDH2 CGH2 CSH2 - - -	320	80	H9	170	h16	80	A12	50	N9	45	js14	140	js12	0	js14	39	H13	11.4	+ 0.3 0	26	95	80	250	js14	210	js14	57	202	320	280	38.5
125	90 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	320	80	H9	170	h16	80	A12	50	N9	45	js14	140	js12	0	js14	39	H13	11.4	+ 0.3 0	26	95	80	250	js14	210	js14	57	202	320	280	38.5
160	90 mm / -		CDM1 CGM1 CSM1 - - - -	320	80	H9	170	h16	80	A12	50	N9	45	js14	140	js12	0	js14	39	H13	11.4	+ 0.3 0	26	95	80	250	js14	210	js14	57	202	320	280	38.5
160	110 mm / -		CDM1 CGM1 CSM1 - - - -	320	80	H9	170	h16	80	A12	50	N9	45	js14	140	js12	0	js14	39	H13	11.4	+ 0.3 0	26	95	80	250	js14	210	js14	57	202	320	280	38.5
140	90 mm / -	CLCA 90	CDH2 CGH2 CSH2 - - - -	400	90	H9	190	h16	90	A12	63	N9	47.5	js14	160	js12	0	js14	45	H13	12.4	+ 0.3 0	28	108	90	280	js14	235	js14	66	224	360	320	-
140	100 mm / -	CLCA 90	CDH2 CGH2 CSH2 - - - -	400	90	H9	190	h16	90	A12	63	N9	47.5	js14	160	js12	0	js14	45	H13	12.4	+ 0.3 0	28	108	90	280	js14	235	js14	66	224	360	320	-
160	100 mm / -	CLCA 100	CDL2 CDH2 CGH2 CSH2 - - -	500	100	H9	210	h16	100	A12	63	N9	52.5	js14	180	js12	0	js14	52	H13	12.4	+ 0.3 0	30	120	100	315	js14	250	js14	76	246	405	345	99.2
160	110 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	500	100	H9	210	h16	100	A12	63	N9	52.5	js14	180	js12	0	js14	52	H13	12.4	+ 0.3 0	30	120	100	315	js14	250	js14	76	246	405	345	99.2
200	110 mm / -		CDM1 CGM1 CSM1 - - - -	500	100	H9	210	h16	100	A12	63	N9	52.5	js14	180	js12	0	js14	52	H13	12.4	+ 0.3 0	30	120	100	315	js14	250	js14	76	246	405	345	99.2
200	140 mm / -		CDM1 CGM1 CSM1 - - - -	500	100	H9	210	h16	100	A12	63	N9	52.5	js14	180	js12	0	js14	52	H13	12.4	+ 0.3 0	30	120	100	315	js14	250	js14	76	246	405	345	99.2
180	110 mm / -	CLCA 110	CDH2 CGH2 CSH2 - - - -	635	110	H9	240	h16	110	A12	80	N9	62.5	js14	200	js12	0	js14	52	H13	15.4	+ 0.3 0	31	138	110	335	js14	305	js14	76	277	425	400	-
180	125 mm / -	CLCA 110	CDH2 CGH2 CSH2 - - - -	635	110	H9	240	h16	110	A12	80	N9	62.5	js14	200	js12	0	js14	52	H13	15.4	+ 0.3 0	31	138	110	335	js14	305	js14	76	277	425	400	-
200	125 mm / -	CLCA 125	CDL2 CDH2 CGH2 CSH2 - - -	500	125	H9	270	h16	125	A12	80	N9	75	js14	230	js12	0	js14	52	H13	15.4	+ 0.3 0	32	170	125	365	js14	350	js14	76	310	455	450	174.1
200	140 mm / -	CLCA 125	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	500	125	H9	270	h16	125	A12	80	N9	75	js14	230	js12	0	js14	52	H13	15.4	+ 0.3 0	32	170	125	365	js14	350	js14	76	310	455	450	174.1

1)	Washer DIN 988 10 x 16 x 0.5 mm necessary
2)	Washer DIN 988 12 x 18 x 1 mm necessary
3)	Related bolt Ø m6 (bolt and bolt lock are included in the scope of delivery and are not mounted upon delivery)
4)	m = weight of clevis bracket

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.

The clevis brackets are suitable for attachment in case of type of mounting MP5 and at the swivel head.
