BOSCH REXROTH
R900779644
$1,545.27 USD
- BOSCH REXROTH
- Material:R900779644
- Model:VT-MRPA1-100-1X/V0/0
Quantity in stock: 0

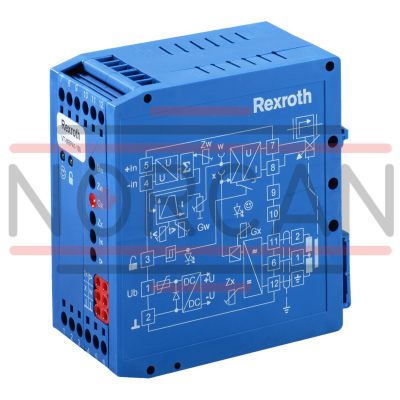

The Bosch Rexroth VT-MRPA1-100-1X/V0/0 (R900779644) is a sophisticated valve amplifier module designed for precise control of proportional valves with solenoid actuation and position feedback. This model is engineered to facilitate smooth commissioning and operation, ensuring reliable performance in various applications. The VT-MRPA1-100-1X/V0/0 can be easily installed on a DIN rail and features electrical connections via screw terminals, promoting a secure and straightforward setup. The unit operates on a supply voltage of 24 VDC and incorporates an integrated power supply with a making current limiter that mitigates high inrush current peaks. Additionally, the module includes features for command value presetting, which combines an external command signal with an adjustable zero point offset to regulate the valve's pressure output accurately. An enable function is present to activate the current output stages smoothly, indicated by an LED, preventing abrupt valve movements by utilizing set ramp times. The ramp generator within the VT-MRPA1-100-1X/V0/0 limits the rate of change in control output, while an amplitude attenuator allows for adjustment of maximum values to meet specific hydraulic needs. The device also includes an oscillator for generating control signals for inductive position transducers, a demodulator that provides actual value signals of the spool position, and a controller optimized to minimize valve hysteresis. The current output stage is designed to be short-circuit proof and will shut down safely in case of internal faults or if the enable signal is absent. Fault recognition capabilities enhance safety by monitoring potential cable breaks or short circuits on the position transducer cable as well as overcurrents at the output stage. With its modular design compatible with DBETRX valves, this amplifier stands out for its reliability and adaptability in controlling proportional hydraulics systems effectively.
Valve amplifier for proportional directional valves with 1 solenoid and position feedback
Adjusted to valves. Short commissioning time.
Unpacked Weight: 0.225 kg
General information
The amplifier modules are snapped onto top hat rails according to EN 60715. The electrical connection is established via screw terminals. The modules are operated at 24 V direct voltage.
Power supply unit [1]
The amplifier modules have a power supply unit with making current limiter. This unit supplies all internally required positive and negative supply voltages. The making current limiter prevents high making current peaks.
Command value presetting
The internal command value signal is
calculated from the total [3] of the external command value signal available at the differential input [2] and the zero point offset (zero point potentiometer "Zw").
A positive command value results in a current increase in the solenoid and thus a pressure increase in the valve.
Enable function [11]
The enable function enables the current output stages and forwards the internal command value signal to the ramp generator. The enable signal is indicated by an LED on the front plate. If enable is connected, the internal command value is changed (with any kind of command value presetting) by the set ramp time. Thus, a controlled valve does not open abruptly.
Ramp generator [4]
The ramp generator limits the incline of the control output. The amplitude attenuator does not extend or shorten the ramp time.
Information on ramp time settings and measurement:
|
Value at measuring socket |
U/V |
5 |
3 |
2 |
1 |
0.5 |
0.3 |
0.2 |
0.1 |
0.05 |
0.03 |
0.02 |
|
Current ramp time (±20 %) |
t/ms |
20 |
33 |
50 |
100 |
200 |
333 |
500 |
1000 |
2000 |
3333 |
5000 |
Formula for calculation of the ramp times:
t in ms, U in volt at the measuring socket
Amplitude attenuator [5]
By means of the amplitude attenuator "Gw", the maximum value can be adjusted to the hydraulic requirements in a range between 0 and 100 %.
Amplitude limiter [6]
The internal command value is limited to 0 % and 110 %.
Oscillator [9]
The oscillator creates the control signal for the inductive position transducer.
Demodulator [10]
The demodulator supplies the actual value signal of the control spool position from the position transducer signal.
+100 % ≙ +10 V at measuring socket "x"
Controller for the control spool position [7]
The position controller is intended to minimize the valve hysteresis and is optimized in a valve-specific manner.
Current output stage [8]
The current output stage creates the clocked solenoid current for the proportional valve. The solenoid current is limited to approx. 1.85 A. The output stage output is short-circuit-proof. The output stage is de-energized in case of an internal fault signal or if the enable signal is missing.
Fault recognition [14]
The position transducer cable is monitored for cable break and short-circuits on the primary side as well as for over-currents at the output stage.
[ ] = Assignment to the block diagram
| For controlling proportional valves DBETR-1X |
| Communication: Command value input 0 ... 10 V |
| Electrical connection: Screw terminals |
| Installation on DIN rail |
| Component series 1X |
| For valves: DBETR-1X |
| Analog, modular design |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 9,10,11,12,13,14 |
| Electrical connector | Screw terminals |
| Supply voltage | 24 VDC |
| Design | Module |
| Weight | 0.225 |
| Connectivity | Analog, command value 0 … 10 V |
|
01 |
Valve amplifier for proportional pressure valves with electrical position feedback, analog, modular design |
VT-MRPA1 |
|
02 |
For valves: DBETR-1X |
100 |
|
03 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
04 |
Version: standard |
V0 |
|
05 |
Option: standard |
0 |
|
06 |
Further details in the plain text |
* |
|
01 |
02 |
03 |
04 |
05 |
06 |
|||||
|
VT-MRPA1 |
‒ |
100 |
‒ |
1X |
/ |
V0 |
/ |
0 |
/ |
* |
General
|
Component series |
1X | |
|
Type of electronics |
Analog | |
|
Design |
Modul |
Voltage supply
|
Operating voltage |
nominal |
U |
V |
24 |
|
Lower limit value |
UB(t)min |
V |
18 | |
|
Upper limit value |
UB(t)max |
V |
35 | |
|
Power consumption |
max. |
PS max |
VA |
24 |
|
Current consumption |
max. |
I |
A |
2 |
|
Fuse |
Thermal overload protection (with restart if the value falls below the temperature threshold) | |||
Analog inputs
|
Command value |
Voltage (differential input) |
U |
V |
0 ... 10 | |
|
Voltage (differential input) |
Input resistance |
R |
kΩ |
≥ 50 | |
Digital inputs
|
Enable |
On (active) 1) |
U |
V |
8.5 ... UB |
|
Off (inactive) |
U |
V |
0 ... 6.5 |
| 1) | RE > 100 kΩ |
Solenoid outputs
|
Solenoid current |
max. |
Imax |
A A |
1.85 |
|
Clock frequency (freely clocking) |
f |
Hz |
5 kHz | |
|
Solenoid output |
other properties |
Short-circuit-proof, clocked | ||
Position transducer
|
Oscillator voltage |
U |
V |
2 (I = 10 mA) |
|
Oscillator frequency |
U |
V |
5.6 |
Adjustment options
|
Zero point calibration |
% |
± 10 | |
|
Amplitude attenuator 1) |
for command value |
% |
0 ... 110 |
|
Zero point |
Druckistwert |
% |
± 10 |
|
Ramp time up/down |
s |
0.02 … 5 | |
| 1) | Applies to a zero point setting of 0 %. |
Measuring sockets
|
Command value |
"w" |
V |
0 ... 10 | |
|
Ramp time |
“down" |
s |
0.01 ... 5 | |
|
“up" |
s |
0.02 ... 5 | ||
|
Actual value |
"x" |
V |
0 ... 10 | |
Displays
|
LED display |
green |
Ready for operation | |
|
yellow |
Enable |
Supplementary information
|
Anschlussart |
12 screw terminals | ||
|
Mounting type |
Top hat rail TH 35-7.5 according to EN 60715 | ||
|
Type of protection according to EN 60529 |
IP 20 | ||
|
Ambient temperature range |
ϑ |
°C |
0 … 50 |
|
Storage temperature range |
ϑ |
°C |
-25 … 70 |
|
Weight |
m |
kg |
0.14 |
For applications outside these parameters, please consult us!
Notice:
For information on environment simulation testing for the fields EMC (electro-magnetic compatibility), climate and mechanical load, see data sheet 30221-U.
LED displays
|
|
Ready for operation (green) |
|
|
Enable (yellow) |
Potentiometer
|
Gw |
Amplitude attenuator |
|
Gx |
Sensitivity actual value |
|
Zw |
Zero point command value |
|
Zx |
Zero point actual value |
|
t <
|
Ramp time "Ramp up" |
|
t >
|
Ramp time "Ramp down" |
Measuring sockets
|
t <
|
Ramp time "Ramp up" |
|
t >
|
Ramp time "Ramp down" |
|
x |
Actual value |
|
w |
Command value |
|
⊥ |
Reference potential |
|
Zw |
Zero point command value |
|
Zx |
Zero point actual value |
|
t <
|
Ramp time "Ramp up" |
|
t >
|
Ramp time "Ramp down" |
|
Gw |
Amplitude attenuator |
|
Gx |
Sensitivity actual value |
|
w |
Command value |
|
x |
Actual value |
|
|
Ready for operation |
|
|
Enable |
|

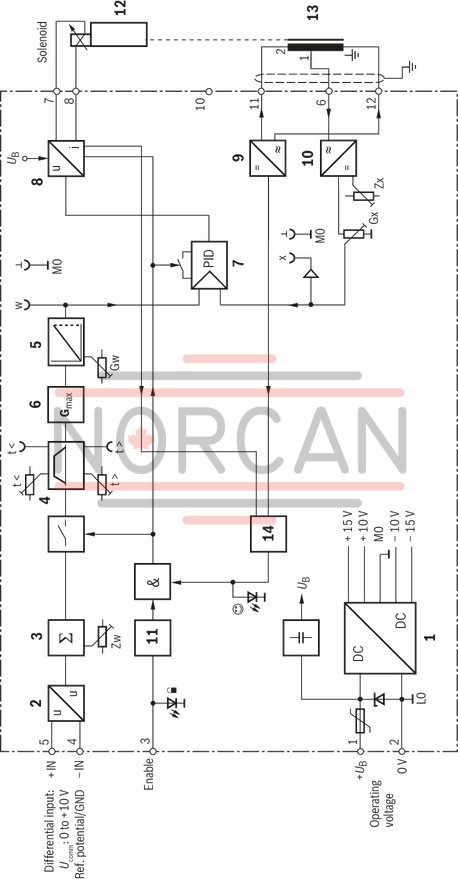

1 |
Power supply unit |
|
2 |
Differential amplifier |
|
3 |
Command value summation |
|
4 |
Ramp generator |
|
5 |
Amplitude attenuator |
|
6 |
Amplitude limiter |
|
7 |
Valve position controller |
|
8 |
Power output stage |
|
9 |
Oscillator |
|
10 |
Demodulator |
|
11 |
Enable |
|
12 |
Proportional valve |
|
13 |
Position transducer |
|
14 |
Fault recognition |

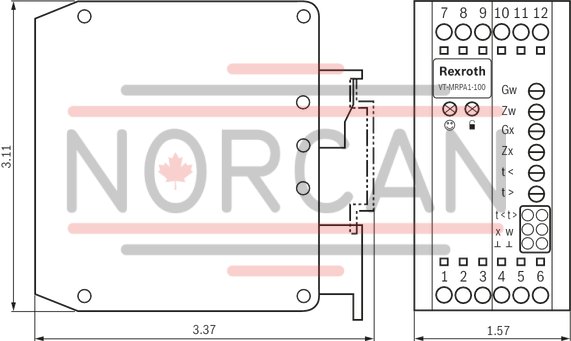

Dimensions in mm
Dimensions in mm
The amplifier module may only be wired when de-energized.
Do not lay lines close to power cables.
Do not use free-wheeling diodes in the solenoid conductors.
The distance to aerial lines, radios, and radar systems has to be at least 1 m.
Always shield command value and position transducer lines; connect shielding to protective earthing (PE) on the module side.
In some cases (e.g. if PE is subject to strong interference) it can be necessary to connect the shield of the position transducer line directly to the LO of the amplifier module; other side open (risk of ground loops).
Recommendation: Also shield the solenoid conductors.
For solenoid conductors up to a length of 50 m, use cable type LiYCY 1.5 mm2.
For greater lengths, please contact us.
Do not connect terminal "earthing symbol" of the position transducer connector to "PE".
For switching command values, relays with gold-plated contacts have to be used (low voltages, low currents).
Only carry out measurements at the module using instruments with Ri > 100 kΩ.
With a strongly fluctuating operating voltage, it may in individual cases be necessary to use an external smoothing capacitor with a capacity of at least 2200 µF.
Recommendation:
Capacitor module VT 11110 (see data sheet 30750); sufficient for up to 3 amplifier modules
Notice:
When exchanging VT 11025, VT 11033 or VT 11034, please observe the different terminal assignment of the position transducer connector. Terminals 6 and 12 are swapped.
Setting information
Requirements: The system-specific circuitry must have been completed.
Zero point command value
Apply enable signal
Set the external command value presetting to zero
Set the internal command value to zero using the "Zw" zero point potentiometer and carry out a check at measuring socket "w"
Zero point actual value
Enable signal "OFF" or pull solenoid plug (valve moves to mechanical end position)
With potentiometer "Zx", set the actual value at measuring socket "x" to zero.
Ramp times
Set ramp time according to formula or table (see functional description "Ramp generator”) and check it at the "t >" and "t <" measuring sockets
Maximum values
Notice:
Before comparing the maximum value, the zero point must have been set correctly.
Externally preset a command value of 100 %
Set maximum control output using the "Gw" potentiometer and carry out a check at measuring socket "w"
