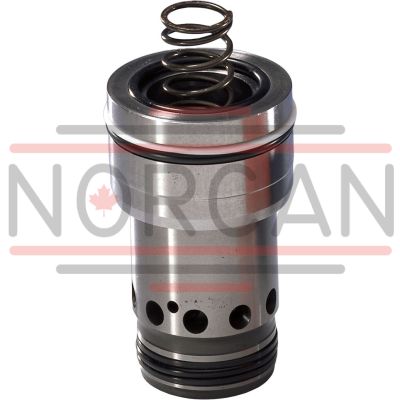

The Bosch Rexroth LC16DR40E7X/ (R900912560) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a preset value. This hydraulically actuated spool valve features a pilot-operated control with a spool symbol B A, ensuring precise operation under various conditions. It is capable of handling a maximum pressure as specified in its product group ID, and it comes with multiple ports of size B. The maximum flow rate and connection type are designed to meet stringent application requirements. The LC16DR40E7X/ valve is constructed as a way cartridge valve for pressure functions, utilizing pilot operation in both seat and spool designs. Its power section, crafted as a cartridge valve, fits into standardized receiving holes according to DIN ISO norms and is secured with a control cover. For manual or electrically proportional pressure adjustments, the pilot control valve is either integrated into or mounted on the control cover following DIN standards. This flexibility allows for various pressure functions by combining cartridge valves with different control covers. In terms of functionality, the LC16DR40E7X/ offers a pressure reducing feature with an open rest position. Its design eliminates effective areas at port B, ensuring that there are no unintended forces acting on the spool. When used with pilot control valves like type LFA..DB...., this cartridge valve maintains the set pressure at port A by directing it through an orifice to the spring side of the spool. The spring force holds the spool open for free flow from port B to port A until the set pressure is reached; then it closes to reduce pressure according to its characteristics. Finally, this Bosch Rexroth hydraulic valve uses NBR seals and is compatible with several types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. It provides robust performance in demanding applications where precise hydraulic control is essential.


Size 16, B → A, hydraulically actuated

Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.

Unpacked Weight: 0.2 kg

General

2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).

The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.

By combination of cartridge valves with the control covers, different pressure functions can be realized. .

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

Pressure reducing function

Rest position open

The cartridge valve for the pressure reducing function is designed as spool valve without area difference (no effective areas at port B).

As pilot control valve, identical cover types as for the pressure relief function are applied (type LFA..DB...).

The effective pressure at port A is directed via the pilot oil supply orifice to the spring side of the spool. Under the performance limit and the pressure set at the pilot control valve, the spool is pressure-compensated and retained in open position by the spring force to enable free flow from port B to port A.

On reaching the set pressure, the spool is closed and the pressure at port A is reduced according to the pressure-flow characteristics.

Spool valve
Pilot-operated
Spool symbolB → A
Max. pressure315
Productgroup ID9,10,11,12,13,14
Number of ports2
Type of actuationwith hydraulic actuation
Size16
Max. flow175
Type of connectionCartridge valve
Connection diagramISO 7368-06-1-1-16
Number of switching positions2
Weight0.2
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC

Type

01

Cartridge valve

LC

Size

02

NG 16

16

NG 25

25

NG 32

32

NG 40

40

NG 50

50

NG 63

63

Version

03

Pressure relief function

DR

Cracking pressure

04

Cracking pressure 0 bar (without spring)

00

Cracking pressure approx. 2 bar

20

Cracking pressure approx. 3 bar

1)

30

Cracking pressure approx. 4 bar

40

Cracking pressure approx. 5 bar (NG16, 25 and 32 only)

50

Cracking pressure approx. 8 bar

2)

80

Damping

05

Piston without precision grooves

E

Component series

06

Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions)

7X

Seal material

07

NBR seals

no code

FKM seals

V

01

02

03

04

05

06

07

LC

DR

E

7X

/

Additional preferred types and standard units are specified in the EPS (standard price list).

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

hydraulic

Size

16 25 32 40 50 63

Maximum operating pressure

Port A

bar

315

Port B

bar

315

Maximum flow

LC..DR20.../..

l/min

100 200 300 750 1000 1600

LC..DR40.../..

l/min

150 300 450 1000 1300 2000

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524; fast biodegradable hydraulic fluids according to VDMA 24568 ; HETG (rape seed oil); HEPG (polyglycols); HEES (synthetic esters), other hydraulic fluids on request

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 380

Maximum admissible degree of contamination of the hydraulic fluid 1)

Class 20/18/15 according to ISO 4406 (c)
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 16 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 25 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 32 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 40 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 50 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 63 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900912560-Size 16, B → A, hydraulically actuated
technical illustration-R900912560-Size 16, B → A, hydraulically actuated

Version "E"

Version “D”

Area ratio
A1 : A2 = 2 : 1
Version "…A.E…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.E…"

Area ratio
A1 : A2 = 2 : 1
Version "…A.D…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.D…"

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

Installation bore and connection dimensions according to ISO 7368

Dimensions in mm

technical illustration-R900912560-Size 16, B → A, hydraulically actuated

1

Depth of fit

2

Control dimension

3

If a different diameter is used for port B than ØD3 or (ØD3*), the distance from the cover support surface to the bore center must be calculated.

4

Port B may be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged.

7

At Ø ≤45 mm → Fitting H8 admissible

NG

ØD1

ØD2

ØD3/(ØD3*)

ØD4

ØD5

ØD6 1)

ØD7

H1/(H1*)

H2

H3

H4

H5

H6

H7

H8

H9

L1

L2

L3

L4

L5

W

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

16 32 H7
-
16 16
25
25 H7
-
M8 8 4 H13
-
35
29.5
56 43 20 11 2 20 2 0.5 65
80
46 23 25 10.5 0.05
25 45 H7
-
25 25
32
34 H7
-
M12 6 6 H13
-
44
40.5
72 58 25 12 2.5 30 2.5 1 85
-
58 29 33 16 0.05
32 60 H7
-
32 32
40
45 H7
-
M16 8 6 H13
-
52
48
85 70 35 13 2.5 30 2.5 1.5 102
-
70 35 41 17 0.1
40 75 H7
-
40 40
50
55 H7
-
M20 10 6 H13
-
64
59
105 87 45 15 3 30 3 2.5 125
-
85 42.5 50 23 0.1
50 90 H7
-
50 50
63
68 H7
-
M20 10 8 H13
-
72
65.5
122 100 45 17 3 35 4 2.5 140
-
100 50 58 30 0.1
63 120 H7
-
63 63
80
90 H7
-
M30 12 8 H13
-
95
86.5
155 130 65 20 4 40 4 3 180
-
125 62.5 75 38 0.2
1) Maximum dimension
