- Model:DBW10BG2-4X/200-6EG24N9K4W65
Quantity in stock: 0

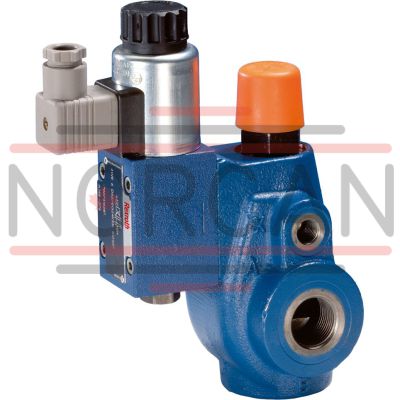

The Bosch Rexroth DBW10BG2-4X/200-6EG24N9K4W65 (R900929383) is a high-performance industrial hydraulic valve designed for reliable pressure relief and solenoid-actuated unloading. This pilot-operated valve is adept at maintaining precise control over operating pressures within hydraulic systems. It features a spool symbol P T and can handle a maximum pressure that ensures robust performance in demanding applications. With its solenoid actuation, the DBW10BG2-4X/200-6EG24N9K4W65 valve offers efficient control, allowing for smooth transitions and accurate pressure management. The unit is equipped with a threaded connection type, facilitating secure integration into various hydraulic circuits. It operates on a 24 VDC supply voltage and has multiple switching positions to cater to different operational requirements. The valve boasts an impressive maximum flow rate, which ensures that it can cope with high-demand scenarios without compromising on performance or safety. The weight of the unit is optimized for its size and functionality, ensuring that it does not add unnecessary bulk to the system it serves. In terms of usability, this model comes with various adjustment types for pressure settings, including options such as a rotary knob, sleeve with hexagon and protective cap, lockable rotary knob with scale, or a rotary knob with scale. These features provide users with flexibility and precision when adjusting the valve to meet specific system requirements. Additionally, the DBW10BG2-4X/200-6EG24N9K4W65 valve incorporates NBR seals compatible with hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, and HFC. This compatibility range ensures that the valve can be used across different systems without concern for fluid-induced degradation. The design includes a built-on directional spool valve for solenoid-operated unloading and an internal pilot control valve mechanism that guarantees stability even under fluctuating pressure conditions. With its robust construction and advanced features, this Bosch Rexroth hydraulic valve stands out as an essential component for efficient pressure management in industrial hydraulic systems.
Size 10, P → T, solenoid-actuated, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to setting value.
Unpacked Weight: 5.300 kg
Valves of type DBW are pilot-operated pressure relief valves. They are used for limitation and solenoid-actuated unloading of the operating pressure.
The valves basically consist of housing (1) and pilot control valve (2) with adjustment type.
The pressure applied to channel P acts on the main spool (3). Via the nozzle bores (4 and 5), the pressure is at the same time applied to poppet (6). If the pressure in channel P exceeds the value set at spring (7), poppet (6) opens against spring (7). Via the nozzle bores (4 and 5), the hydraulic fluid from channel P now flows into the spring chamber (8). From here, it is led into the tank internally (version "–"), via the control line (9 and 10), or externally (version "Y") via the control line (9 and 11).
Due to the state of equilibrium at the main spool (3), hydraulic fluid flows from channel P to channel T, maintaining the set operating pressure.
A pressure gauge connection (12) allows for the control of the operating pressure.
The pressure relief valve can be unloaded or switched to another pressure (second pressure rating) via port X (13).
The main spool (3) is unloaded by controlling a built-on directional valve.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → T |
| Max. pressure | 350 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | with solenoid actuation |
| Size | 10 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Max. flow | 150 |
| Type of connection | Threaded connection |
| Connection diagram | Pipe thread G1 1/2 ISO 228-1 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 5.300 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
||
|
DB |
W |
G |
– |
4X |
/ |
6E |
K4 |
W65 |
* |
|
Type |
||
|
01 |
Pressure relief valve |
DB |
|
02 |
With attached directional valve |
W |
|
Size |
||
|
03 |
Size 10 |
|
|
Threaded connection "G" (G1 1/2) |
10 |
|
|
Size 25 |
||
|
Threaded connection "G" (G3/4) |
15 |
|
|
Threaded connection "G" (G1) |
20 |
|
|
Type of connection |
||
|
04 |
Normally closed |
A |
Normally open |
B |
|
|
05 |
Threaded connection |
G |
|
Adjustment type |
||
|
06 |
Rotary knob |
1 |
|
Sleeve with hexagon and protective cap |
2 |
|
|
Lockable rotary knob with scale |
3 1) |
|
|
Rotary knob with scale |
7 |
|
|
Component series |
||
|
07 |
Component series 40 ... 49 (40 ... 49: unchanged installation and connection dimensions) |
4X |
|
Pressure rating |
||
|
08 |
Set pressure up to 50 bar |
50 |
|
Set pressure up to 100 bar |
100 |
|
|
Set pressure up to 200 bar |
200 |
|
|
Set pressure up to 315 bar |
315 |
|
|
Pilot oil supply and pilot oil return (see also Symbols) |
||
|
09 |
Pilot oil supply and pilot oil return, internal |
– 2) |
|
External pilot oil supply, internal pilot oil return |
X |
|
|
Internal pilot oil supply, external pilot oil return |
Y |
|
|
Pilot oil supply and pilot oil return external |
XY |
|
|
Version |
||
|
10 |
Standard version |
no code |
|
Valve for minimum cracking pressure (not suitable for mutual relief!) |
U |
|
|
11 |
With directional spool valve (data sheet 23178) |
6E |
|
12 |
Direct voltage 24 V |
G24 |
|
Alternating voltage 230 V, 50/60 Hz |
W230 |
|
|
Manual override |
||
|
13 |
With concealed manual override (standard) |
N9 |
|
With manual override |
N |
|
|
Electrical connection |
||
|
14 |
without mating connector with connector DIN EN 175301-803 |
K4 |
|
Seal material |
||
|
15 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
(other seals upon request) Attention! Observe compatibility of seals with hydraulic fluid used! |
||
|
Installation position |
||
|
16 |
Vertical installation position of the screw-in cartridge valve (cartridge) |
W65 |
|
17 |
Further details in the plain text |
* |
| 1)H-key with material no. R900008158 is included in the scope of delivery. | |
| 2)Dash "–" only without specification of "U". |
Notice:
Preferred types and standard units are contained in the EPS (standard price list).
general
|
Size |
10 | 25 | ||
|
Weight |
Threaded connection "G" |
kg |
4.25 | |
|
Installation position |
any | |||
|
Ambient temperature range |
NBR seals |
°C |
-30 … +50 | |
|
FKM seals |
°C |
-15 … +50 | ||
|
Minimum stability of the housing materials |
Housing materials are to be selected so that there is sufficient safety for all imaginable operating conditions (e.g. with regard to pressure resistance, thread stripping strengths and tightening torques). | |||
hydraulic
|
Size |
10 | 25 | |||
|
Maximum operating pressure |
Port P |
bar |
350 | ||
|
Port X |
bar |
350 | |||
|
Port T |
bar |
315 | |||
|
Maximum counter pressure |
Port Y (DC solenoid) |
bar |
210 | ||
|
Port Y (AC solenoid) |
bar |
160 | |||
|
Port T (DC solenoid) |
bar |
210 | |||
|
Port T (AC solenoid) |
bar |
160 | |||
|
Minimum set pressure |
flow-dependent, see characteristic curves | ||||
|
Maximum set pressure |
bar |
50 100 200 315 |
|||
|
Maximum flow |
G3/4 | G1 | |||
|
Threaded connection "G" |
l/min |
150 | 200 | 300 | |
|
Hydraulic fluid |
see table below | ||||
|
Hydraulic fluid temperature range |
NBR seals |
°C |
-20 … +80 | ||
|
FKM seals |
°C |
-15 … +80 | |||
|
Viscosity range |
mm²/s |
10 … 800 | |||
|
Maximum admissible degree of contamination of the hydraulic fluid 1) |
Class 20/18/15 according to ISO 4406 (c) | ||||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
90221 |
|
|
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature.Bio-degradable: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. |
|||||
Notice:
Technical data for directional spool valve see data sheet 23178.
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 ±5 °C)
Inlet pressure dependent on the flow
Threaded connection
Minimum set pressure and circulation pressure dependent on the flow 1)
Standard version
| 1) | The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range. |
Minimum set pressure and circulation pressure dependent on the flow 1)
Version “U”
| 1) | The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range. |
Notices!
The characteristic curves were measured with external, depressurized pilot oil return.
Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port T.
Type DBW…–…
Type DBW…X…
Type DBW…Y…
Type DBW…XY…
Threaded connection
Dimensions in mm
|
1 |
Name plate |
|
2 |
Port X for remote control, optional |
|
3 |
Y port for pilot oil return, external |
|
4 |
Adjustment type "1" |
|
5 |
Adjustment type "2" |
|
6 |
Adjustment type "3" |
|
7 |
Adjustment type "7" |
|
8 |
Lock nut SW22, tightening torque MA = 10±5 Nm |
|
9 |
Hexagon SW10 |
|
10 |
Hexagon SW30, tightening torque MA = 50 Nm |
|
11 |
Space required to remove the key |
|
17 |
Grub screw is omitted with internal pilot oil return |
|
18 |
Directional spool valve NG6 (data sheet 23178) |
|
19 |
Mating connector without circuitry (separate order) |
|
20 |
Mating connector with circuitry (separate order) |
|
21 |
Dimension for valve without manual override |
|
22 |
Dimension for valve with manual override "N" |
|
23 |
Dimension for valve with concealed manual override "N9" |
|
24 |
Housing for version "W“ |
|
25 |
Space required to remove the mating connector |
|
26 |
Valve contact surface; port A is not bored |
|
27 |
Space required to remove the solenoid coil |
|
Version |
D1 |
ØD2 |
|
mm |
||
| DB.10.G | G1/2 | 34 |
| DB.15.G | G3/4 | 42 |
| DB.20.G | G1 | 47 |
Mounting cavity
Version "XY" and type-examination tested safety valves version "Y…E"
Dimensions in mm
| 1) | Installation depth |
|
|
Required surface quality of the valve contact surface |
|
37 |
Bore X, Y and T optionally at the circumference for version "XY" Bore T optionally at the circumference for version "Y" (no separate bore Y required; pilot oil return via bore T) |
|
38 |
Depth of fit |
|
39 |
Bore Ø2.5 mm is only to be bored if required |
|
40 |
Port X does not have to be bored for type-examination tested safety valves version "Y…E" as it does not have any function! |
Version “Y”
Dimensions in mm
| 1) | Installation depth |
|
|
|
Required surface quality of the valve contact surface |
|
37 |
Bore X, Y and T optionally at the circumference for version "XY" Bore T optionally at the circumference for version "Y" (no separate bore Y required; pilot oil return via bore T) |
|
38 |
Depth of fit |
The unloading function (directional valve function with version "W") must not be used for safety functions! With version "B", the lowest adjustable pressure (circulation pressure) is set in case of power failure or cable break. With version "A", the pressure limiting function is set in case of power failure or cable break. Hydraulic counter pressures in port T with internal pilot oil return and/or port Y with external pilot oil return add 1:1 to the response pressure of the valve set at the pilot control.
Example:
Pressure adjustment of the valve due to spring pretensioning (item 7 on Product description) in the pilot control valve/adjustment type
pspring = 200 bar
Hydraulic counter pressure in port T with internal pilot oil returnphydraulic = 50 bar
⇒ Response pressure= pspring + phydraulic = 250 bar
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
