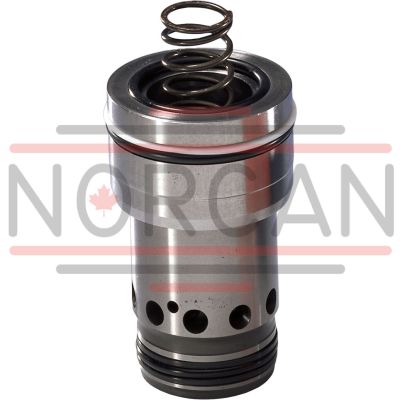

The Bosch Rexroth LC40DR40E7X/ (R900938018) is a high-performance, hydraulically actuated industrial hydraulic valve that offers reliable pressure reduction to a pre-set value. This model features a spool valve with a pilot-operated design and the spool symbol B A, ensuring precise control over hydraulic systems. The valve has a maximum pressure capacity suitable for demanding applications and is part of Productgroup ID. It boasts multiple ports of Size B A and can accommodate a max flow rate as specified by its design. The type of connection for this valve is a cartridge valve, which adheres to the ISO connection diagram standards. It has been designed for a number of switching positions and comes with an exact weight specification. The seals are made from NBR material, making them compatible with various types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. Bosch Rexroth's LC40DR40E7X/ valves are pilot-operated devices that come in either seat or spool configurations. The power section of this cartridge valve fits into a standardized receiving hole according to DIN ISO norms and is sealed with a control cover. Pilot control valves are either integrated into or mounted on this cover for manual or electrically proportional pressure adjustments following DIN standards. This particular model enables different pressure functions through combinations with control covers. Its pressure reducing function ensures that in the rest position the system remains open. The unique design of the spool valve without area difference at port B allows for free flow from port B to port A under certain conditions until the set pressure is reached, at which point the spool closes to reduce pressure at port A based on specific performance characteristics.


Size 40, B → A, hydraulically actuated

Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.

Unpacked Weight: 1.800 kg

General

2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).

The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.

By combination of cartridge valves with the control covers, different pressure functions can be realized. .

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

Pressure reducing function

Rest position open

The cartridge valve for the pressure reducing function is designed as spool valve without area difference (no effective areas at port B).

As pilot control valve, identical cover types as for the pressure relief function are applied (type LFA..DB...).

The effective pressure at port A is directed via the pilot oil supply orifice to the spring side of the spool. Under the performance limit and the pressure set at the pilot control valve, the spool is pressure-compensated and retained in open position by the spring force to enable free flow from port B to port A.

On reaching the set pressure, the spool is closed and the pressure at port A is reduced according to the pressure-flow characteristics.

Spool valve
Pilot-operated
Spool symbolB → A
Max. pressure315
Productgroup ID9,10,11,12,13,14
Number of ports2
Type of actuationwith hydraulic actuation
Size40
Max. flow1000
Type of connectionCartridge valve
Connection diagramISO 7368-10-7-1-16
Number of switching positions2
Weight1.800
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC

Type

01

Cartridge valve

LC

Size

02

NG 16

16

NG 25

25

NG 32

32

NG 40

40

NG 50

50

NG 63

63

Version

03

Pressure relief function

DR

Cracking pressure

04

Cracking pressure 0 bar (without spring)

00

Cracking pressure approx. 2 bar

20

Cracking pressure approx. 3 bar

1)

30

Cracking pressure approx. 4 bar

40

Cracking pressure approx. 5 bar (NG16, 25 and 32 only)

50

Cracking pressure approx. 8 bar

2)

80

Damping

05

Piston without precision grooves

E

Component series

06

Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions)

7X

Seal material

07

NBR seals

no code

FKM seals

V

01

02

03

04

05

06

07

LC

DR

E

7X

/

Additional preferred types and standard units are specified in the EPS (standard price list).

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

hydraulic

Size

16 25 32 40 50 63

Maximum operating pressure

Port A

bar

315

Port B

bar

315

Maximum flow

LC..DR20.../..

l/min

100 200 300 750 1000 1600

LC..DR40.../..

l/min

150 300 450 1000 1300 2000

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524; fast biodegradable hydraulic fluids according to VDMA 24568 ; HETG (rape seed oil); HEPG (polyglycols); HEES (synthetic esters), other hydraulic fluids on request

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 380

Maximum admissible degree of contamination of the hydraulic fluid 1)

Class 20/18/15 according to ISO 4406 (c)
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 16 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 25 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 32 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 40 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 50 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 63 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938018-Size 40, B → A, hydraulically actuated
technical illustration-R900938018-Size 40, B → A, hydraulically actuated

Version "E"

Version “D”

Area ratio
A1 : A2 = 2 : 1
Version "…A.E…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.E…"

Area ratio
A1 : A2 = 2 : 1
Version "…A.D…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.D…"

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

Installation bore and connection dimensions according to ISO 7368

Dimensions in mm

technical illustration-R900938018-Size 40, B → A, hydraulically actuated

1

Depth of fit

2

Control dimension

3

If a different diameter is used for port B than ØD3 or (ØD3*), the distance from the cover support surface to the bore center must be calculated.

4

Port B may be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged.

7

At Ø ≤45 mm → Fitting H8 admissible

NG

ØD1

ØD2

ØD3/(ØD3*)

ØD4

ØD5

ØD6 1)

ØD7

H1/(H1*)

H2

H3

H4

H5

H6

H7

H8

H9

L1

L2

L3

L4

L5

W

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

16 32 H7
-
16 16
25
25 H7
-
M8 8 4 H13
-
35
29.5
56 43 20 11 2 20 2 0.5 65
80
46 23 25 10.5 0.05
25 45 H7
-
25 25
32
34 H7
-
M12 6 6 H13
-
44
40.5
72 58 25 12 2.5 30 2.5 1 85
-
58 29 33 16 0.05
32 60 H7
-
32 32
40
45 H7
-
M16 8 6 H13
-
52
48
85 70 35 13 2.5 30 2.5 1.5 102
-
70 35 41 17 0.1
40 75 H7
-
40 40
50
55 H7
-
M20 10 6 H13
-
64
59
105 87 45 15 3 30 3 2.5 125
-
85 42.5 50 23 0.1
50 90 H7
-
50 50
63
68 H7
-
M20 10 8 H13
-
72
65.5
122 100 45 17 3 35 4 2.5 140
-
100 50 58 30 0.1
63 120 H7
-
63 63
80
90 H7
-
M30 12 8 H13
-
95
86.5
155 130 65 20 4 40 4 3 180
-
125 62.5 75 38 0.2
1) Maximum dimension
