BOSCH REXROTH
R900955784
$3,376.39 USD
- BOSCH REXROTH
- Material:R900955784
- Model:3DREPE6C-2X/25EG24N9K31/A1M
Quantity in stock: 0

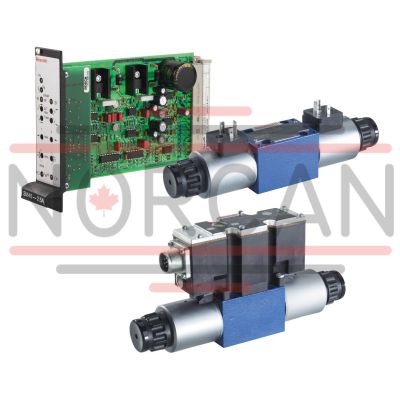

The Bosch Rexroth 3DREPE6C-2X/25EG24N9K31/A1M (R900955784) is a state-of-the-art industrial hydraulic valve designed for precise pressure control in various hydraulic systems. This direct-operated proportional pressure reducing valve is engineered to convert an electrical input signal into a proportional pressure output signal, ensuring reliable performance in demanding applications. It features integrated electronics for actuation, and its spool valve is pilot-operated as well as direct-actuated, allowing for efficient pressure adjustments up to the maximum range. The valve's robust design includes a concealed manual override and auxiliary actuation, which provides additional control flexibility. It is equipped with a spool symbol P A, P B A T, B T and can handle a maximum pressure of bar. The electrical connection is facilitated through a Connector pole PE as per DIN EN standards. Designed for subplate mounting with porting patterns conforming to ISO standards, the 3DREPE6C-2X/25EG24N9K31/A1M valve offers ease of integration into existing systems. It has a maximum flow rate of l/min and supports an operating voltage of VDC. The unit comes with NBR seals and can be used with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. With analog connectivity for command value input at V, the valve ensures precise control over hydraulic functions. The number of switching positions allows operators to manage flow direction effectively while maintaining system stability. Additionally, the weight of kg ensures it is robust yet manageable during installation or maintenance procedures. Overall, this Bosch Rexroth valve represents a high-performance solution designed to meet the rigorous demands of industrial hydraulic systems where accurate pressure control is critical for operational efficiency and safety.
Size 6, P → A, P → B / A → T, B → T, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 2.24 kg
The 3-way pressure reducing valve type 3 DREP 6.. is direct operated by proportional solenoids. It is intended for the conversion of an electric input signal into a proportional pressure output signal. The proportional solenoids are controllable, wet-pin DC solenoids with a central thread and a detachable coil. The solenoids are controlled optionally either by external control electronics (type 3DREP) or by the integrated control electronics (type 3DREPE).
Set-up:
The valve basically consists of:
Housing (1) with connection surface Control spool (2) with pressure measuring spool (3, 4) Solenoids (5, 6) with central thread optional integrated control electronics (7)Function:
The pressure in A or B is set by means of the proportional solenoids. The amount of the pressure depends on the current. With de-energized solenoids (5, 6), the control spool (2) is held in the central position by means of the compression springs (8). Ports A and B are connected with T so that the hydraulic fluid can flow to the tank without obstructions. By energizing a proportional solenoid, e.g. solenoid "a" (5), the pressure measuring spool (3) and with it the control spool (2) are moved to the right. This opens the connection from P to B and A to T via orifice-type cross-sections with progressive flow characteristics. With the surface of the pressure measuring spool (4) the pressure that builds up in channel B acts on the control spool and against the solenoid force. The pressure measuring spool (4) is supported by solenoid "b". If the pressure exceeds the value set at solenoid "a", the control spool (2) is pushed back against the solenoid force and connects B with T until the set pressure is reached again. The
pressure is proportional to the solenoid current. When the solenoid is switched off, the control spool (2) is returned into the central position by the compression springs (8). An optional hand override (9, 10) allows control spool (2) to be moved without solenoid energization.
Notice:
Accidental activation of the hand override may lead to uncontrolled machine movements!
Valve with two spool positions (type 3DREP..A.. or 3DREP..B..):
The function of this valve version basically corresponds to the valve with three spool positions. The 2 spool position valve is, however, only equipped with solenoid “a” (5) or solenoid “b” (6). Instead of the 2nd proportional solenoid, a plug screw (11) is installed.
Notice:
The tank line must not be allowed to run empty. With corresponding installation conditions, a preload valve (preload pressure approx. 2 bar) must be installed.
| Spool valve |
| Pilot-operated |
| Direct actuated |
| Pressure adjustment range up to 25 bar |
| With concealed manual override: With concealed auxiliary actuation |
| Operating pressure, max. 100 bar |
| Component series 2X |
| Size 6 |
| Volume flow, max. 15 l/min |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → A, P → B / A → T, B → T |
| Max. pressure | 100 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 15 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 3 |
| Weight | 2.24 |
| Seals | NBR |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
|||
|
3DREP |
6 |
‒ |
2X |
/ |
E |
G24 |
/ |
* |
|
01 |
Proportional pressure relief valve in 3-way version |
3DREP |
|
|
02 |
For external analog electronics |
no code |
|
|
With integrated control electronics |
E |
||
|
03 |
Size 6 |
6 |
|
|
Version |
|||
|
04 |
Type 3DREP6 A 2X/..
|
A |
|
Type 3DREP6 B 2X/..
|
B |
||
Type 3DREP6 C 2X/..
|
C |
||
|
05 |
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6 |
2X |
|
|
Pressure rating |
|||
|
06 |
16 bar |
16 |
|
|
25 bar |
25 |
||
|
45 bar |
45 |
||
|
07 |
Proportional solenoid with detachable coil |
E |
|
|
Power supply |
|||
|
08 |
Direct voltage 24 V |
G24 |
|
|
09 |
Without manual override |
no code |
|
|
With concealed manual override |
N9 3) |
||
|
10 |
Without special type of protection |
no code |
|
|
Sea water-resistant |
J 2) |
||
|
Electrical connection |
|||
|
11 |
For type DREP: |
Without mating connector; connector DIN EN 175301-803 |
K4 1) |
|
For type DREPE: |
Without mating connector; connector DIN EN 175201-804 |
K311) |
|
|
Electrical interface |
|||
|
12 |
For type DREP: |
no code |
|
|
For type DREPE: |
Command value/actual value ±10 V |
A1 |
|
|
Command value/actual value 4 … 20 mA |
F1 |
||
|
Seal material |
|||
|
13 |
NBR seals |
M |
|
|
FKM seals |
V |
||
|
14 |
Further details in the plain text |
* |
|
|
1) |
For version "J" = seawater-resistant only indicate "K31" |
||
|
2) |
Only for version 3DREP6 |
||
|
3) |
With version “J”, indicate “N” only instead of “N9” |
||
|
Special electrical types of protection upon request |
|||
For applications outside these parameters, please consult us!
general
|
Type |
3DREP | 3DREPE | |
|
Size |
6 | ||
|
Component series |
2X | ||
|
Installation position |
any, preferably horizontal | ||
|
Earth |
kg |
2 | 2.2 |
|
Storage temperature range |
°C |
-20 … +80 | |
|
Ambient temperature range |
°C |
-20 … +70 | -20 … +50 |
hydraulic
|
Type |
3DREP | 3DREPE | |||
|
Maximum operating pressure |
bar |
100 | |||
|
Operating pressure range |
Port P |
Pressure rating 16 bar |
bar |
20 … 100 | |
|
Pressure rating 25 bar |
bar |
30 … 100 | |||
|
Pressure rating 45 bar |
bar |
50 … 100 | |||
|
Port T |
bar |
0 ... 30 | |||
|
Maximum flow 1) |
l/min |
15 | 15 | ||
|
Hydraulic fluid |
see table | see table | |||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | -20 … +80 | ||
|
Viscosity range |
mm²/s |
20 … 380 | 20 … 380 | ||
|
preferably |
mm²/s |
30 … 46 | 30 … 46 | ||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 17/15/12 according to ISO 4406 (c) | Class 17/15/12 according to ISO 4406 (c) | |||
|
Hysteresis |
% |
≤ 5 | ≤ 5 | ||
|
Repetition accuracy |
% |
≤ 1 | ≤ 1 | ||
|
Response sensitivity |
% |
≤ 0.5 | ≤ 0.5 | ||
|
Range of inversion |
% |
≤ 1 | ≤ 1 | ||
| 1) | Δp = 50 bar |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP |
NBR / FKM |
DIN 51524 |
|
Flame-resistant - containing water |
HFC
|
NBR |
ISO 12922 |
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.
Flame-resistant - containing water: |
|||
electrical
|
Type |
3DREP | 3DREPE | ||
|
Voltage type |
Direct voltage | |||
|
Type of signal |
analog | |||
|
Maximum solenoid current |
A |
1.5 | 2.5 | |
|
Solenoid coil resistance |
Cold value at 20 °C |
Ω |
5.2 | 2.15 |
|
Maximum hot value |
Ω |
7.6 | 3.3 | |
|
Duty cycle |
% |
100 | ||
|
Coil temperature 1) |
°C |
150 | ||
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | |||
| 1) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure rating 16, 25, and 45 bar
Pressure rating 16, 25, and 45 bar
Flow-dependent pressure
Type 3DREP..6 A 2X/..E (detailed)
Type 3DREP..6 B 2X/..E (detailed)
Type 3DREP..6 C 2X/..E (detailed)
Example of valve with integrated control electronics; type 3DREPE..6 C 2X/..E (simplified)
|
Pin assignment |
Contact |
Assignment interface "A1" |
Assignment interface "F1" |
|
Power supply |
A |
24 VDC (u(t) = 19,4 ... 35 V); Imax = 2 A |
|
|
B |
0 V |
||
|
Reference potential actual value |
C |
cannot be used 1) |
|
|
Differential amplifier input (command value) |
D |
±10 V command value; Re > 50 kΩ |
4 ...20 mA command value; Re > 100 Ω |
|
E |
Reference potential command value |
||
|
Measuring output (actual value) |
F |
cannot be used 1) |
|
|
PE |
connected to cooling element and valve housing |
||
|
1) |
Contacts C and F must not be connected! |
||
Command value:
Reference potential at E and positive command value (or 12...20 mA) at D result in pressure in A.
Reference potential at E and negative command value (or 12...4 mA) at D result in pressure in B.
With valves with solenoid on side “b” (version A), reference potential at E and a positive command value at D (4...20 mA) result in pressure in A.
With valves with solenoid on side “a” (version B), reference potential at E and a positive command value at D (4...20 mA) result in pressure in B.
Connection cable:
Recommendation:
up to 25 m line length: Type LiYCY 5 x 0.75 mm2 up to 50 m line length: Type LiYCY 5 x 1.0 mm2 External diameter 6.5 to 11 mm Connect shield to PE on the supply side.Block diagram / pin assignment
|
1 |
Valve housing |
|
2 |
Name plate |
|
3 |
Proportional solenoid "a" |
|
4 |
Proportional solenoid "b" |
|
5 |
Mating connector "A", color gray, separate order |
|
6 |
Mating connector "B", color black, separate order |
|
7 |
Identical seal rings for ports A, B, P, and T |
|
8 |
Concealed manual override “N9” |
|
9 |
Plug screw for valve with one solenoid |
|
10 |
Space required to remove the mating connector |
|
11 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
1 |
Valve housing |
|
2 |
Name plate |
|
3 |
Proportional solenoid "a" |
|
4 |
Proportional solenoid "b" |
|
5 |
Mating connector according to DIN EN 175201-804, separate order |
|
7 |
Identical seal rings for ports A, B, P, and T |
|
8 |
Concealed manual override “N” |
|
9 |
Plug screw for valve with one solenoid |
|
10 |
Space required to remove the mating connector |
|
11 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
12 |
Dimension for version "N" |
|
1 |
Valve housing |
|
2 |
Name plate |
|
3 |
Proportional solenoid "a" |
|
4 |
Proportional solenoid "b" |
|
5 |
Mating connector according to DIN EN 175201-804, separate order |
|
7 |
Identical seal rings for ports A, B, P, and T |
|
8.1 |
Concealed manual override “N9” |
|
8.2 |
Manual override “N“ for seawater-resistant version "J" |
|
9 |
Plug screw for valve with one solenoid |
|
10 |
Space required to remove the mating connector |
|
11 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
12 |
Integrated electronics (OBE) |
|
13 |
Dimension for seawater-resistant version "J" |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9Tightening torque MA = 8.9 Nm ± 10%
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
Spare parts & repair
