R901017022


$31.99 USD
  • BOSCH REXROTH
  • Material:R901017022

Quantity in stock: 53

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth PLUG-IN CONNECTOR 3P Z5L M 12-240V SP& (R901017022) is a high-quality electrical accessory designed for industrial use, specifically tailored for valves with connector K in accordance with EN and ISO standards. This durable mating connector features a 3-pole + PE configuration according to EN, ensuring compatibility and a secure connection for valves equipped with one or two solenoids. The inclusion of an LED indicator provides immediate visual feedback on the connection status, enhancing operational safety and convenience. Crafted with precision, this plug-in connector supports a supply voltage range of up to 240V AC/DC, making it versatile for various electrical requirements within industrial environments. Its robust construction is reflected in the black coloration of the unit, which often denotes resistance to industrial conditions and potential soiling. The product's weight has been optimized to contribute to its reliability without compromising on its sturdiness. As an OEM accessory, the Bosch Rexroth PLUG-IN CONNECTOR 3P Z5L M 12-240V SP& ensures seamless integration with compatible components, maintaining the integrity and performance expected from Bosch Rexroth's engineering standards. This connector is an essential component for maintaining efficient and reliable operations in systems that require individual connections for hydraulic or pneumatic solenoid valves. Its design facilitates easy installation and maintenance, making it a practical choice for professionals seeking dependable electrical connections in their machinery and equipment setups.


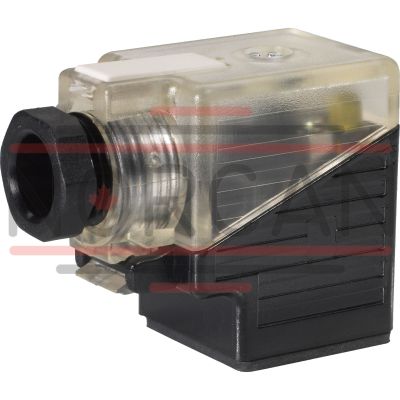

Mating connector, 3-pole (2 + PE) EN 175301-803, with LED, black

For valves with connector K4. OEM accessories. Industrial use.

Unpacked Weight: 0.038 kg
Electrical connection descriptionConnector 3-pole (2 + PE) according to EN 175301-803
Productgroup ID9,10,11,12,13,14
Electrical connectorConnector 3-pole (2 + PE)
Supply voltage12…240 V AC/DC
Weight0.038

For applications outside these parameters, please consult us!

Mating connector

Short designation

Z5L

Design

A

Ambient temperature

with indicator light/rectifier

°C

-20 … +60

Protection class according to DIN EN 60529

IP65 with mating connector mounted and fitted

Indicator light

LED yellow

Number of poles

2 + PE

Terminal area for lines with external diameter

mm

5 … 10

Wire cross-section, max. 1)

mm²

1.5

Anschlussart

Screw connection

Standard

EN 175301-803

Derating, max.

-
1) 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5)

With indicator light

technical illustration-R901017022-Mating connector, 3-pole (2 + PE) EN 175301-803, with LED, black

Dimensions in mm

technical illustration-R901017022-Mating connector, 3-pole (2 + PE) EN 175301-803, with LED, black technical illustration-R901017022-Mating connector, 3-pole (2 + PE) EN 175301-803, with LED, black

1

Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm

2

Fitting M16  x 1.5 / NPT 1/2“ (see table)
