BOSCH REXROTH
R901018588
$448.67 USD
- BOSCH REXROTH
- Material:R901018588
- Model:KBPSL8BA/HCG24K4V
Quantity in stock: 0
The Bosch Rexroth KBPSL8BA/HCG24K4V (R901018588) is a high-quality screwin cartridge valve designed for precise pressure control in hydraulic systems. This direct operated proportional pressure relief valve, from the KBPS product family, features a decreasing characteristic curve and is intended for use in both mobile and industrial applications. With its maximum operating pressure of 350 bar (5076 psi) and a maximum flow rate of 30 l/min (7.9 gpm), the valve is capable of handling demanding tasks efficiently. The KBPSL8BA/HCG24K4V valve operates through electroproportional actuation, utilizing an integrated coil and poppet-type spool within its SUN TA cavity design. The electrical connection conforms to DIN EN standards, ensuring reliable performance and compatibility with various control systems. The FKM sealing material offers excellent resistance to high temperatures and chemical exposure, contributing to the durability of the valve. This model is particularly noted for its ability to maintain system pressure with precision due to its fine-balancing capability, which can be externally adjusted on the control electronics. Users can set the maximum system pressure via an adjustment screw, providing flexibility in application-specific requirements. In situations where power is lost, the valve automatically sets itself to the maximum preset pressure for safety. The Bosch Rexroth KBPSL8BA/HCG24K4V valve is also characterized by its direct acting feature which allows for immediate response to changes in command value or system conditions. It supports a supply voltage of 24 V DC and has a nominal flow rate that facilitates consistent hydraulic fluid management using HL, HLP, HEES, or HEPG types. Overall, this proportional pressure relief valve combines robust construction with advanced control capabilities to ensure efficient operation within hydraulic circuits where precise pressure limitation is critical.
Unpacked Weight: 0.4514 kg

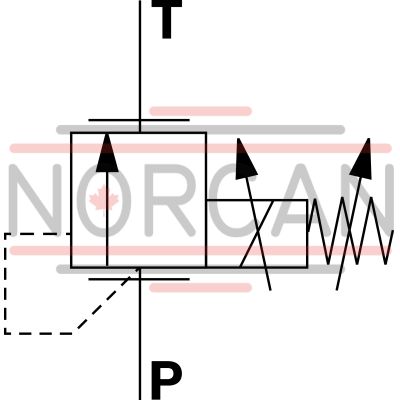

Valves of type KBPS.8B are direct operated proportional pressure relief valves (pilot control valves) in seat design and are used to limit a system pressure. At command value 0 or in the event of a power failure, the maximum pressure is set. Operation by means of a proportional solenoid with central thread and detachable coil. The solenoid's interior is connected to the main port and filled with hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited.
| Screw-in cartridge valve |
| Maximum operating pressure 420 bar (6000 psi) |
| Maximum flow 2 l/min (0,5 gpm) |
| Cavity SUN T-8A |
| Max. pressure | 420 |
| Coil | GP37 |
| Product family classification | Proportional pressure relief valve, direct operated, decreasing characteristic curve |
| Productgroup ID | 9,10,11,12,13,14 |
| Product family type | KBPS |
| Ports number | 2 |
| Type of actuation | Electro-proportional |
| Sealing material | FKM |
| Cavity | Sun T-8A |
| Product type | KBPS |
| Electrical connector | DIN EN 175301-803 |
| Max. flow | 2 |
| Type of connection | Screw-in cartridge valve |
| Normal position | Normally closed |
| Nominal flow | 2 |
| Direct - Pilot | Direct acting |
| Product family | Relief |
| Supply voltage | 24 V DC |
| Coil integrated | Integrated coil |
| Spool Poppet | Poppet type |
| Weight | 0.4514 |
| Hydraulic fluid | HL,HLP,HEES,HEPG |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
|
|
KBPS |
8 |
B |
A |
/ |
H |
C |
V |
* |
|
01 |
Proportional pressure relief valve, direct operated (pilot control valve) |
KBPS |
|
Pressure rating |
||
|
02 |
Up to 30 bar |
B |
|
Up to 50 bar |
C |
|
|
Up to 100 bar |
F |
|
|
Up to 150 bar |
H |
|
|
Up to 210 bar |
L |
|
|
Up to 250 bar |
N |
|
|
Up to 315 bar |
P |
|
|
Up to 350 bar |
R |
|
|
Up to 420 bar |
T |
|
|
03 |
Component size |
8 |
|
04 |
Maximum pressure at command value = 0 |
B |
|
05 |
Component series |
A |
|
06 |
High Performance and mounting cavity R/T-8A (see mounting cavity) |
H |
|
07 |
Proportional solenoid, wet-pin |
C |
|
Power supply |
||
|
08 |
Control electronics 12 V DC |
G12 |
|
Control electronics 24 V DC |
G24 |
|
|
Electrical connection |
||
|
09 |
Without mating connector, with connector according to DIN EN 175301-803, separate order |
K4 |
|
Without mating connector, with connector DT 04 - 2PA (Deutsch plug) |
K40 |
|
|
Without mating connector, with connector AMP Junior-Timer |
C4 |
|
|
Seal material |
||
|
10 |
FKM seals |
V |
|
11 |
Standard version |
no code |
|
800 mA coil |
-8 |
|
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
KBPS.8B | |
|
Size |
8 | |
|
Component series |
A | |
|
Weight |
kg |
0.45 |
|
Installation position |
any - if it is ensured that no air can collect upstream of the valve. Otherwise, we recommend suspended installation of the valve. | |
|
Ambient temperature range |
°C |
-20 … +120 |
electrical
|
Type |
KBPS.8B | |
|
Duty cycle |
% |
100 |
hydraulic
|
Type |
KBPS.8B | ||
|
Maximum flow |
l/min |
2 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | |
|
Viscosity range |
mm²/s |
15 … 380 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
|
Hysteresis 2) |
% |
< 4 | |
|
Range of inversion 2) |
% |
< 0.5 | |
|
Response sensitivity 2) |
% |
< 0.5 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to 0.8 l/min; pressure increasing |
at command value 100 % 2) |
% |
< 2 |
|
Step response |
0% → 100% 3) |
ms |
70 |
|
100% → 0% 3) |
ms |
70 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Of the maximum set pressure |
| 3) | depending on the system |
