BOSCH REXROTH
R901064385
$431.41 USD
- BOSCH REXROTH
- Material:R901064385
Quantity in stock: 2
The Bosch Rexroth KBPSL8BA/HCG12K40V (R901064385) is a high-performance screw-in cartridge valve designed for precise control of system pressure in hydraulic applications. This direct operated proportional pressure relief valve features a decreasing characteristic curve and is part of the KBPS product family, which falls under the Proportional Valve product group. It is engineered with an integrated coil and FKM sealing material, ensuring durability and reliability in various operating conditions. The valve's maximum operating pressure reaches up to 420 bar (6090 psi), with a nominal flow rate capacity, making it suitable for demanding applications that require meticulous pressure regulation. With its SUN TA cavity design, the valve can handle a maximum flow of up to 8 liters per minute (2.11 gallons per minute), providing efficient fluid control for both mobile and industrial systems. Equipped with an electroproportional type of actuation, the KBPSL8BA/HCG12K40V utilizes an electrical connector of the Deutsch DTP series for secure and stable electrical connections. The poppet-type spool within this normally closed valve ensures leak-free operation when de-energized. The direct acting nature of this valve means it provides immediate response to changes in command values, enhancing system precision. The unit operates on a 24 V DC supply voltage and boasts features like fine balancing of command value-pressure characteristic curve externally on control electronics and an adjustment screw for setting maximum pressure. In case of power failure, the system reverts to the pre-set maximum pressure, safeguarding against uncontrolled pressure spikes. This Bosch Rexroth proportional valve is compatible with various hydraulic fluids including HL, HLP, HEES, and HEPG types, expanding its applicability across diverse hydraulic systems without compromising performance. Its compact size and component series A designation make it a versatile choice for integration into existing setups where space may be limited but robust control is required.
Unpacked Weight: 0.44 kg

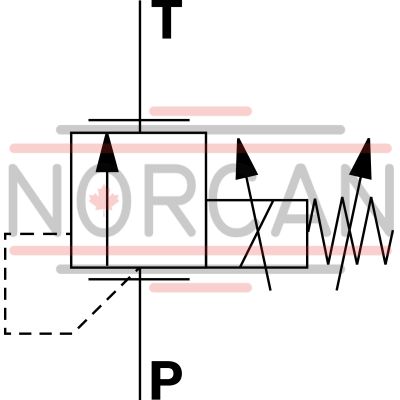

Valves of type KBPS.8B are direct operated proportional pressure relief valves (pilot control valves) in seat design and are used to limit a system pressure. At command value 0 or in the event of a power failure, the maximum pressure is set. Operation by means of a proportional solenoid with central thread and detachable coil. The solenoid's interior is connected to the main port and filled with hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited.
| Screw-in cartridge valve |
| Maximum operating pressure 420 bar (6000 psi) |
| Maximum flow 2 l/min (0,5 gpm) |
| Cavity SUN T-8A |
| Max. pressure | 420 |
| Coil | GP37 |
| Product family classification | Proportional pressure relief valve, direct operated, decreasing characteristic curve |
| Productgroup ID | 9,10,11,12,13,14 |
| Product family type | KBPS |
| Ports number | 2 |
| Type of actuation | Electro-proportional |
| Sealing material | FKM |
| Cavity | Sun T-8A |
| Product type | KBPS |
| Electrical connector | Deutsch DT04-2P |
| Max. flow | 2 |
| Type of connection | Screw-in cartridge valve |
| Normal position | Normally closed |
| Nominal flow | 2 |
| Direct - Pilot | Direct acting |
| Product family | Relief |
| Supply voltage | 12 V DC |
| Coil integrated | Integrated coil |
| Spool Poppet | Poppet type |
| Weight | 0.44 |
| Hydraulic fluid | HL,HLP,HEES,HEPG |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
|
|
KBPS |
8 |
B |
A |
/ |
H |
C |
V |
* |
|
01 |
Proportional pressure relief valve, direct operated (pilot control valve) |
KBPS |
|
Pressure rating |
||
|
02 |
Up to 30 bar |
B |
|
Up to 50 bar |
C |
|
|
Up to 100 bar |
F |
|
|
Up to 150 bar |
H |
|
|
Up to 210 bar |
L |
|
|
Up to 250 bar |
N |
|
|
Up to 315 bar |
P |
|
|
Up to 350 bar |
R |
|
|
Up to 420 bar |
T |
|
|
03 |
Component size |
8 |
|
04 |
Maximum pressure at command value = 0 |
B |
|
05 |
Component series |
A |
|
06 |
High Performance and mounting cavity R/T-8A (see mounting cavity) |
H |
|
07 |
Proportional solenoid, wet-pin |
C |
|
Power supply |
||
|
08 |
Control electronics 12 V DC |
G12 |
|
Control electronics 24 V DC |
G24 |
|
|
Electrical connection |
||
|
09 |
Without mating connector, with connector according to DIN EN 175301-803, separate order |
K4 |
|
Without mating connector, with connector DT 04 - 2PA (Deutsch plug) |
K40 |
|
|
Without mating connector, with connector AMP Junior-Timer |
C4 |
|
|
Seal material |
||
|
10 |
FKM seals |
V |
|
11 |
Standard version |
no code |
|
800 mA coil |
-8 |
|
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
KBPS.8B | |
|
Size |
8 | |
|
Component series |
A | |
|
Weight |
kg |
0.45 |
|
Installation position |
any - if it is ensured that no air can collect upstream of the valve. Otherwise, we recommend suspended installation of the valve. | |
|
Ambient temperature range |
°C |
-20 … +120 |
electrical
|
Type |
KBPS.8B | |
|
Duty cycle |
% |
100 |
hydraulic
|
Type |
KBPS.8B | ||
|
Maximum flow |
l/min |
2 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | |
|
Viscosity range |
mm²/s |
15 … 380 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
|
Hysteresis 2) |
% |
< 4 | |
|
Range of inversion 2) |
% |
< 0.5 | |
|
Response sensitivity 2) |
% |
< 0.5 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to 0.8 l/min; pressure increasing |
at command value 100 % 2) |
% |
< 2 |
|
Step response |
0% → 100% 3) |
ms |
70 |
|
100% → 0% 3) |
ms |
70 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Of the maximum set pressure |
| 3) | depending on the system |
