BOSCH REXROTH
R901069996

BOSCH REXROTH
Material:R901069996
Model:KKDER1PA/HN0V

Due to extremely high demand, please call 877-366-7226 for availability

Unpacked Weight: 0.28 kg

General information

The 2/2 directional spool valves are direct operated, pressure-compensated screw-in cartridge valves. They control the start, stop and direction of flow and basically consist of a housing (1) with moveable socket (2), a control spool (5) and a return spring (4).

Function

In the de-energized condition, the control spool (5) is held in the initial position by the return spring (4). The control spool (5) is actuated by wet-pin DC solenoids (3). The different symbols are realized by corresponding spools (N and P). The main ports ➀ and ➁ can be loaded continuously with an operating pressure of 350 bar and the flow can be directed into both directions (see Symbols).

The manual override (6) allows for the switching of the valve without solenoid energization. It is available in screwable version "N10" (7) (see Type keys).

Version "K4" (with mating connector)

Type KKDER1NA/HN9V

technical illustration-R901069996-Mounting cavity R/T-13A Direct-controlled directional slide valve with solenoid actuation Flow possible in both directions Very low flow resistances Positive overlap prevents switching shocks Wet-pin DC solenoids Solenoid coil can be rotated With concealed manual override

Version "C4"

Screw-in cartridge valve
Maximum operating pressure 350 bar (5000 psi)
Maximum flow 55 l/min (15 gpm)
Cavity Sun T-13A

Max. pressure	350
Coil	GZ37
Product family classification	2/2 directional spool valve, direct operated with solenoid actuation
Productgroup ID	9,10,11,12,13,14
Product family type	KKDE
Ports number	2
Type of actuation	Solenoid-actuated on/off
Sealing material	FKM
Cavity	Sun T-13A
Product type	KKDE
Max. flow	55
Type of connection	Screw-in cartridge valve
Normal position	Normally open
Nominal flow	55
Direct - Pilot	Direct acting
Positions	2
Product family	2 ways
Coil integrated	To be ordered separately
Spool Poppet	Spool type
Weight	0.28
Hydraulic fluid	HL,HLP,HETS,HEPG,HEES

(valve without coil)1)

01	02	03	04	05		06	07	08	09
KKDE	R	1		A	/	H		V	*

01	Directional spool valve, direct operated, electrically operated	KKDE
02	Maximum operating pressure 350 bar	R
03	Component size	1
04	2 main ports
Symbols		N
		P
05	Component series	A
06	High Performance and mounting cavity R/T-13A (see Mounting cavity)	H
07	Without manual override	N0
	With concealed manual override 2)	N9
Seal material

08	FKM seals (other seals upon request) Observe compatibility of seals with hydraulic fluid used.	V
09	Further details in the plain text	*

	1) Complete valves with mounted coil on request.

	2) Screwable manual override “N10” possible (material no. R901051231, separate order)

general

Size			1
Installation position			any
Ambient temperature range		°C	-40 … +110
Weight	Valve	kg	0.3
Weight	Coil	kg	0.25

hydraulic

Size		1
Maximum operating pressure 1)	bar	350
Maximum flow	l/min	55
Hydraulic fluid		see table
Hydraulic fluid temperature range	°C	-40 … +80
Viscosity range	mm²/s	4 … 500
Maximum admissible degree of contamination of the hydraulic fluid 2)		Class 20/18/15 according to ISO 4406 (c)
Fatigue strength according to ISO 10771		10 million (at 350 bar)

1)	At all ports
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Standards
Mineral oil		HL, HLP	DIN 51524
Bio-degradable	Insoluble in water	HEES (synthetic esters)	VDMA 24568
		HETG (rape seed oil)
	Soluble in water	HEPG (polyglycols)	VDMA 24568
Other hydraulic fluids on request

electrical

Voltage type			Direct voltage
Power supply 1)		V	12 24
Voltage tolerance against ambient temperature			see voltage tolerance characteristic curve
Power consumption		W	22
Duty cycle		%	100
Maximum coil temperature 2)		°C	150
Switching time according to ISO 6403	ON	ms	≤ 80
Switching time according to ISO 6403	OFF	ms	≤ 50
Maximum switching frequency		1/h	15000
Protection class according to DIN EN 60529 (VDE 0470-1), DIN 40050-9	Version "K4"		IP65 (with mating connector mounted and locked)
	Version "C4"		IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127)
	Version "K40"		IP69K with mating connector mounted and locked

1)	Other voltages upon request
2)	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

For applications outside these parameters, please consult us!

With the electrical connection "K4", the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

Voltage tolerance against ambient temperature; duty cycle

Voltage range and duty cycle dependent on the ambient temperature

(measured with HLP46, ϑoil = 40 ±5 °C) and 24 V coil

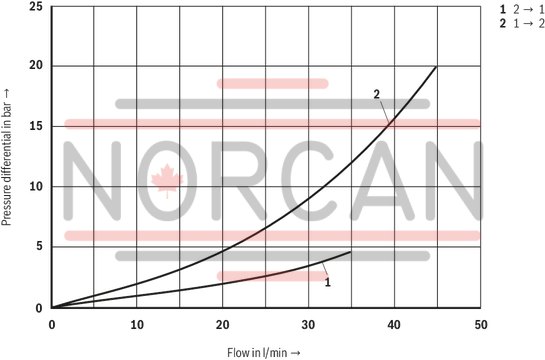

Δp-qV characteristic curves – Symbol N

Δp-qV characteristic curves – Symbol P

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)

Symbol N

Symbol P

Attention!

The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.

Symbol “P”

Symbol “N”

Dimensions in mm

1	Mating connectors (separate order)
2	Space required to remove the mating connector
3	Wrench size 24, tightening torque MA = 45 to 50 Nm
4	Dimension for mating connector “K4”, without circuitry
5	Dimension () for mating connector “K4”, with circuitry
6	Version "K40"
7	Version "C4"
8	Nut, tightening torque MA = 5+1 Nm
9	Coil (separate order, see type key)
10	Concealed manual override "N9", optional
11	Screwable manual override "N10" (separate order, see Type keys)
➀	Main port 1
➁	Main port 2
LS	Location shoulder
