BOSCH REXROTH
R901070094
$236.10 USD
- BOSCH REXROTH
- Material:R901070094
- Model:KKDER1CA/HN0V
Quantity in stock: 0
The Bosch Rexroth KKDER1CA/HN0V (R901070094) is a high-performance directional spool valve, expertly designed for direct operation with solenoid actuation. This screw-in cartridge valve is engineered to control the start, stop, and direction of a hydraulic flow with precision. It boasts a maximum operating pressure of 315 bar and can accommodate a maximum flow of up to 80 l/min, making it suitable for a wide range of demanding applications. The valve incorporates a housing with a movable socket, control spool, and return spring. In its default state, the control spool is maintained in position by the return spring but can be actuated by the wet-pin DC solenoids that come integrated into the design. The different symbols for controlling flow are achieved using various spools designated as C or U types. Main ports A, B, and P are capable of handling continuous operating pressures up to 315 bar while allowing bi-directional flow. Additionally, this model features concealed manual override functionality that permits manual operation of the valve in situations where solenoid power is unavailable. The solenoid coil on this unit can be rotated for flexible installation orientations. Its compact size and component series A designation ensure it fits within standardized cavity Sun TA. The Bosch Rexroth KKDER1CA/HN0V valve is characterized by its poppet spool type and has been classified under product family type KKDE with ports number 3 and sealing material FKM suitable for various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HEES, HEPR, HEPG, HFDU, HFDR, and HFAS. This product's robust design ensures reliability in controlling hydraulic systems while maintaining efficiency in both industrial settings. Its direct-acting feature provides responsive performance for systems requiring precise control over their hydraulic functions.
3/2 directional spool valve, direct operated with solenoid actuation
Unpacked Weight: 0.315 kg
Version "K4" (with mating connector)
Type KKDER1CA/HN9V
Version "C4"
General information
The 3/2 directional spool valves are direct operated, pressure-compensated screw-in cartridge valves. They control the start, stop and direction of flow and basically consist of a housing (1) with moveable socket (2), a control spool (5) and a return spring (4).
Function
In the de-energized condition, the control spool (5) is held in the initial position by the return spring (4). The control spool (5) is actuated by wet-pin DC solenoids (3). The symbols are realized by different spools (C or U). The main ports ➀, ➁ and ➂ can be loaded continuously with an operating pressure of 350 bar and the flow can be directed into both directions (see Symbols).
The manual override (6) allows for the switching of the valve without solenoid energization. It is also available in screwable version"N10" (7) (see Type keys).
| Screw-in cartridge valve |
| Maximum operating pressure 350 bar (5000 psi) |
| Maximum flow 60 l/min (16 gpm) |
| Cavity Sun T-11A |
| Max. pressure | 350 |
| Coil | GZ37 |
| Product family classification | 3/2 directional spool valve, direct operated with solenoid actuation |
| Productgroup ID | 9,10,11,12,13,14 |
| Product family type | KKDE |
| Ports number | 3 |
| Type of actuation | Solenoid-actuated on/off |
| Sealing material | FKM |
| Cavity | Sun T-11A |
| Product type | KKDE |
| Max. flow | 60 |
| Type of connection | Screw-in cartridge valve |
| Nominal flow | 60 |
| Direct - Pilot | Direct acting |
| Positions | 2 |
| Product family | 3 ways |
| Coil integrated | To be ordered separately |
| Spool Poppet | Spool type |
| Weight | 0.315 |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HEES,HEPR,HEPG,HFDU,HFDR,HFAS |
(valve without coil)1)
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
|
|
KKDE |
R |
1 |
A |
/ |
H |
V |
* |
|
01 |
Directional spool valve, direct operated, electrically operated |
KKDE |
|
|
02 |
Maximum operating pressure 350 bar |
R |
|
|
03 |
Size |
1 |
|
|
04 |
3 main ports |
||
|
Symbols 2) |
|
|
C |
|
|
U |
|
|
05 |
Component series |
A |
|
|
06 |
High Performance and mounting cavity R/T-11A (see mounting cavity) |
H |
|
|
07 |
Without manual override |
N0 |
|
|
With concealed manual override 3) |
N9 |
||
|
Seal material |
|||
|
08 |
FKM seals (other seals upon request) Observe compatibility of seals with hydraulic fluid used. |
V |
|
|
09 |
Further details in the plain text |
* |
|
| 1) Complete valves with mounted coil on request. | |
| 3) Screwable manual override “N10” possible (material no. R901051231, separate order) |
general
|
Size |
1 | ||
|
Installation position |
any | ||
|
Ambient temperature range |
°C |
-40 … +110 | |
|
Weight |
Valve |
kg |
0.3 |
|
Coil |
kg |
0.25 | |
hydraulic
|
Size |
1 | |
|
Maximum operating pressure 1) |
bar |
350 |
|
Maximum flow |
l/min |
60 |
|
Hydraulic fluid |
see table | |
|
Hydraulic fluid temperature range |
°C |
-40 … +80 |
|
Viscosity range |
mm²/s |
4 … 500 |
|
Maximum admissible degree of contamination of the hydraulic fluid 2) |
Class 20/18/15 according to ISO 4406 (c) | |
|
Fatigue strength according to ISO 10771 |
10 million (at 350 bar) | |
| 1) | At all ports |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Mineral oils and related hydrocarbons |
HL, HLP, HLPD, HVLP, HVLPD |
FKM |
DIN 51524 |
|
|
Environmentally compatible |
Insoluble in water |
HEES |
FKM |
ISO 15380 |
|
HEPR |
FKM |
|||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
|
|
Containing water |
Water-free |
HFDU, HFDR |
FKM |
ISO 12922 |
|
Containing water |
HFAS |
FKM |
ISO 12922 |
|
|
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. Flame-resistant – containing water: The maximum pressure differential per control edge is 175 bar. Otherwise, there is increased cavitation erosion.Tank preloading < 1 bar or > 20% of the pressure differential. The pressure peaks should not exceed the maximum operating pressures! Environmentally compatible: When using environmentally compatible hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate in the medium (700 mgzinc per pole tube). |
||||
electrical
|
Voltage type |
Direct voltage | ||
|
Power supply 1) |
V |
12 24 |
|
|
Voltage tolerance against ambient temperature |
see voltage tolerance characteristic curve | ||
|
Power consumption |
W |
22 | |
|
Duty cycle |
% |
100 | |
|
Maximum coil temperature 2) |
°C |
150 | |
|
Switching time according to ISO 6403 |
ON |
ms |
≤ 80 |
|
OFF |
ms |
≤ 50 | |
|
Maximum switching frequency |
1/h |
15000 | |
|
Protection class according to DIN EN 60529 (VDE 0470-1), DIN 40050-9 |
Version "K4" |
IP65 (with mating connector mounted and locked) | |
|
Version "C4" |
IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127) |
||
|
Version "K40" |
IP69K with mating connector mounted and locked | ||
| 1) | Other voltages upon request |
| 2) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
For applications outside these parameters, please consult us!
With the electrical connection "K4", the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

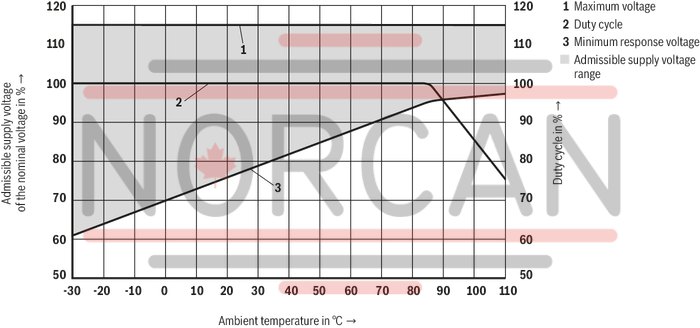

Voltage tolerance against ambient temperature; duty cycle
Voltage range and duty cycle dependent on the ambient temperature
(measured with HLP46, ϑoil = 40 ±5 °C) and 24 V coil

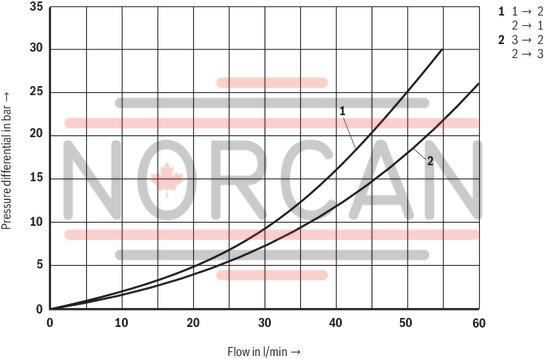

Δp-qV characteristic curves – Symbol C
Δp-qV characteristic curves – Symbol U

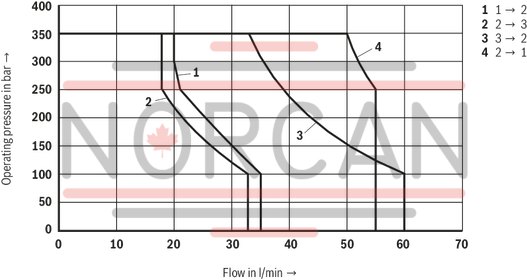

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)
Symbol C
Attention!
The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.
Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)
Symbol U

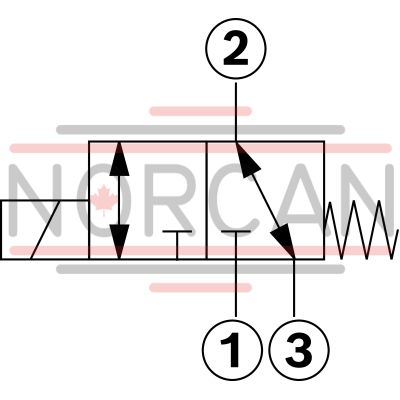

Symbol “C”
Symbol “U”
Dimensions in mm
|
1 |
Mating connectors, separate order, see data sheet 08006 |
|
2 |
Space required to remove the mating connector |
|
3 |
Wrench size 24, tightening torque MA = 45 to 50 Nm |
|
4 |
Dimension for mating connector “K4”, without circuitry |
|
5 |
Dimension () for mating connector “K4”, with circuitry |
|
6 |
Version "K40" |
|
7 |
Version "C4" |
|
8 |
Nut, tightening torque MA = 5+1 Nm |
|
9 |
Coil (separate order, see type key) |
|
10 |
Concealed manual override "N9", optional |
|
11 |
Screwable manual override "N10" (separate order, see Type keys) |
|
➀ |
Main port 1 |
|
➁ |
Main port 2 |
|
➂ |
Main port 3 |
|
LS |
Location shoulder |
Mounting cavity R/T-11A; 3 main ports; thread M20 x 1.5 mm
Dimensions in mm
|
➀ |
Main port 1 |
|
➁ |
Main port 2 |
|
➂ |
Main port 3 |
|
LS |
Location shoulder |
|
Tolerance for all angles ± 0.5 ° |
|
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
For directional valves with connector "C4" and "C4Z" (AMP Junior-Timer)Data sheet
Spare parts & repair
Mating connectors for directional valves with connector "K40" (Deutsch plug)
2P DT06 K40
Mating connectors for directional valves with connector "K40" (Deutsch plug)
2P DT06 K40
For directional valves with "K40" connector (Deutsch plug)Data sheet
Spare parts & repair
