BOSCH REXROTH
R901151294
$360.61 USD
- BOSCH REXROTH
- Material:R901151294
- Model:KSDER1PB/HN9V
Quantity in stock: 0
The Bosch Rexroth KSDER1PB/HN9V (R901151294) is a high-performance directional poppet valve, designed for direct operation with solenoid actuation. This screw-in cartridge valve is capable of handling a maximum operating pressure of up to 350 bar (5076 psi) and allows for a maximum flow of 60 l/min (15.9 gpm). It features a Sun TA cavity and comes equipped with an integrated Coil GZ which must be ordered separately. This model falls under the product family classification of directional poppet valves and is identified as a KSDE type within the product group. The KSDER1PB/HN9V offers a direct-acting, solenoid-actuated on/off control with concealed manual override options. Its spool type is a poppet, ensuring reliable performance in hydraulic systems utilizing fluids such as HL, HLP, HETG, HEPG, and HEES. The valve's normal position is normally open, with its nominal flow directly controlled through its 3-way ports number configuration. The sealing material used in this model is FKM, which provides excellent resistance to high temperatures and chemical exposure. With its robust construction and pressure-compensated design, the KSDER1PB/HN9V ensures leak-free blocking of flow when in the closed position. This Bosch Rexroth valve is particularly suitable for applications requiring precise control over fluid direction and flow within hydraulic systems. Its high-pressure capability makes it an ideal choice for demanding applications where reliability and performance are critical. The manual override feature adds an additional layer of operational security by allowing manual operation in the absence of electrical power to the solenoid.
2/2 directional poppet valve, direct operated with solenoid actuation
Unpacked Weight: 0.2807 kg
General
The 2/2 directional seat valves are direct operated, pressure-compensated screw-in cartridge valves. They basically consist of a screw-in section (4) with valve seat (1), solenoid (5) as well as closing element (3) and compression spring (2).
Function
The initial position of the valve (normally open "P" or normally closed "N") is determined by the position of the closing element (3) and the arrangement of the compression spring (2). Due to the structural design, the 2/2 directional seat valves are always pressure-compensated in relation to the actuating forces. The main ports ➀ and ➁ can be loaded with an operating pressure of 350 bar/500 bar (see Technical data).
Attention!
The flow is only admissible in the direction of arrow (see symbols)! With version “U” (operating pressure 500 bar) as well as with version “R...-17”, the main port ➀ is to be connected to the pump connection P! The valves of version “R...-17” are flow-optimized and thus achieve a lower pressure differential.
At symbol "P", the closing element (3) is pressed onto the seat by the solenoid (5), with symbol "N" by the compression spring (2). The flow is blocked in a leak-free manner.
The manual override allows the switching of the valve without solenoid energization. It is available in concealed version "N9" (6) or in screwable version "N11" (7) (see ordering codes).
Version "C4"
| Screw-in cartridge valve |
| Maximum operating pressure 350 bar (5000 psi) |
| Maximum flow 20 l/min (5 gpm) |
| Cavity Sun T-13A |
| Data Sheet | Download Data Sheet |
| Max. pressure | 350 |
| Coil | GZ37 |
| Product family classification | 2/2 directional poppet valve, direct operated with solenoid actuation |
| Productgroup ID | 9,10,11,12,13,14 |
| Product family type | KSDE |
| Ports number | 2 |
| Manual override | Concealed manual override |
| Type of actuation | Solenoid-actuated on/off |
| Sealing material | FKM |
| Cavity | Sun T-13A |
| Product type | KSDE |
| Max. flow | 20 |
| Type of connection | Screw-in cartridge valve |
| Normal position | Normally open |
| Nominal flow | 20 |
| Direct - Pilot | Direct acting |
| Positions | 2 |
| Product family | 2 ways |
| Coil integrated | To be ordered separately |
| Spool Poppet | Poppet type |
| Weight | 0.2807 |
| Hydraulic fluid | HL,HLP,HETG,HEPG,HEES |
(valve without coil) 1)
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
|
|
KSDE |
1 |
B |
/ |
H |
V |
* |
|
01 |
Directional seat valve, direct operated, electrically operated |
KSDE |
|||||
|
02 |
Maximum operating pressure 500 bar |
U |
|||||
|
Maximum operating pressure 350 bar |
R |
||||||
|
03 |
Component size |
1 |
|||||
|
04 |
2 main ports |
||||||
|
„R“ (350 bar) |
„U“ (500 bar) „R...–17“ (350 bar) |
||||||
|

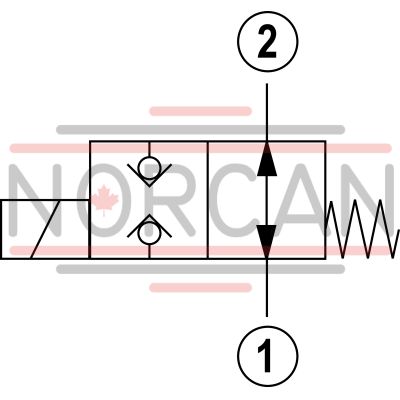

Symbols |
N |
||||||
|
P |
|||||||
|
05 |
Component series |
B |
|||||
|
06 |
High Performance and mounting cavity R/T-13A (see Mounting cavity) |
||||||
|
07 |
Without manual override |
N0 |
|||||
|
With concealed manual override |
N9 |
||||||
|
With screwable manual override |
N11 |
||||||
|
Version |
Symbol N |
Symbol P |
|||||
|
N0 |
N9 |
N11 |
N0 |
N9 |
N11 |
||
|
R (350 bar) |
X |
– |
X |
X |
X2) |
– |
|
|
U (500 bar) |
X |
– |
– |
X |
– |
– |
|
|
Seal material |
|||||||
|
08 |
FKM seals (other seals upon request) |
V |
|||||
|
Observe compatibility of seals with hydraulic fluid used. |
|||||||
|
09 |
Standard |
no code |
|||||
|
Flow-optimized 3) |
–17 |
||||||
|
10 |
Further details in the plain text |
* |
|||||
| 1) Complete valves with mounted coil available on request | |
| 2) Screwable manual override “N10” (actuation by means of internal hexagon with lock nut), possible as separate order, material no. R901051231; ordering code “N9” ! | |
| 3) Version “R” only (free-flowing on one side!) |
hydraulic
|
Size |
1 | |||
|
Maximum operating pressure |
Version |
„U“ | „R“ | |
|
bar |
500 1) | 350 2) | ||
|
Version “R...-17” 1) |
bar |
350 | ||
|
Maximum flow |
Version |
„U“ | „R“ | |
|
l/min 3) |
12 | 20 | ||
|
Hydraulic fluid |
see table | |||
|
Hydraulic fluid temperature range |
°C |
-40 … +80 | ||
|
Viscosity range |
mm²/s |
4 … 500 | ||
|
Maximum admissible degree of contamination of the hydraulic fluid 4) |
Class 20/18/15 according to ISO 4406 (c) | |||
|
Load cycles |
Version (R: 350 bar [5100 psi]; U: 500 bar [5100 psi]) |
„U“ | „R“ | |
|
million |
5 | 10 | ||
| 1) | On all ports if P ≥ A; for design reasons |
| 2) | At all ports |
| 3) | See performance limits |
| 4) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Mineral oil |
HL, HLP |
FKM, NBR |
DIN 51524 |
|
|
Bio-degradable |
Insoluble in water |
HEES (synthetic esters) |
FKM |
VDMA 24568 |
|
HETG (rape seed oil) |
FKM, NBR |
|||
|
Soluble in water |
HEPG (polyglycols) |
FKM |
VDMA 24568 |
|
|
Other hydraulic fluids on request |
||||
With the electrical connection "K4", the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.
electrical
|
Voltage type |
Direct voltage | |||
|
Power supply 1) |
V |
12 24 |
||
|
Voltage tolerance against ambient temperature |
See characteristic curves | |||
|
Power consumption |
W |
22 | ||
|
Duty cycle |
% |
100 | ||
|
Maximum coil temperature 2) |
°C |
150 | ||
|
Switching time according to ISO 6403 (solenoid horizontal) 3) |
ON (➀ → ➁) |
ms |
≤ 60 | 60 |
|
OFF (➁ → ➀) |
ms |
≤ 60 | 60 | |
|
Maximum switching frequency |
Version |
„U“ | „R“ | |
|
Hz |
3600 | 9000 | ||
|
Protection class according to DIN EN 60529 |
Version "K4" |
IP65 (with mating connector mounted and locked) | ||
|
Version "C4" |
IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127) |
|||
|
Version "K40" |
IP69K with mating connector mounted and locked | |||
| 1) | Other voltages upon request |
| 2) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
| 3) | ≤ 95 with version “R...-17” |
general
|
Size |
1 | ||
|
Weight |
Valve |
kg |
0.3 |
|
Coil |
kg |
0.25 | |
|
Installation position |
any | ||
|
Ambient temperature range |
°C |
-40 … +110 | |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 °C ± 5 °C) and 24 V coil

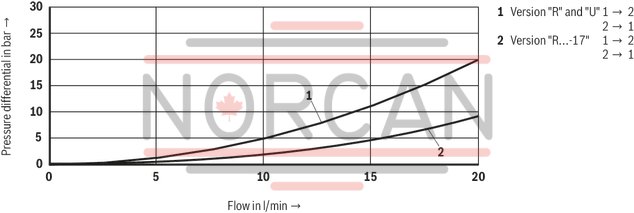

Δp-qV characteristic curves

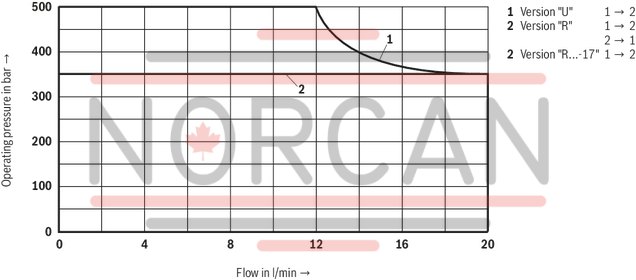

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)
Attention!
The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.

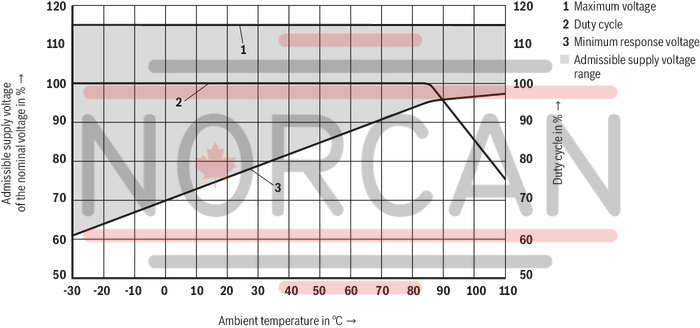

Voltage tolerance against ambient temperature; duty cycle
Version “R” (350 bar)
Symbol “N” normally closed
Version “R” (350 bar)
Symbol “P” normally open
Version “U” (500 bar) and “R…-17” (350 bar)
Symbol “N” normally closed
Version “U” (500 bar) and “R…-17” (350 bar)
Symbol “P” normally open

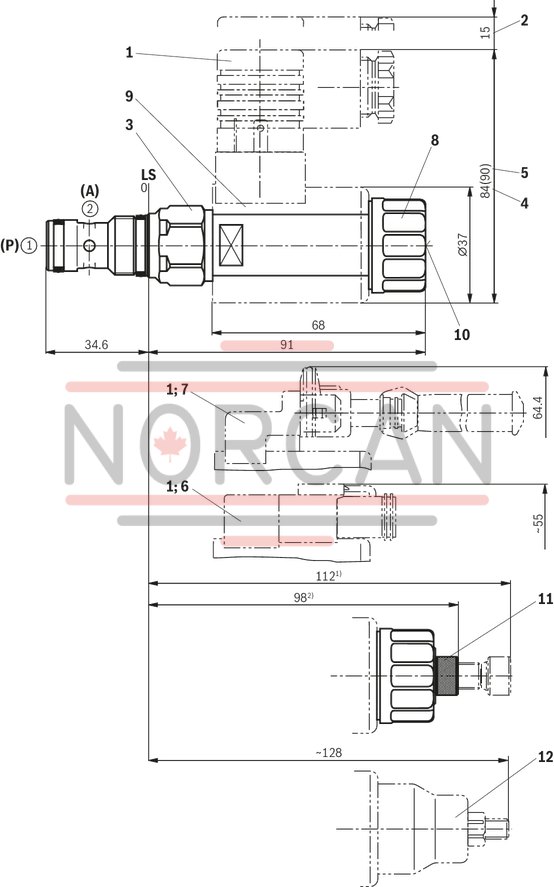

Dimensions in mm
|
1 |
Mating connector (separate order) |
|
2 |
Space required to remove the mating connector |
|
3 |
SW24, tightening torque MA = 60+5 Nm |
|
4 |
Dimension for mating connector “K4”, without circuitry |
|
5 |
Dimension () for mating connector “K4”, with circuitry |
|
6 |
Version "K40" |
|
7 |
Version "C4" |
|
8 |
Nut, tightening torque MA = 5+1 Nm |
|
9 |
Coil (separate order) |
|
10 |
Concealed manual override "N9", optional |
|
11 |
Screwable manual override "N11", optional |
|
12 |
Screwable manual override “N10” (separate order) |
|
➀ |
Main port 1, pump P 3) |
|
➁ |
Main port 2, actuator A 3) |
|
LS |
Location shoulder |
| 1) actuated | |
| 2) screwed in | |
| 3)Attention! | |
| Unambiguous pin assignment. P and A must not be exchanged or closed! |

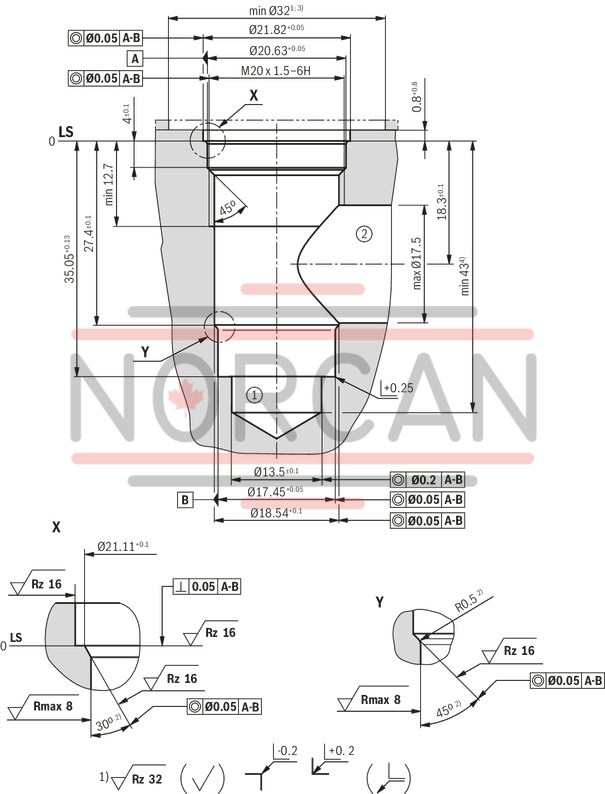

Mounting cavity R/T-13A; 2 main ports; thread M20 x 1.5 mm
Dimensions in mm
| 1) Deviating from T-13A | |
| 2) All seal ring in sertion faces are rounded and free of burrs | |
| 3) With countersink | |
| 4) Depth for mobile parts |
|
➀ |
Main port 1 |
|
➁
|
2 main ports |
|
LS |
Location shoulder tolerance for all angles ±0.5 ° |
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
For directional valves with connector "C4" and "C4Z" (AMP Junior-Timer)Data sheet
