The Bosch Rexroth VEDS-10A-5310 (R901274118) is a high-performance, solenoid-operated directional spool valve designed for hydraulic systems. This direct-acting, screw-in cartridge valve is part of the VEDS product family, known for its reliability and efficient control of fluid flow in hydraulic circuits. The VEDS-10A-5310 is engineered to handle a maximum operating pressure of up to 350 bar (5076 psi) and can facilitate a maximum flow rate of 80 l/min (21 gpm), making it suitable for a wide range of demanding applications. Featuring a CAAN cavity, the valve ensures compatibility with standard cavities in the industry. It employs an FKM sealing material that offers excellent resistance to high temperatures and chemical exposure, contributing to the valve's durability and long service life. The VEDS-10A-5310 operates with direct acting spool technology and includes an integrated load-sensing port which allows for precise control of the hydraulic system. The unit comes equipped with wet-pin DC solenoids that can be rotated as needed for flexible installation, and it offers an optional manual override feature that provides additional control in case of solenoid failure or when electrical power is not available. With its three-position configuration and two-way operation, this valve is capable of controlling the start, stop, and direction of fluid flow with precision. Bosch Rexroth's commitment to quality is evident in this product's robust design which includes a poppet-type spool made from durable materials ensuring consistent performance even under continuous use. The VEDS-10A-5310 has been designed for ease of installation and maintenance with its screw-in cartridge style connection. It operates efficiently with HL or HLP hydraulic fluids, making it versatile across various hydraulic systems without compromising on performance or safety.
Unpacked Weight: 0.4 kg
General information
The 5/3 directional spool valves are direct operated, pressure-compensated screw-in cartridge valves. They control the start, stop and direction of flow and basically consist of pole tube (1), socket (2), a control spool (5) and a return spring (4).
Function
In the de-energized condition, the control spool (5) is held in the initial position by the return spring (4). The control spool (5) is actuated by wet-pin DC solenoids (3.1; 3.2). The symbols are realized by different spools ("10”; “20”). The main ports ➀, ➁, ➂, ➃ and ➄ can be pressurized continuously with an operating pressure of 250 bar. The ports have a fixed pin assignment (see Symbols).
The manual override (6) allows for the switching of the valve without solenoid energization.
Version "C4"
Version "K4"
Version "K40"
Type VEDS-10A-53…
|
➀ |
Main port 1 (LS) |
|
➁ |
Main port 2 (A) |
|
➂ |
Main port 3 (T) |
|
➃ |
Main port 4 (B) |
|
➄ |
Main port 5 (P) |
|
7 |
Initial position |
|
8 |
Spool position “a” |
|
9 |
Spool position “b” |
| Screw-in cartridge valve |
| Maximum operating pressure 250 bar (3600 psi) |
| Maximum flow 25 l/min (7 gpm) |
| Cavity CA-10A-5N |
| Max. pressure | 250 |
| Coil | GZ37 |
| Product family classification | Solenoid operated valves direct acting spool 5-way 3-position |
| Productgroup ID | 7,21,22,23,24,25 |
| Product family type | VEDS |
| Ports number | 5 |
| Type of actuation | Solenoid-actuated on/off |
| Sealing material | FKM |
| Cavity | CA-10A-5N |
| Product type | VEDS |
| Max. flow | 25 |
| Type of connection | Screw-in cartridge valve |
| Nominal flow | 25 |
| Direct - Pilot | Direct acting |
| Positions | 3 |
| Product family | 5 ways |
| Coil integrated | To be ordered separately |
| Spool Poppet | Spool type |
| Weight | 0.4 |
| Hydraulic fluid | HL,HLP |
(valve without coil)1)
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
|||
|
VEDS |
- |
10A |
- |
53 |
OD53 |
54 |
KK2 |
0 |
0 |
|
01 |
Directional spool valve, direct operated |
VEDS |
|
|
02 |
Frame size 10 |
10A |
|
|
03 |
5/3-way version |
53 |
|
|
Symbols |
|||
|
04 |
|
|
10 |
|
|
20 |
|
|
05 |
Without manual override |
0 |
|
|
With pull/push manual override |
-M1 |
||
|
06 |
5/3 directional spool valve, direct operated, with solenoid actuation |
OD53 |
|
|
Symbols |
|||
|
07 |
see item 04 |
10 |
|
|
20 |
|||
|
08 |
Frame size 10: R/UNF 10-05-0-08, see Mounting cavity |
54 |
|
|
09 |
On/off valve with 2 coils |
KK2 |
|
|
10 |
Without manual override |
0 |
|
|
With pull/push manual override |
1 |
||
|
11 |
Standard version |
0 |
|
|
12 |
Revision status |
0 |
|
| 1) Complete valves with mounted coil on request. | |
general
|
Size |
10 | ||
|
Weight |
Valve |
kg |
0.35 |
|
Coil |
kg |
0.25 | |
|
Installation position |
any - if it is ensured that no air can accumulate upstream of the valve. Otherwise, we recommend suspended installation of the valve | ||
|
Ambient temperature range 1) |
°C |
-40 … +110 | |
|
Storage temperature range |
°C |
-20 … +80 | |
| 1) | see voltage tolerance characteristic curve |
general (environmental audits)
|
Salt spray test according to DIN 50021 |
h |
720 |
|
Surface protection DC solenoids |
Coating according to DIN 50962-Fe//ZnNi with thick film passivation |
hydraulic
|
Size |
10 | ||
|
Maximum operating pressure |
bar |
250 | |
|
Maximum flow |
l/min |
25 | |
|
Zero flow 1) |
ml/min |
< 60 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range |
°C |
-40 … +80 | |
|
Viscosity range 2) |
mm²/s |
5 … 1,000 | |
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | ||
|
Fatigue strength according to ISO 10771 |
2 million | ||
| 1) | With Δp = 250 bar; HLP46, ϑOil = 40 °C. |
| 2) | preferably 10 to 100 mm2/s |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Mineral oils |
HL, HLP |
FKM |
DIN 51524 |
|
|
Bio-degradable |
Insoluble in water |
HEES |
FKM |
VDMA 24568 |
|
Soluble in water |
HEPG |
FKM |
||
|
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluids used must be 40 K higher than the maximum solenoid surface temperature. Bio-degradable: If bio-degradable hydraulic fluids are used that are also zinc-solving, there may be an accumulation of zinc. |
||||
In the electrical connection, the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.
electrical
|
Voltage type |
Direct voltage | ||
|
Power supply 1) |
V |
12 24 |
|
|
Voltage tolerance against ambient temperature |
see voltage tolerance characteristic curve | ||
|
Power consumption |
W |
22 | |
|
Duty cycle |
% |
100 | |
|
Maximum coil temperature 2) |
°C |
150 | |
|
Switching time according to ISO 6403 |
ON |
ms |
≤ 60 |
|
OFF |
ms |
≤ 60 | |
|
Maximum switching frequency |
1/h |
15000 | |
|
Protection class according to DIN EN 60529 (VDE 0470-1), DIN 40050-9 |
Version "K4" |
IP65 (with mating connector mounted and locked) | |
|
Version "C4" |
IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127) |
||
|
Version "K40" |
IP69K with mating connector mounted and locked | ||
| 1) | Other voltages upon request |
| 2) | Due to the surface temperatures occurring at solenoid coils, the European standards ISO 13732-1 and ISO 4413 need to be adhered to. |
For applications outside these parameters, please consult us!
Performance limits (measured with HLP46, ϑOil = 40 ±5 °C)
Symbol “10” and “20”
Voltage tolerance against ambient temperature; duty cycle
Voltage range and duty cycle dependent on the ambient temperature
Attention!
The specified performance limits are valid for use with two directions of flow (e. g. from ➄ to ➁ and simultaneous return flow from ➃ to ➂). Due to the flow forces acting within the valves, the admissible performance limit may be considerably lower with only one direction of flow (e. g. from ➄ to ➁ while port ➃ is blocked)!
In such use cases, please consult us!
The performance limit was determined when the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.

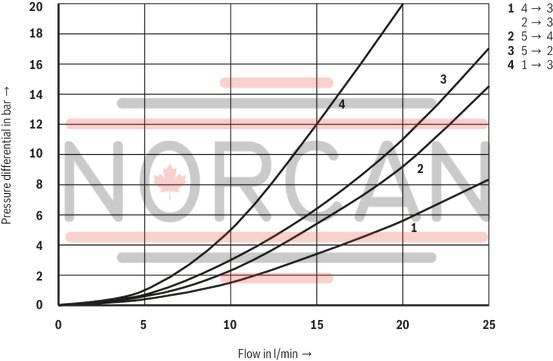

(measured with HLP46, ϑoil = 40 ±5 °C) and 24 V coil
Symbol “10”
Symbol “20”
Dimensions in mm
|
1 |
Mating connectors (separate order) |
|
2 |
Space required to remove the mating connector |
|
3 |
Wrench size 24, tightening torque MA = 55+5 Nm |
|
4 |
Dimension for mating connector “K4”, without circuitry |
|
5 |
Dimension () for mating connector “K4”, with circuitry |
|
6 |
Version "K40" |
|
7 |
Version "C4" |
|
8 |
Nut, tightening torque MA = 5+1 Nm |
|
9 |
Coil (separate order, see type key) |
|
10 |
Pull/push manual override "1" |
|
➀ |
Main port 1 (LS) |
|
➁ |
Main port 2 (A) |
|
➂ |
Main port 3 (T) |
|
➃ |
Main port 4 (B) |
|
➄ |
Main port 5 (P) |
|
LS |
Location shoulder |
Mounting cavity R/UNF-10-05-0-08; 5 main ports; thread 7/8-14UNF-2B
Dimensions in mm
| 1) | Visual inspection |
|
➀ |
Main port 1 (LS) |
|
➁ |
Main port 2 (A) |
|
➂ |
Main port 3 (T) |
|
➃ |
Main port 4 (B) |
|
➄ |
Main port 5 (P) |
|
LS |
Location shoulder |
|
Tolerance for all angles ± 0.5 ° |
|
|
All seal ring insertion faces are rounded and free of burrs |
|
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
For directional valves with connector "C4" and "C4Z" (AMP Junior-Timer)Data sheet
Spare parts & repair
