BOSCH REXROTH
R901318922
$3,103.90 USD
- BOSCH REXROTH
- Material:R901318922
- Model:LFA50DZWA2-7X/315
Quantity in stock: 0
The Bosch Rexroth LFA50DZWA2-7X/315 (R901318922) is a sophisticated hydraulic control device designed for reliable sequencing of pressure in conjunction with way cartridge valves, following the hydraulic symbol DZWA. This unit features manual pressure adjustment, allowing for precise control over sequencing pressure that can be switched off. It is constructed to be mounted onto a subplate with an ISO control cover accommodating way cartridge valves. With a maximum pressure capacity and compatibility with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC, this model ensures versatility across different hydraulic systems. The seals are made from NBR to maintain integrity under diverse operating conditions. The LFA50DZWA2-7X/315 is engineered to integrate seamlessly into standardized receiving holes according to DIN ISO norms and can be closed with a control cover. This product allows for the realization of different pressure functions by combining it with appropriate cartridge valves and control covers. Its pilot control valve can be adjusted manually or proportionally if electrically operated (not included). Additionally, the pilot oil supply can be external or internal, providing flexibility in system design. The LFA50DZWA2-7X/315 enables pressure-dependent connection of secondary systems through its pilot control valve set within the control cover. This feature facilitates efficient management of system pressures and flow paths within various circuit configurations such as unloading low-pressure systems when certain conditions are met or connecting secondary systems based on specific pressure requirements. The product's robust design ensures long-term performance in demanding applications while offering customization options through its manual actuation and potential electric operation of pilot valves (not included). It represents a critical component in advanced hydraulic systems where precision and reliability are paramount.
Size 50, manual pressure adjustment for sequencing pressure that can be switched off, with installation surface ISO4401
Control cover for 2-way cartridge valves Reliable sequencing of pressure in connection with a 2-way cartridge valve according to the hydraulic symbol.
Unpacked Weight: 9.700 kg
General
2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).
The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.
By combination of cartridge valves with the control covers, different pressure functions can be realized. .
Pressure sequencing functions
This function enables pressure-dependent connection of a second system.
The required switching pressure is set at the pilot control valve integrated into the control cover.
The pilot oil supply may either be realized externally (pilot oil port X) or internally (from port A via pilot oil ports X or Z2).
The pilot control spring chamber is directed via ports Y or Z1, depressurized to the tank.
Circuit examples
Example 1: (Circuit for pressure-dependent unloading of the low-pressure system)
In the illustrated circuit, the system is supplied via a high-pressure and a low-pressure pump. The system pressure pS acts externally from the high-pressure side via pilot oil port X on the pilot control valve, which sets the low-pressure side to depressurized circulation after the set pressure value is reached. The check valve RV (not included in the scope of delivery) prevents the connection of the high-pressure system with the now depressurized low-pressure system.
On reaching the pressure set at the pilot control spring, the pilot control valve is switched and the spring chamber of the main valve to the tank is unloaded. The main spool is opened and the connection A to B is released.
With the version LFA..DZW..., the required switching position can be selected besides the hydraulic circuit by means of an electrically operated pilot control valve (not included in the scope of delivery of the control cover LFA..DZ...).
Example 2: (Circuit for pressure-dependent connection of a second system)
With this circuit, system 2 is not connected before the pressure in system 1 complies with the specified value. Pilot oil discharge is realized internally from port A of the main valve.

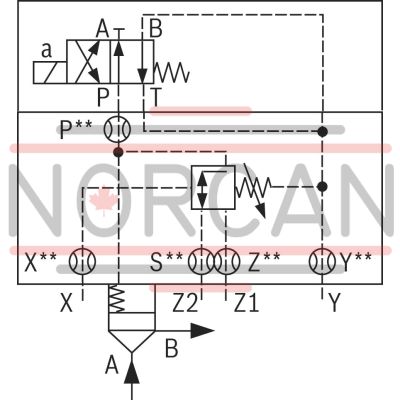

| DZWA |
| Sequencing pressure that can be switched off |
| Size 16 … 100 |
| Maximum operating pressure 420 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Productgroup ID | 9,10,11,12,13,14 |
| Type of actuation | manual pressure adjustment |
| Size | 50 |
| Type of connection | Subplate mounting |
| Connection diagram | ISO 7368 |
| Weight | 9.700 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
General information on the control cover for the pressure sequencing function
|
