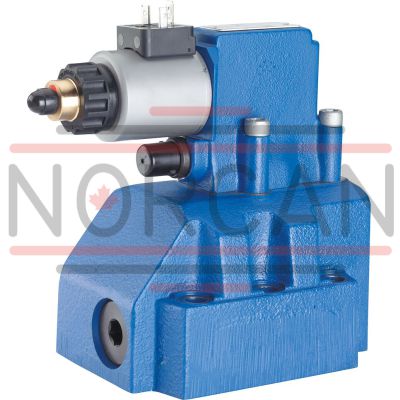

The Bosch Rexroth DREM30-6X/200YMG24-8K4M (R901352921) is a high-performance industrial hydraulic valve designed for precision pressure reduction in hydraulic systems. This valve operates by means of a proportional solenoid and is intended for subplate mounting with a porting pattern according to ISO standards. The DREM30-6X/200YMG24-8K4M features spool symbol BA and can handle a maximum flow, with the capability to reduce the system pressure to a command value signal reliably. Equipped with NBR seals, the valve is suitable for use with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. It has an electrical connection described as Connector pole PE according to DIN EN and requires an external amplifier for its actuation. The supply voltage necessary for operation is 24 VDC. The unit includes optional components such as a check valve that can be installed between ports A and B for free flowback, as well as an optional spring-loaded pressure relief valve that serves as maximum pressure limitation to protect against excessive electric control current at the proportional solenoid. This Bosch Rexroth valve is characterized by its robust construction and precise control capabilities. It features a pilot control valve with proportional solenoid (for setting the pressure in channel A), a main spool insert (for controlling flow from B to A), and an optional check valve (for allowing free flow back from A to B). Additionally, it includes a pressure gauge connection for monitoring reduced pressure in channel A. Overall, the Bosch Rexroth DREM30-6X/200YMG24-8K4M offers reliable performance and versatility for applications requiring controlled pressure reduction in hydraulic circuits.
Size 30, B → A, electrical with external electronics, 24 VDC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 9.360 kg
Valves of type DRE(M) are pilot-operated pressure reducing valves. They are used for operating pressure reduction.
These valves basically consist of a pilot control valve (1) with proportional solenoid (2), a main valve (3) with main spool insert (4), as well as an optional check valve (5).
Type DRE...
The pressure in channel A is set in a command value-dependent form via the proportional solenoid (2).
In rest position – no pressure in channel B –, the spring (11) holds the main spool (4) in its initial position. The connection from channel B to A is open.
The pressure in channel A acts on the bottom side of the main spool in closing direction, and the pressure of the pilot control valve on the spring side of the main spool in the opening direction from channel B to A.
The pilot oil is taken from channel B and flows through the bore (6) to the constant-current control (9) which keeps the pilot flow constant independent of the pressure drop between channel A and B. From the constant-current control (9), the pilot flow flows through the bores (7) via the valve seat (10), passes the valve poppet (8) and is directed into channel Y to the tank.
The pressure required in channel A is preset at the related amplifier. The proportional solenoid pushes the valve poppet (8) in the direction of the valve seat (10) and limits the pressure in the spring chamber (12) to the set value. In the control position of the main spool (4), the hydraulic fluid flows from channel B to A and generates the pressure in channel A (setting of the pilot control valve plus spring (11)). If the set pressure in A is achieved, the forces at the main spool are balanced.
If the actuator at port A does not move (e. g. cylinder piston at stop) and a lower pressure is set for channel A via the proportional solenoid (2), the main spool (4) closes the connection from B to A and simultaneously opens the connection from channel A to the spring chamber (12) of the main spool (4). In this position, the compression volume in channel A can expand via the pilot control valve (1) and port Y.
For the free flow back from channel A to B, a check valve (5) can optionally be installed.
A pressure gauge connection (13) allows for the control of the reduced pressure in channel A.
Type DREM...
For hydraulic protection against an inadmissibly high electric control current at the proportional solenoid, which imperatively results in excessive pressures in port A, you can optionally install a spring-loaded pressure relief valve as maximum pressure limitation (14). The maximum pressure limitation is pre-set based on the relevant pressure rating.
| Volume flow, max. 300 l/min |
| Operating pressure, max. 315 bar |
| Size 32 |
| Component series 6X |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | B → A |
| Max. pressure | 315 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 3 |
| Type of actuation | Electrical with external electronics |
| Size | 32 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Max. flow | 300 |
| Type of connection | Subplate mounting |
| Size_CETOP | D10 |
| Connection diagram | ISO 5781 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 9.360 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
||
|
DRE |
30 |
‒ |
6X |
/ |
Y |
G24 |
K4 |
* |
|
01 |
Proportional pressure reducing valve, pilot-operated, with external control electronics |
DRE |
|
02 |
Without maximum pressure limitation |
no code |
|
With maximum pressure limitation |
M1) |
|
|
Size |
||
|
03 |
Size 32 |
30 |
|
04 |
Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) |
6X |
|
Pressure rating |
||
|
05 |
50 bar |
50 |
|
100 bar |
100 |
|
|
200 bar |
200 |
|
|
315 bar |
315 |
|
|
06 |
Pilot oil return always external, separate and depressurized to the tank |
Y |
|
07 |
With check valve between A and B |
no code |
|
Without check valve |
M |
|
|
Power supply |
||
|
08 |
Direct voltage 24 V |
G24 |
|
09 |
1600 mA version |
no code |
|
800 mA version |
-8 2) |
|
|
Electrical connection |
||
|
10 |
Without mating connector, with connector according to DIN EN 175301-803, separate order |
K4 3) |
|
Seal material |
||
|
11 |
NBR seals |
M |
|
FKM seals |
V |
|
|
12 |
Further details in the plain text |
* |
|
1) |
The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current). |
|
|
2) |
Replacement for series 4X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid). |
|
|
3) |
Mating connectors, separate order |
|
For applications outside these parameters, please consult us!
general
|
Type |
DRE(M) | |
|
Size |
32 | |
|
Component series |
6X | |
|
Installation position |
Any | |
|
Weight |
kg |
8.6 |
|
Storage temperature range |
°C |
-20 … +80 |
|
Ambient temperature range |
°C |
-20 … +70 |
hydraulic
|
Type |
DRE(M) | ||
|
Size |
32 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Maximum operating pressure |
Port A |
bar |
315 |
|
Port B |
bar |
315 | |
|
Maximum set pressure in port A |
Pressure rating 50 bar |
bar |
50 |
|
Pressure rating 100 bar |
bar |
100 | |
|
Pressure rating 200 bar |
bar |
200 | |
|
Pressure rating 315 bar |
bar |
315 | |
|
Minimum set pressure with command value 0 V in channel A or P➀ |
See characteristic curve | ||
|
Maximum pressure relief function |
Pressure rating 50 bar |
bar |
75 |
|
Pressure rating 100 bar |
bar |
130 | |
|
Pressure rating 200 bar |
bar |
230 | |
|
Pressure rating 315 bar |
bar |
350 | |
|
Pilot flow |
l/min |
1 | |
|
Maximum flow |
l/min |
300 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
15 … 380 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
|
Hysteresis 2) |
% |
± 3 | |
|
Repetition accuracy 2) |
% |
< ± 2 | |
|
Linearity 2) |
% |
± 3.5 | |
|
Manufacturing tolerance of the command value pressure characteristic curve 3) |
% |
± 5 | |
|
Step response |
10 ... 90% 4) |
ms |
≈ 160 |
|
90 ... 10% 4) |
ms |
≈ 450 | |
|
10 ... 90% 5) |
ms |
≈ 250 | |
|
90 ... 10% 5) |
ms |
≈ 450 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | from maximum set pressure; does not apply to types "G24-8" |
| 3) | of the maximum set pressure, related to the hysteresis characteristic curve, pressure increasing; does not apply to types “G24-8” |
| 4) | measured with standing hydraulic fluid column, 1.0 liters at port A |
| 5) | measured with standing hydraulic fluid column, 5 liters at port A |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP, HLPD, HLPP |
NBR / FKM |
DIN 51524 |
|
Flame-resistant - water-free |
HFDU, HFDR |
FKM |
ISO 12922 |
|
Flame-resistant - containing water |
HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) |
NBR |
ISO12922 |
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.
Flame-resistant - containing water: |
|||
electrical
|
Type |
DRE(M) | |||
|
Minimum solenoid current |
with 1600 mA - coil |
mA |
≤ 100 | |
|
with 800 mA - coil |
mA |
≤ 100 | ||
|
Maximum solenoid current |
with 1600 mA - coil |
mA |
1760 | |
|
with 800 mA - coil |
mA |
840 | ||
|
Solenoid coil resistance |
Cold value at 20 °C |
with 1600 mA - coil |
Ω |
5.5 |
|
with 800 mA - coil |
Ω |
20.6 | ||
|
Solenoid coil resistance |
Maximum hot value |
with 1600 mA - coil |
Ω |
8.05 |
|
with 800 mA - coil |
Ω |
33 | ||
|
Duty cycle |
% |
100 | ||
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure in port P dependent on the command value (flow = 0.8 l/min)
Type DRE(M)
Pressure in channel A dependent on command value (measured with a flow of 0 l/min from B to A as well as related control electronics)
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
Comparison series 4X-6X / pressure rating 50 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Comparison series 4X-6X / pressure rating 100 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Comparison series 4X-6X / pressure rating 200 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Comparison series 4X-6X / pressure rating 315 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Pressure rating 200 bar (with VT-SSPA1)
Pressure in channel A dependent on the flow Qv
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
Pressure in port A dependent on pressure in port B
pmin - Qv characteristic curve
Pressure differential from A to B via the check valve
Type DRE-6X/...YM...
Type DREM-6X/...YM...
Type DRE-6X/...Y...
Type DREM-6X/...Y...
Connection at mating connector
Connection at the connector
|
1 |
Upon delivery, this port (G1/4) is closed. After removal of the blanking plug, an external and separate depressurized pilot oil return to the tank is, however, also possible here. |
|
2 |
Space required to remove the mating connector |
|
3 |
Name plate |
|
4 |
Maximum pressure limitation with version DREM and DREME |
|
5 |
Check valve, optional |
|
6 |
Locating pin |
|
7 |
Pilot oil return always external, separate and depressurized to the tank |
|
8 |
Blind counterbore |
|
9 |
Identical seal rings for ports A and B |
|
10 |
Identical seal rings for port Y and blind counterbore (pos. 8) |
|
11 |
Pressure gauge connection G1/4; 12 deep |
|
12 |
mating connector according to DIN EN 175301-803 |
|
13 |
Mating connector according to DIN EN 175201-804 |
|
14 |
Integrated electronics (OBE) |
|
15 |
Space required to remove the mating connector |
|
16 |
Cable fastening |
