BOSCH REXROTH
R901382075

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

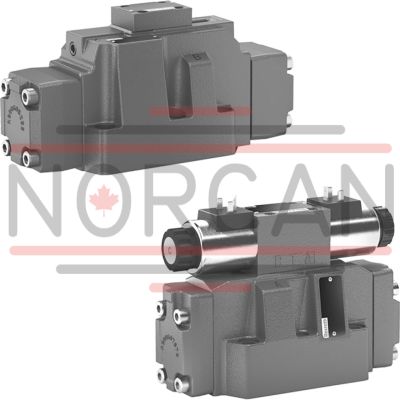

The Bosch Rexroth H-4WEH22E7X/6EG24N9S2K4/B10 (R901382075) is an industrial hydraulic valve designed for high-performance applications, ensuring reliable switching of oil flow direction as indicated by its spool symbol, Symbol E. This particular model is a size CETOP solenoid-actuated valve with external pilot oil supply and return, which is essential for the operation of the spool valve that is pilot-operated. It boasts a maximum pressure capacity that allows it to function effectively under demanding conditions. The H-4WEH22E7X/6EG24N9S2K4/B10 features an electrical connection described as a connector pole PE conforming to EN standards, highlighting its compatibility with specific electrical requirements. The product group ID details are not disclosed in this summary. It includes a number of ports for versatile connectivity and controls that are solenoid-actuated, providing precise actuation via solenoid power. Subplate mounting is used for this valve's type of connection, adhering to NFPA T.. R D and ISO standards for installation and interoperability. It operates on a supply voltage of 24 VDC and has multiple switching positions, which allows for flexible use in various hydraulic systems. The valve's weight is not specified here. Designed to work with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types; it uses NBR seals to maintain integrity and prevent leaks under operational pressures. The maximum flow rate through the valve and the exact number of switching positions have not been provided in this summary. In summary, the Bosch Rexroth H-4WEH22E7X/6EG24N9S2K4/B10 is a robust and reliable hydraulic component designed for sophisticated systems requiring precise control of fluid dynamics within industrial settings.
