BOSCH REXROTH
R901465038
$10,345.07 USD
- BOSCH REXROTH
- Material:R901465038
- Model:4WRLE16V250L-4X/MXY/24F1
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

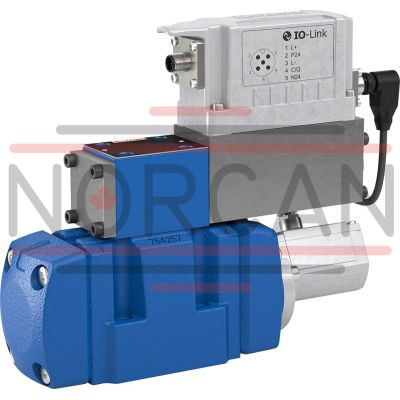

The Bosch Rexroth 4WRLE16V250L-4X/MXY/24F1 (R901465038) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, featuring a spool valve with a linear characteristic curve and pilot operation. This model is equipped with integrated electronics for precise actuation and includes internal piston position feedback to ensure high accuracy in operation. The valve operates with an external pilot oil supply and return, and conforms to multiple regulations including CE for electromagnetic compatibility, the RoHS Directive, and the REACH Regulation. The 4WRLE16V250L-4X/MXY/24F1 has a max pressure capacity suitable for demanding applications and utilizes a connector pole PE according to EN for its electrical connections. It is sized according to industry standards with subplate mounting conforming to NFPA T3.5.1 R2 D03 SizeCETOP D03 and ISO connection diagrams, ensuring compatibility and ease of integration into various hydraulic systems. With nominal flow capabilities, this valve operates on a supply voltage of 24 VDC and features four switching positions. The unit weighs in at a substantial weight indicating robust construction suitable for industrial environments. The seals are made from NBR (Nitrile Butadiene Rubber), offering good resistance against hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Connectivity options include analog command value input ranging from 4 mA to 20 mA, allowing for precise control adjustments. This model's number of ports provides flexibility in system design or expansion. Overall, the Bosch Rexroth 4WRLE16V250L-4X/MXY/24F1 is engineered to deliver reliable performance and accurate control in sophisticated hydraulic systems requiring precise manipulation of fluid dynamics.
The Bosch Rexroth 4WRLE16V250L-4X/MXY/24F1 (R901465038) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, featuring a spool valve with a linear characteristic curve and pilot operation. This model is equipped with integrated electronics for precise actuation and includes internal piston position feedback to ensure high accuracy in operation. The valve operates with an external pilot oil supply and return, and conforms to multiple regulations including CE for electromagnetic compatibility, the RoHS Directive, and the REACH Regulation. The 4WRLE16V250L-4X/MXY/24F1 has a max pressure capacity suitable for demanding applications and utilizes a connector pole PE according to EN for its electrical connections. It is sized according to industry standards with subplate mounting conforming to NFPA T3.5.1 R2 D03 SizeCETOP D03 and ISO connection diagrams, ensuring compatibility and ease of integration into various hydraulic systems. With nominal flow capabilities, this valve operates on a supply voltage of 24 VDC and features four switching positions. The unit weighs in at a substantial weight indicating robust construction suitable for industrial environments. The seals are made from NBR (Nitrile Butadiene Rubber), offering good resistance against hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Connectivity options include analog command value input ranging from 4 mA to 20 mA, allowing for precise control adjustments. This model's number of ports provides flexibility in system design or expansion. Overall, the Bosch Rexroth 4WRLE16V250L-4X/MXY/24F1 is engineered to deliver reliable performance and accurate control in sophisticated hydraulic systems requiring precise manipulation of fluid dynamics.
Size 16, symbol V, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Unpacked Weight: 11.6 kg
External pilot oil supply, external pilot oil return |
Spool valve |
Pilot-operated |
Linear |
Digital interface, IO-Link for I4.0 |
Maximum flow 4700 l/min |
Size 10 … 35 |
Component series 4X |
Maximum operating pressure 350 bar |
Rated flow 60 … 1500 l/min |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol V |
Max. pressure | 350 |
Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | Electrical with integrated electronics |
Conformity description | CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU REACH Regulation (EC) no. 1907/2006 |
Size | 16 |
Electrical connector | Connector 7-pole (6 + PE) |
Max. flow | 800 |
Type of connection | Subplate mounting |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D07 |
Size_CETOP | D07 |
Nominal flow | 250 |
Connection diagram | ISO 4401-07-07-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 3 |
Weight | 11.6 |
Seals | NBR |
Connectivity | Analog, command value 4 … 20 mA |
Hydraulic fluid | HL,HLP,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) |
Conformity | CE,RoHS |
Conformity | CE |
