BOSCH REXROTH
R902553519
$5,059.05
- BOSCH REXROTH
- Material:R902553519
- Model:A10VO45LA7DG/32R-VSC72U00E
Quantity in stock: 0

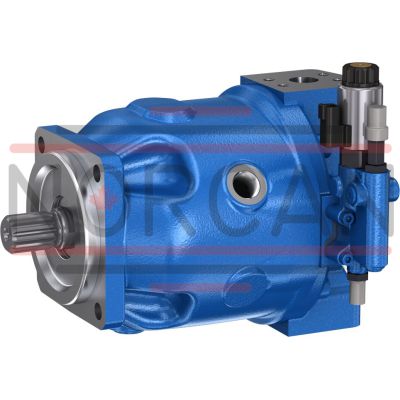

A10V O, variable displacement unit, open circuit, medium pressure, size: 45 cm³, power controller, with through drive
A10VO is a variable pump with axial piston transmission in swash plate design for hydrostatic drives in the open circuit. The flow is proportional to the drive speed and the displacement. By adjusting the swash plate, the flow can be steplessly changed.
Unpacked Weight: 32.6 kg
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Paint/top coat | without |
| Test certificate | Without |
| Series | Series 3, index 2 |
| Productgroup ID | 7,21,22,23,24,25 |
| Rotational speed | 1800 |
| Shaft end | Splined shaft |
| Control device | Power controller |
| Sealing material | FKM (standard) |
| Type of actuation | Variable pump, open circuit |
| Working pressure | 276 |
| G controller - standby pressure | 20.0 |
| Min. displacement setting | Fix |
| Drive torque | 95.5 |
| Test certificate language code | Without |
| Version_2 | Standard |
| Max. displacement setting | Fix |
| Product family | A10VO |
| Drive power | 18.0 |
| Classification society (external) | No |
| Paint/base coat | without |
| Max. flow | 81.0 |
| Min. flow | 0.0 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Connector for solenoids | Without |
| Internal drain line | No |
| Through drive | Universal through drive |
| Product (axial piston unit) | A10V |
| Version_1 | Standard |
| Working ports | B flan l SAE, S flan l SAE |
| Mounting flange | ISO 3019-1 (SAE), 2 hole |
| Min. displacement | 0.0 |
| Size (displacement) | 45 |
| Max. displacement | 45.0 |
| Weight | 32.6 |
Table of values
|
Size |
45 | 71 | 100 | 140 | 180 | |||
|
Displacement |
Vg max |
cm³ |
45 | 71.1 | 100 | 140 | 180 | |
|
Nominal pressure |
pnom |
bar |
280 | 280 | 280 | 280 | 280 | |
|
Maximum pressure |
pmax |
bar |
350 | 350 | 350 | 350 | 350 | |
|
Maximum speed 1) |
at Vg max |
nnom |
rpm |
3000 | 2550 | 2300 | 2200 | 1800 |
|
Flow |
at Vg max and nnom |
qV nom |
l/min |
135 | 181 | 230 | 308 | 324 |
|
Power |
at qV nom and pnom |
P |
kW |
63 | 85 | 107 | 144 | 151 |
|
Torque |
at Vg max and pnom |
M |
Nm |
200 | 317 | 446 | 624 | 802 |
|
Weight (approx.) |
m |
kg |
25.8 | 40.4 | 56.4 | 70.5 | 75.2 | |
| 1) | These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt |
