BOSCH REXROTH
R978017179

$899.67 USD

BOSCH REXROTH
Material:R978017179
Model:ZDR10VP4-3X/200YMV/12

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

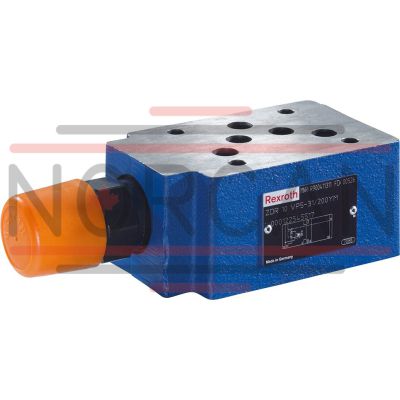

The Bosch Rexroth ZDR 10 VP4-3X/200YMV/12 (R978017179) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predefined setting value. This pilot-operated pressure reducing valve features a spool valve with a rotary knob for mechanical actuation. It is characterized by its ability to maintain consistent pressure regulation in channel P to P, ensuring optimal performance in hydraulic systems. The ZDR 10 VP4-3X/200YMV/12 has a maximum operating pressure of 315 bar and can accommodate a maximum flow rate of 30 l/min. The valve comes in size 10 and conforms to the ISO 4401 porting pattern, making it compatible with standard sandwich plate connections. With its CETOP D03 interface, it offers ease of integration into various hydraulic circuits. This model is equipped with FKM seals, rendering it suitable for use with an array of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. The unit's robust design includes optional features such as a check valve for channels A and B and a pressure gauge connection for monitoring secondary pressure. With numerous potential adjustment types available—such as rotary knob variations (standard or lockable with scale), sleeve with hexagon and protective cap—the Bosch Rexroth ZDR 10 VP4-3X/200YMV/12 provides flexibility to meet specific application requirements while ensuring precise control over system pressures. Its weight of approximately 1.8 kg allows for easy handling during installation or maintenance procedures. Overall, the Bosch Rexroth ZDR 10 VP4-3X/200YMV/12 stands out as an adaptable and efficient solution for controlling secondary pressures within a wide range of industrial hydraulic applications.

Size 10, P2 → P1, mechanical

Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.

Unpacked Weight: 2.300 kg

Pressure valves of type ZDR 10 V are pilot-operated pressure reducing valves in sandwich plate design. They are used for reducing a system pressure.

The pressure valves basically consist of pilot control valve (1) and housing (2). The secondary pressure is set via the adjustment type (4).

Pressure reduction in channel P➀ ("P")

In initial position, the valves are open. Hydraulic fluid can flow from channel P➁ to channel P➀ without restrictions.

The pressure in channel P➀ acts simultaneously at the main spool (6), via the bore (5) at the spring-loaded inside of the main spool (6) and via the nozzle (9) on the pilot poppet (8).

If the pressure in channel P➁ exceeds the value set at the compression spring (7), the pilot poppet (8) opens.

Hydraulic fluid flows from the spring-loaded inside of the main spool (6) via the nozzle (9) and the pilot poppet (8) into the spring chamber (10). The main spool (6) assumes its control position and keeps the value in channel P➀ set at the compression spring (7) constant. The pilot oil return from the spring chamber (10) is realized via port TA.

Pressure reduction in channel A➁ and B➁ ("A" and "B")

For free return flow from channel A➁ to A➀ / B➁ to B➀ , a check valve can be optionally installed (not possible with version "P").

A pressure gauge connection (3) enables control of the secondary pressure.

Type ZDR 10 VP5–3X/.YM…

technical illustration-R978017179-Size 10, P2 → P1, mechanical

➀	component side
➁	plate side

Spool valve
Pilot-operated
Pressure rating 200 bar
Rotary knob
Maximum flow 100 l/min
Maximum operating pressure 315 bar
Size 10
Component series 3X

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	P2 → P1
Max. pressure	315
Productgroup ID	9,10,11,12,13,14
Number of ports	5
Type of actuation	with mechanical actuation
Size	10
Max. flow	100
Type of connection	Sandwich plate
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D05
Size_CETOP	D05
Connection diagram	ISO 4401-05-04-0-05
Number of switching positions	2
Weight	2.300
Seals	FKM
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR

01	02	03	04	05	06		07		08	09	10	11	12	13
Z	DR	10	V			–	3X	/		Y				*

01	Sandwich plate valve	Z
02	3-way pressure reducing valve	DR
03	Size 10	10
04	Pilot-operated	V
Pressure reduction
05	In channel A2	A
	In channel B2	B
	In channel P1	P
Adjustment type
06	Rotary knob	4
	Sleeve with hexagon and protective cap	5
	Lockable rotary knob with scale	6 1)
	Rotary knob with scale	7
07	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Secondary pressure
08	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 315 bar	315
09	Internal pilot oil supply, external pilot oil return	Y
10	With check valve (only versions "A" and "B")	no code
10	Without check valve	M
Seal material
11	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Connection thread
12	Pipe thread according to ISO 228/1	no code
12	SAE thread	12
13	Further details in the plain text	*

	1) H-key with material no. R900008158 is included in the scope of delivery

Notice! Preferred types and standard units are specified in the EPS (standard price list).

general

Size			10
Weight (approx.)	Version "A"	kg	2.3
	Version "P"	kg	2.3
	Version "B"	kg	2.7
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80
Storage temperature range	NBR seals	°C	-30 ... +80
Storage temperature range	FKM seals	°C	-20 ... +80

hydraulic

Size			10
Maximum set pressure		bar	50 100 200 315
Maximum inlet pressure	Port A①	bar	315
	Port B①	bar	315
	Port P②	bar	315
Maximum secondary pressure	Port A②	bar	315
	Port B②	bar	315
	Port P①	bar	315
Maximum counter pressure	Port TA	bar	160
Maximum counter pressure	Port TB	bar	160
Maximum flow		l/min	100
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils		HL,HLP	NBR, FKM	DIN 51524
Bio-degradable	Insoluble in water	HETG	NBR, FKM	VDMA 24568
	Insoluble in water	HEES	FKM	VDMA 24568
	Soluble in water	HEPG	FKM	VDMA 24568
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! Flame-resistant – containing water: Maximum pressure differential per control edge 210 bar210 bar, otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 30 to 100 % Maximum hydraulic fluid temperature 60 °C

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

pA-qV characteristic curves

pA-qV characteristic curves (up to 50 bar)

Δpmin-qV characteristic curves

Δp-qV characteristic curves

qV St-qV characteristic curves at Δp (pE – pA)

➀	component side
➁	plate side

Pressure reduction in channel A➁ (“A”)

Pressure reduction in channel B➁ (“B”)

Pressure reduction in channel A➁ (“A…M”)

Pressure reduction in channel B➁ (“B…M”)

Pressure reduction in channel P➀ (“P…M”)

Notice!

Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.

Versions "A" and "P"

Dimensions in mm

➀	plate side – Porting pattern according to ISO 4401-05-04-0-05
➁	component side – Porting pattern according to ISO 4401-05-04-0-05
1	Name plate
2	Adjustment type "4"
3	Adjustment type "5"
4	Adjustment type "6"
5	Adjustment type "7"
6	Dimensions required to remove the key
7	Valve mounting bores
8	Lock nut SW24
9	Hexagon SW10
10	Identical seal rings for ports A➁, B➁, P➁, TA➁, TB➁ (plate side)
11	Pressure gauge connection G1/8 ; 8.5 deep; internal hexagon SW5
12	Hexagon SW30, tightening torque MA = 50 Nm

Valve mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L

Friction coefficient µtotal = 0.09 to 0.14,

Tightening torque MA = 12 Nm ± 10 %

Notices!

Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. Bored for port X and Y (e. G. for pilot-operated directional valve NG10), version SO30 is applicable! The dimensions are nominal dimensions which are subject to tolerances.

Version "B"
