The Bosch Rexroth VT-SR11-1X/0/EFF00475 (R978052291) is a sophisticated valve amplifier designed for precise hydraulic control applications. This component operates with a push-pull output stage using bipolar transistors, ensuring reliable and efficient signal processing for the control of proportional valves. Its enable circuit relay, indicated by an illuminated LED on the front plate, allows for easy monitoring and management of the system's operational status. Equipped with an I controller and an integrated dither signal generator, the VT-SR11-1X/0/EFF00475 ensures smooth valve movements and reduced system noise. The amplitude of the dither signal can be adjusted to suit specific application requirements. The unit also features a PD controller that manages the prestage current command value, while real-time current feedback is visible through an instrument display on the front panel. The device includes an oscillatordemodulator for accurate sensing of the control spool position, designed as a pluggable board to facilitate adaptation to various valve types. Additionally, it offers a zero-point adjustment accessible from the front plate and requires a symmetric operating voltage UB with reverse polarity protection. For applications requiring more complex control strategies, there is an optional PID controller with adjustable P and D shares directly from the front plate. This advanced feature allows for superimposition of additional control loops such as drive control. The PID fitting is customized per customer specifications and includes a backup relay capable of handling up to 250V and 10A loads. The Bosch Rexroth VT-SR11-1X/0/EFF00475 is formatted in Eurocard size for analog systems and is compatible with WRDX series valves. It stands out for its versatility in controlling valve flow rates and main spool positions through precise input signals, making it suitable for demanding industrial hydraulic systems that require high levels of accuracy and reliability.

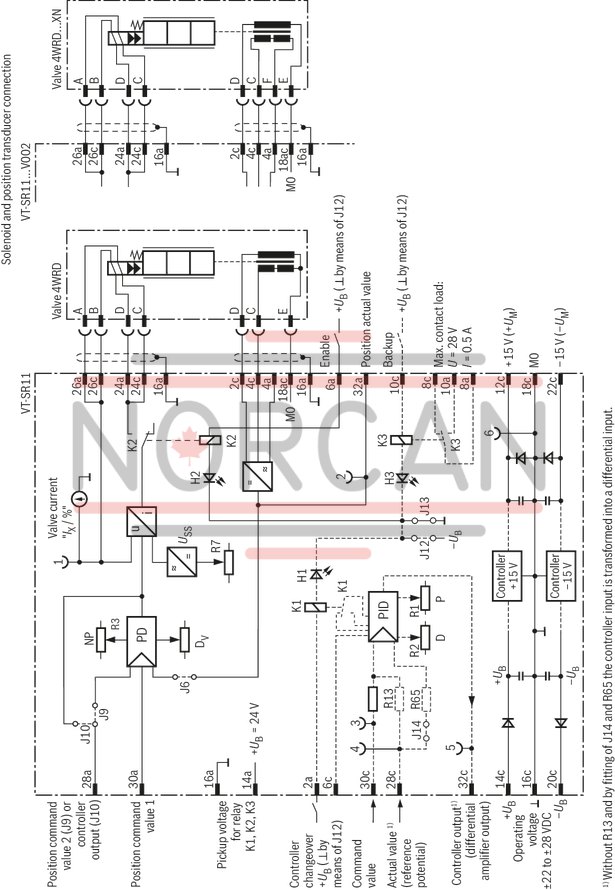

The valve amplifiers operate with a push-pull output stage with bipolar transistors. The output of this output stage can be connected or disconnected by means of an enable circuit (relay K2). The enable is indicated by the LED "H2" on the front plate being illuminated. The switching voltage of all relays is defined by means of jumpers J12 and J13 to either 0 V or +UB (factory +UB).
The output stage consists of an I controller with connected dither signal generator. The amplitude of the dither signal is set by means of R7. The pre-stage (current command value) is controlled via a PD controller. The actual current value returned is simultaneously indicated by the instrument on the front plate.
The oscillator/demodulator senses the control spool position. It is designed as pluggable board the parameters of which are adapted to the respective valve type.
The PD controller is supplied the position command value and the position command value and the actual position value with the D share of the controller only affecting the actual value (velocity feedback).
The zero point can be set via R3 (NP) from the front plate.
The required symmetric operating voltage +UB is protected against reversed polarity. If the board is not equipped with any voltage regulators for supply of the controller and position transducer electronics, an additional stabilized auxiliary voltage ±UM is required. The auxiliary voltage port is protected against reversed polarity up to a maximum current of 1 A.
As an option, the amplifier can be equipped with a PID controller (D share only affects the actual value) with a switchable PI share and a backup relay with potential-free changeover contact. This controller can be used to superimpose a further control loop (e.g. for drive control). The P and D share can be set at the front plate. The controller switching status is indicated by the LED "H1", the relay at LED "H3" (LEDs illuminated if relays are applied). The PID controller fitting is customer-specific and therefore has to be specified in the order in plain text. These amplifiers receive a special type designation upon delivery. The backup relay is loadable up to 28 V and 0.5 A.
|
01 |
Valve amplifier for servo valves with electrical position feedback |
VT-SR11 |
|
02 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
03 |
Without ±15 V voltage regulator |
0 |
|
With ±15 V voltage regulator |
1 |
|
|
04 |
Version: standard |
No code |
|
For valves: 4WRD…XN |
V002 |
|
|
05 |
For valves: 4WRD 10-5X |
4WRD10-5X |
|
For valves: 4WRD 16-5X |
4WRD16-5X |
|
|
For valves: 4WRD 25-5X |
4WRD25-5X |
|
|
For valves: 4WRD 32-5X |
4WRD32-5X |
|
|
For valves: 4WRD 52-5X |
4WRD52-5X |
|
|
06 |
Further details in the plain text |
* |
|
01 |
02 |
03 |
04 |
05 |
06 |
||||
|
VT-SR11 |
‒ |
1X |
/ |
/ |
/ |
* |
General
|
Component series |
1X | |
|
Type of electronics |
Analog | |
|
Design |
Euro-card |
Voltage supply
|
Operating voltage |
with integrated voltage regulator |
UB |
V |
± 24 | |
|
Upper limit value |
UB(t)max |
V |
± 28 | ||
|
Lower limit value |
UB(t)min |
V |
± 22 | ||
|
without integrated voltage regulator |
UB; UM |
V |
±24; ±15.0 | ||
|
Upper limit value |
UB(t)max; UM(t)max |
V |
±28; ±15.2 | ||
|
Lower limit value |
UB(t)min; UM(t)min |
V |
±22, ±14.8 | ||
|
Current consumption |
max. |
Imax |
V |
0.15 A | |
Analog inputs
|
Command value |
Voltage |
grounded on one side, first input 1) |
Ue |
V |
0 … ±10 |
|
grounded on one side, second input 2) |
Ue |
V |
0 … ±10 | ||
|
Actual position value 1) |
Voltage |
Ue |
V |
0 … ±10 | |
| 1) | RE = 50 kΩ |
| 2) | RE = 50 kΩ, J9 gesteckt |
Digital inputs
|
Enable 1) |
On (active) |
Ue |
V |
+24 (with J13); 0 (with J12) |
|
Controller change-over 1) |
Ue |
V |
+24 (with J13); 0 (with J12) | |
|
Backup relay 1) |
Ue |
V |
+24 (with J13); 0 (with J12) | |
| 1) | RE = 700 Ω (relay) |
Analog outputs
|
Valve flow command value |
Voltage |
UO |
±10 (-10 V ≙ +100 mA), J10 plugged, port 28a |
Solenoid outputs
|
Solenoid current |
max. |
Imax |
mA |
60 |
|
Dither signal |
f |
Hz |
470 ±5 % | |
Position transducer
|
Oscillator frequency |
f |
kHz |
5 |
Other information
|
Relay |
Pickup voltage |
V |
+24 (UB) | |
|
Nominal voltage |
U |
V |
26 | |
|
Response voltage |
U |
V |
13 | |
|
Step-back voltage |
U |
V |
1.3 ... 6.5 | |
|
Switching time |
t |
ms |
4 | |
|
Coil resistance at 25 °C |
R |
Ω |
700 | |
|
Contact load |
I |
A |
0.5 | |
|
Reference voltage |
Potentiometer supply |
U |
V |
±15 ±2 % (Imax = 150 mA) |
|
Anschlussart |
32-pole male multipoint connector, DIN 41612, design D | |||
|
Ambient temperature range |
ϑ |
°C |
0 … 50 | |
|
Storage temperature range |
ϑ |
°C |
-20 … 70 | |
|
Weight |
m |
kg |
0.3 | |
For applications outside these parameters, please consult us!
The amplifier card may only be unplugged and plugged when de-energized. Command values may only be switched via relays with gold-plated contacts (low voltage, low currents). Card relays may only be switched (enable, controller change-over, reserve) using contacts with a load capacity of approx. 40 V; 50 mA. Always shield command and actual value cables; connect shielding to ground (⊥) on the card-side, open at one side. Do not lay signal lines close to power lines.
Recommendation:
Also shield the solenoid conductors (to ⊥ on one side). Up to a length of 50 m, use cable type LiYCY 1.5 mm2, for longer lengths please ask.
Information on V002 variant::
The project planning information in data sheet 29094-XN-B2 must be complied with.
