HYDRAFORCE
4000285
- HYDRAFORCE
- Material:4000285

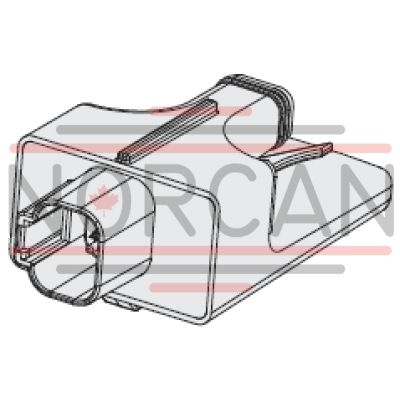

- Model:EVDR-0101A CONFIGURATION CABLE
- Summary:Plug-in style, single output valve driver, general purpose
Due to extremely high demand, please call 877-366-7226 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce CONFIGURATION CABLE USB-TTL FOR EXDR-0101A (4000285) is a specialized accessory designed for use with the Hydraforce EXDR-0101A valve driver, a microprocessor-based controller intended for hydraulic proportional valve applications. This configuration cable facilitates the connection between the valve driver and a PC, enabling users to configure and customize the driver settings via the HFImpulse software. This software tool is crucial for setting up the metering profile of the valve according to specific application requirements, whether they require a straight-line or multi-sloped output. The cable supports USB to TTL serial communication, ensuring reliable data transfer between devices. It is essential for users who need to fine-tune their hydraulic systems for optimal performance and precision in controlling fluid power. The ability to adjust settings and profiles through a user-friendly interface on HFImpulse makes it an invaluable tool in various hydraulic applications, ranging from industrial machinery to mobile equipment. Moreover, this configuration cable is not just about connectivity; it plays a pivotal role in diagnosing system issues. It enables access to built-in diagnostics within the EXDR-0101A driver that can detect faults such as short circuits or signal disruptions, thereby allowing for immediate troubleshooting and maintenance. This ensures that hydraulic systems remain operational with minimal downtime, enhancing overall productivity and safety. The LED output indicator on the driver also aids in visual diagnostics during setup or operation adjustments. Overall, the Hydraforce CONFIGURATION CABLE USB-TTL FOR EXDR-0101A is an essential component for technicians and engineers looking to leverage advanced control over hydraulic systems through precise configuration and real-time diagnostics.
The Hydraforce CONFIGURATION CABLE USB-TTL FOR EXDR-0101A (4000285) is a specialized accessory designed for use with the Hydraforce EXDR-0101A valve driver, a microprocessor-based controller intended for hydraulic proportional valve applications. This configuration cable facilitates the connection between the valve driver and a PC, enabling users to configure and customize the driver settings via the HFImpulse software. This software tool is crucial for setting up the metering profile of the valve according to specific application requirements, whether they require a straight-line or multi-sloped output. The cable supports USB to TTL serial communication, ensuring reliable data transfer between devices. It is essential for users who need to fine-tune their hydraulic systems for optimal performance and precision in controlling fluid power. The ability to adjust settings and profiles through a user-friendly interface on HFImpulse makes it an invaluable tool in various hydraulic applications, ranging from industrial machinery to mobile equipment. Moreover, this configuration cable is not just about connectivity; it plays a pivotal role in diagnosing system issues. It enables access to built-in diagnostics within the EXDR-0101A driver that can detect faults such as short circuits or signal disruptions, thereby allowing for immediate troubleshooting and maintenance. This ensures that hydraulic systems remain operational with minimal downtime, enhancing overall productivity and safety. The LED output indicator on the driver also aids in visual diagnostics during setup or operation adjustments. Overall, the Hydraforce CONFIGURATION CABLE USB-TTL FOR EXDR-0101A is an essential component for technicians and engineers looking to leverage advanced control over hydraulic systems through precise configuration and real-time diagnostics.
| Ratings | Electrical Parameters Power requirements: 9 to 32 Vdc Output current: 50 to 2000 mA Continuous 3000 mA For one sec. Processor and Memory Processor: ARM 32-bit Cortex™-M0 CPU, 48 MHz Flash memory: 32 kB RAM: 4 kB Properties Mating connectors: Deutsch DT06-4S Input DT04-2P Output Output indicator: Red LED Environmental rating: IP67 Unit weight: 0.079 kg (0.175 lb) without connectors |
| Io | Number of inputs:
1 Number of outputs: 1 Control Inputs - Analog Voltage: 0 to 5 Vdc 0 to 10 Vdc Current: 0 to 20 mA 4 to 20 mA Resistive: 0 to 6000 Ohm Temperature: ERT 120 (HydraForce temperature sensor) Control Inputs - Digital Switch: Switch to battery Switch to open Switch to ground PWM: 0 to 100% 50 to 4000 Hz Frequency: 20 to 10 000 Hz Output Current control: 50 to 2000 mA PWM control: 0 to 100% Duty cycle PWM frequency range: 40 to 400 Hz |
| Configuration Example |  |
Single Valve Driver Model EVDR-0101A: Part No. 4204800 (NOTE: If purchasing the EGDR-0101A for the first time, we suggest purchasing both the USB-TTL programming adapter and the test harness) Configuration Software for EVDR-0101A — HF-Impulse: Free download from www.hydraforce.com/electronics. Mating Connector Kit — DT06-4S: Part No. 4001953 Mating Connector Kit — DT04-2P: Part No. 4001958 (For remote installation) USB-TTL Programming Adapter: Part No. 4000285 Test Harness: Part No. 4000286 (For testing and bench operation) Temperature Sensor — ERT 120: Part No. 4206200 Mating Connector Kit for ERT 120 Temperature Sensor — Deutsch Model DTM06-2S: Part No. 4001970
