HYDRAFORCE
5006305
- HYDRAFORCE
- Material:5006305
- Model:SV08-33-0-N-00 W/ 7004406 NUT
- Summary:SOLENOID CARTRIDGE VALVE 3 WAY, 2 POSITION
Due to extremely high demand, please call 877-366-7226 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

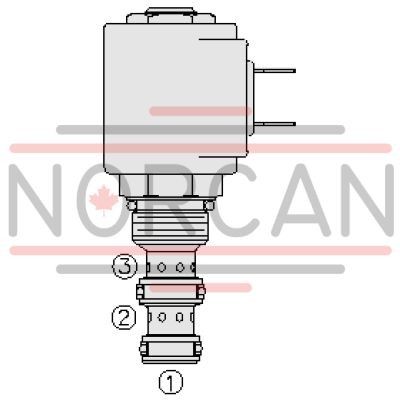

The Hydraforce SV08-33-0-N-00 (5006305) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic directional valve designed for compact and efficient hydraulic system control. The valve operates by allowing flow from port 3 to port 1 when de-energized and shifts to allow flow from port 2 to port 1 when energized, while blocking the flow out of port 3. This functionality makes it suitable for applications requiring precise control over fluid direction and flow in hydraulic systems. The SV08-33-0-N-00 features a continuous-duty rated coil and a hardened precision spool and cage that ensure durability and longevity under continuous operation. Its efficient wet-armature construction along with optional coil voltages and terminations provide versatility for different electrical systems. The unitized, molded coil design enhances reliability while the manual override option adds convenience during maintenance or emergency conditions. This valve is also characterized by its adaptability to various environmental conditions, thanks to optional waterproof E-Coils that are rated up to IP69K. It can handle a maximum operating pressure of 207 bar (3000 psi), with a proof pressure of 241 bar (3500 psi) and a burst pressure of 620 bar (9000 psi). The valve accommodates mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Furthermore, the SV08-33-0-N-00 is designed for easy installation in industry-standard cavities (VC083), ensuring compatibility with existing setups without requiring extensive modifications. Optional accessories such as seal kits (SK083XMM) and housings for various configurations provide additional flexibility and ease of use in multiple applications. This makes it an ideal choice for designers looking for a reliable valve capable of performing in demanding industrial environments where precision fluid control is essential.
The Hydraforce SV08-33-0-N-00 (5006305) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic directional valve designed for compact and efficient hydraulic system control. The valve operates by allowing flow from port 3 to port 1 when de-energized and shifts to allow flow from port 2 to port 1 when energized, while blocking the flow out of port 3. This functionality makes it suitable for applications requiring precise control over fluid direction and flow in hydraulic systems. The SV08-33-0-N-00 features a continuous-duty rated coil and a hardened precision spool and cage that ensure durability and longevity under continuous operation. Its efficient wet-armature construction along with optional coil voltages and terminations provide versatility for different electrical systems. The unitized, molded coil design enhances reliability while the manual override option adds convenience during maintenance or emergency conditions. This valve is also characterized by its adaptability to various environmental conditions, thanks to optional waterproof E-Coils that are rated up to IP69K. It can handle a maximum operating pressure of 207 bar (3000 psi), with a proof pressure of 241 bar (3500 psi) and a burst pressure of 620 bar (9000 psi). The valve accommodates mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Furthermore, the SV08-33-0-N-00 is designed for easy installation in industry-standard cavities (VC083), ensuring compatibility with existing setups without requiring extensive modifications. Optional accessories such as seal kits (SK083XMM) and housings for various configurations provide additional flexibility and ease of use in multiple applications. This makes it an ideal choice for designers looking for a reliable valve capable of performing in demanding industrial environments where precision fluid control is essential.
Unit weight:
0.09 kg (0.20 lb)
Internal wetted surface area:
103 cm² (16 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) For SV08-33 only Burst pressure: 620 bar (9000 psi) For SV08-33 only Flow Ratings Flow rating: See "performance range" (sheet 2) Maximum internal leakage: 82 ml/min (5 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Minimum pull in voltage:
10.2 Vdc 12 Vdc coil |
| Performance |  |
| Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54.2 N-m (40 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-33E-H-J-L E Manual Override E BLANK NONE E M Two Position Override, Red Knurled Knob H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
Coils:
08 size D
coils
08 size E
coils
