HYDRAFORCE
5062000
- HYDRAFORCE
- Material:5062000
- Model:SP16-20-0-N-00 SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 2 PORT, NORMALLY CLOSED
Due to extremely high demand, please call 877-366-7226 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

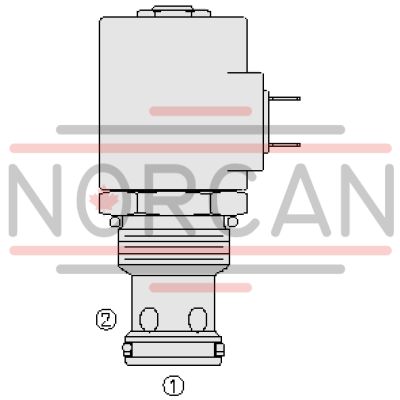

The Hydraforce 5062000 (5062000) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. In its de-energized state, the SP16-20 functions as a check valve that permits flow from port 1 to port 2 while preventing flow from port 2 to port 1. When energized, the poppet lifts to open the flow path from port 2 to port 1; however, in this mode, the flow from port 1 to port 2 becomes severely restricted. The valve features a continuous-duty rated coil and an efficient wet-armature construction, ensuring reliable performance under demanding conditions. It also offers manual override options and optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, the product is designed with an industry-common cavity for easy integration into existing systems.
The Hydraforce 5062000 (5062000) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. In its de-energized state, the SP16-20 functions as a check valve that permits flow from port 1 to port 2 while preventing flow from port 2 to port 1. When energized, the poppet lifts to open the flow path from port 2 to port 1; however, in this mode, the flow from port 1 to port 2 becomes severely restricted. The valve features a continuous-duty rated coil and an efficient wet-armature construction, ensuring reliable performance under demanding conditions. It also offers manual override options and optional waterproof E-Coils that are rated up to IP69K for enhanced durability in harsh environments. Additionally, the product is designed with an industry-common cavity for easy integration into existing systems.
Unit weight:
0.32 kg (0.71 lb)
Internal wetted surface area:
221 cm² (34.2 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Per NFPA T2.6.1 R2-2000 using 99.9 assurance and 90% verification levels Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Flow Ratings Flow rating: 227.4 lpm (60 gpm) Based on 34.4 bar (500 psi)pressure drop (see performance graphs) Maximum internal leakage: 5 drops/min At rated pressure Hysteresis per cent: 5 % Maximum up to 60% of imax 10 % Maximum from 60% of imax up to imax Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -35 to 204 °C (-31 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
166 mH Maximum control current: 1.2 A D-coil 12 Vdc Threshold current: 0.4 A D-coil 12 Vdc (see performance graphs) Dither PWM frequency: 100 to 400 Hz |
| Performance |   |
| Installation Specifications | Cavity:
VC16-2 16-size-2-way Cavities Cartridge installation torque: 62.4 to 73.2 N-m (46 to 54 ft-lb) Maximum allowable torque: 169 N-m (125 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP16-20DE-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 6B Aluminum BSPP 3/4" (6) H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK16-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
16-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
