CDABEBN
$37.53 USD
- SUN HYDRAULICS
- Material:CDABEBN
- Model:CDAB-EBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CDABEBN (CDABEBN) is a back-to-back check valve that integrates two simple check valves into one cartridge, effectively connecting the work port with the higher pressure to the signal or common port, with the signal being sensed at port 3. This model is designed for efficient performance and durability, featuring hardened, spherically lapped, guided poppets and a lightly stressed helical spring which together ensure excellent wear characteristics and very low leakage rates. Notably, this valve does not facilitate lowering a signal but will trap a high signal if load pressures decrease. The CDABEBN operates optimally within a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min). It exhibits maximum valve leakage at 110 SUS (24 cSt) of approximately 5 drops/min (0.3 cc/min). The valve's hex size is 7/8 in. (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just .30 lb (.15 kg), it also features Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This cartridge is compatible with T11A cavity series and utilizes Viton seals for enhanced performance under varying conditions. The robust design of this back-to-back check valve makes it suitable for applications where dual check valves are required to manage flow directions efficiently under different pressure conditions without external adjustments for bleeding off signals.
The Sun Hydraulics CDABEBN (CDABEBN) is a back-to-back check valve that integrates two simple check valves into one cartridge, effectively connecting the work port with the higher pressure to the signal or common port, with the signal being sensed at port 3. This model is designed for efficient performance and durability, featuring hardened, spherically lapped, guided poppets and a lightly stressed helical spring which together ensure excellent wear characteristics and very low leakage rates. Notably, this valve does not facilitate lowering a signal but will trap a high signal if load pressures decrease. The CDABEBN operates optimally within a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min). It exhibits maximum valve leakage at 110 SUS (24 cSt) of approximately 5 drops/min (0.3 cc/min). The valve's hex size is 7/8 in. (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just .30 lb (.15 kg), it also features Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This cartridge is compatible with T11A cavity series and utilizes Viton seals for enhanced performance under varying conditions. The robust design of this back-to-back check valve makes it suitable for applications where dual check valves are required to manage flow directions efficiently under different pressure conditions without external adjustments for bleeding off signals.

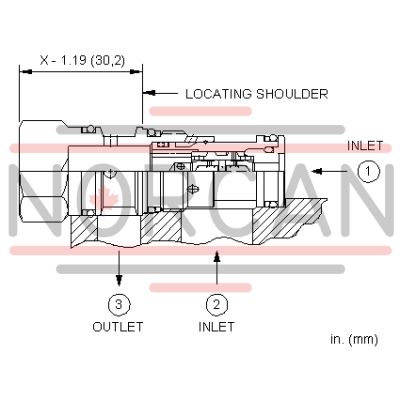

The back-to-back check valve combines two simple check valves into a single cartridge. It connects the work port with the higher pressure to the signal or common port. The signal is sensed at port 3.
- Back-to-back check cartridges feature hardened, spherically lapped, guided poppets and a lightly stressed helical spring that result in excellent wear characteristics and extremely low leakage rates.
- The back-to-back checks do not provide a means of lowering a signal. They will trap a high signal if the load pressures drop to a lower pressure. Some means of bleeding off the signal should be provided.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
