SUN HYDRAULICS
CNBCXAV
$39.52 USD
- SUN HYDRAULICS
- Material:CNBCXAV
- Model:CNBC-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXAV (CNBCXAV) is a sophisticated hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This valve features a unique design that allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, enhancing control over fluid dynamics in hydraulic systems. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. The CNBCXAV is built with Sun Hydraulics' floating style construction, which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design ensures reliable operation and longevity even under demanding conditions. The valve fits into a T-16A cavity and has a maximum capacity of 7.5 gpm or approximately 30 L/min, making it suitable for a wide range of fluid management tasks. With an orifice range between .016 and .062 inches (0.4 to 1.6 mm), this model offers flexibility in application and precise control over fluid flow rates. It features a standard valve hex size of 3/4 inch (19.1 mm) and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), the CNBCXAV is lightweight yet robust, ideal for integrated systems requiring precise hydraulic control without adding significant weight. This model uses Viton seals (part number: 990162006) ensuring excellent resistance to high temperatures and chemical degradation, thereby providing an additional layer of reliability and performance assurance in various hydraulic applications.
The Sun Hydraulics CNBCXAV (CNBCXAV) is a sophisticated hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This valve features a unique design that allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, enhancing control over fluid dynamics in hydraulic systems. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. The CNBCXAV is built with Sun Hydraulics' floating style construction, which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design ensures reliable operation and longevity even under demanding conditions. The valve fits into a T-16A cavity and has a maximum capacity of 7.5 gpm or approximately 30 L/min, making it suitable for a wide range of fluid management tasks. With an orifice range between .016 and .062 inches (0.4 to 1.6 mm), this model offers flexibility in application and precise control over fluid flow rates. It features a standard valve hex size of 3/4 inch (19.1 mm) and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), the CNBCXAV is lightweight yet robust, ideal for integrated systems requiring precise hydraulic control without adding significant weight. This model uses Viton seals (part number: 990162006) ensuring excellent resistance to high temperatures and chemical degradation, thereby providing an additional layer of reliability and performance assurance in various hydraulic applications.

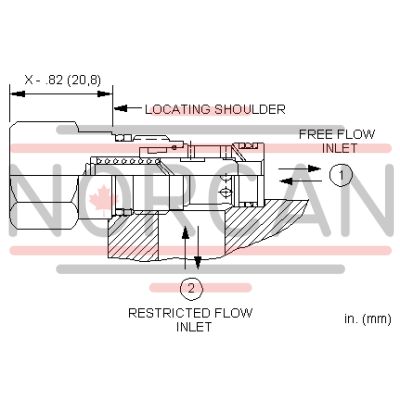

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
