SUN HYDRAULICS
CNBCXBN
$33.06 USD
- SUN HYDRAULICS
- Material:CNBCXBN
- Model:CNBC-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXBN (CNBCXBN) is a high-performance check valve designed for robust hydraulic applications. This valve facilitates free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specific orifice diameter chosen by the customer is clearly stamped on one of the cartridge's hex faces for easy identification. Sun Hydraulics has engineered the CNBCXBN with a floating style construction, enhancing its reliability by minimizing potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures stable and consistent operation under varying conditions. The CNBCXBN valve is housed in a T162A cavity and belongs to the Series 0, supporting a maximum operating pressure of 5000 psi (350 bar) at both ports. It can handle a capacity of up to 7.5 gpm (30 L/min), making it suitable for various hydraulic circuits requiring precise flow control and check functionalities. The orifice range for this model spans from .016 to .062 inches (0.4 to 1.6 mm), providing flexibility in application-specific hydraulic resistance. Additional technical specifications include a valve hex size of 3/4 inches (19.1 mm) and an installation torque requirement between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model weighs approximately .20 lb (0.10 kg), and utilizes Viton seals for enhanced durability and performance under high-pressure conditions. This combination of features makes the CNBCXBN an essential component for systems requiring reliable one-way flow with customizable backflow restriction capabilities.
The Sun Hydraulics CNBCXBN (CNBCXBN) is a high-performance check valve designed for robust hydraulic applications. This valve facilitates free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specific orifice diameter chosen by the customer is clearly stamped on one of the cartridge's hex faces for easy identification. Sun Hydraulics has engineered the CNBCXBN with a floating style construction, enhancing its reliability by minimizing potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures stable and consistent operation under varying conditions. The CNBCXBN valve is housed in a T162A cavity and belongs to the Series 0, supporting a maximum operating pressure of 5000 psi (350 bar) at both ports. It can handle a capacity of up to 7.5 gpm (30 L/min), making it suitable for various hydraulic circuits requiring precise flow control and check functionalities. The orifice range for this model spans from .016 to .062 inches (0.4 to 1.6 mm), providing flexibility in application-specific hydraulic resistance. Additional technical specifications include a valve hex size of 3/4 inches (19.1 mm) and an installation torque requirement between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model weighs approximately .20 lb (0.10 kg), and utilizes Viton seals for enhanced durability and performance under high-pressure conditions. This combination of features makes the CNBCXBN an essential component for systems requiring reliable one-way flow with customizable backflow restriction capabilities.

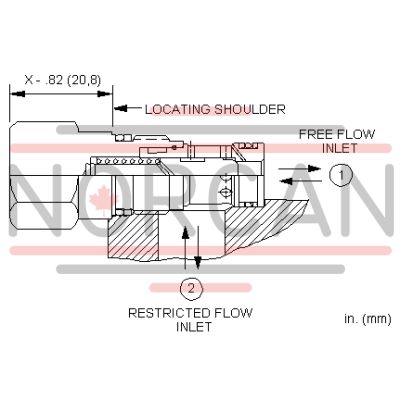

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
