The Sun Hydraulics CNBCXBV (CNBCXBV) is a high-performance, two-port check valve designed for hydraulic systems. This valve allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, ensuring precise control over fluid movement. The specified orifice diameter range is between 0.016 - 0.062 inches (0.4 - 1.6 mm), which can be tailored to meet specific application requirements and is clearly stamped on one of the cartridge's hex faces for easy identification. The CNBCXBV operates under a maximum pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It features Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing the valve's reliability and performance longevity. Designed for easy installation, the CNBCXBV fits into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The valve\u2019s hex size is 3/4 inch (19.1 mm), and it weighs approximately 0.20 lb (0.10 kg). It also supports Viton seals through the seal kit/cartridge number Viton:990162006, ensuring compatibility with a broad range of fluids and environmental conditions. This model's robust design makes it suitable for applications requiring reliable check functionalities with the option for controlled reverse flow, making it an essential component in various hydraulic systems that demand high pressure and precise flow control capabilities.
The Sun Hydraulics CNBCXBV (CNBCXBV) is a high-performance, two-port check valve designed for hydraulic systems. This valve allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, ensuring precise control over fluid movement. The specified orifice diameter range is between 0.016 - 0.062 inches (0.4 - 1.6 mm), which can be tailored to meet specific application requirements and is clearly stamped on one of the cartridge's hex faces for easy identification. The CNBCXBV operates under a maximum pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It features Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing the valve's reliability and performance longevity. Designed for easy installation, the CNBCXBV fits into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The valve\u2019s hex size is 3/4 inch (19.1 mm), and it weighs approximately 0.20 lb (0.10 kg). It also supports Viton seals through the seal kit/cartridge number Viton:990162006, ensuring compatibility with a broad range of fluids and environmental conditions. This model's robust design makes it suitable for applications requiring reliable check functionalities with the option for controlled reverse flow, making it an essential component in various hydraulic systems that demand high pressure and precise flow control capabilities.

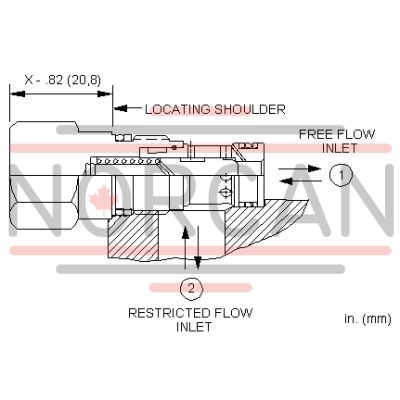

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
